How to invoke Panels ENIP2100 and ENIP2200

Products

• Endevor

Issue/Introduction

You are looking for ENIP2100 and ENIP2200 panels needing to know the steps to invoke these panels.

Cause

Needing clarity on when ENIP2100 & ENIP2200 panels are invoked.

Resolution

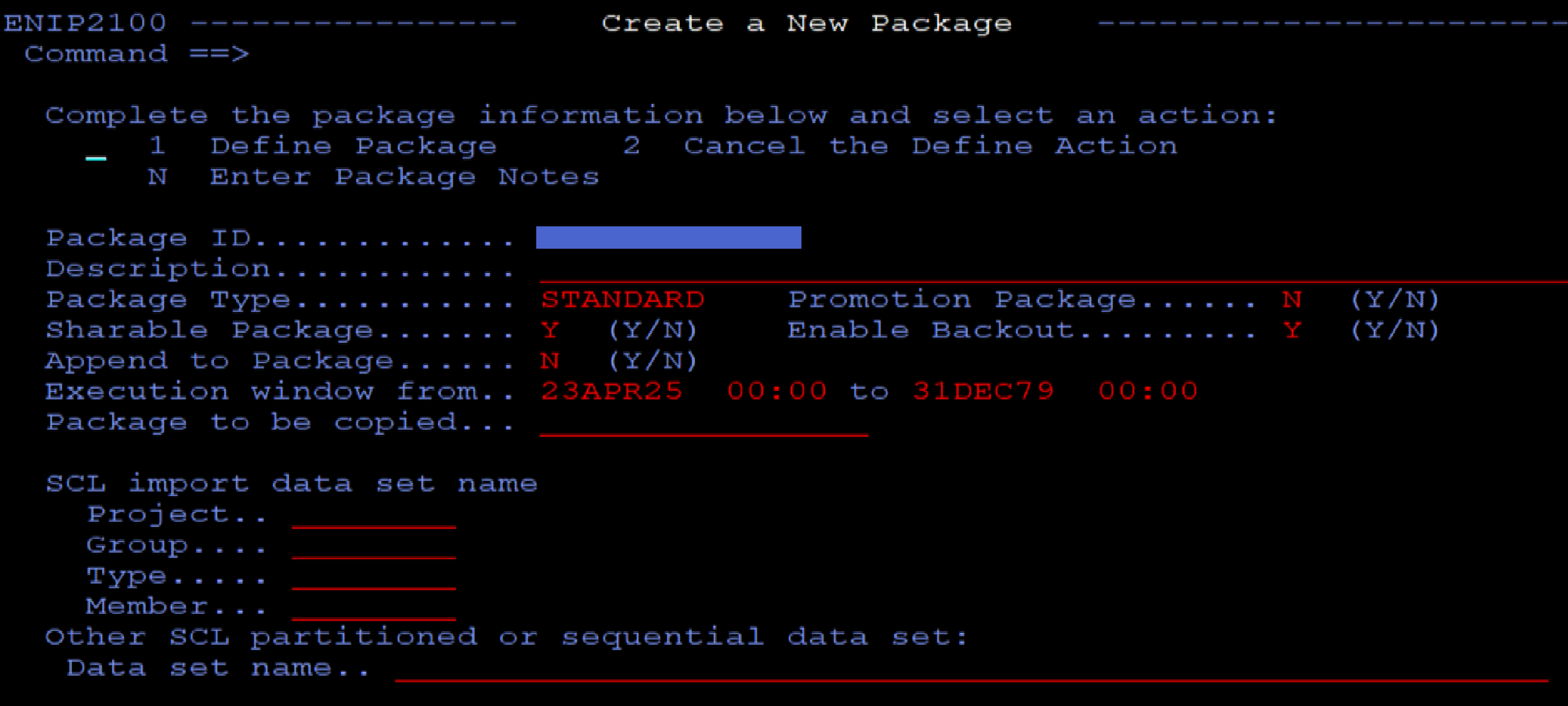

(6) BATCH PACKAGE > enter 1 for Build SCL & dataset details > Enter > on Package Specification Panel enter 1 for Define & Package ID > Enter > ENIP2100 invoked "Create a New Package"

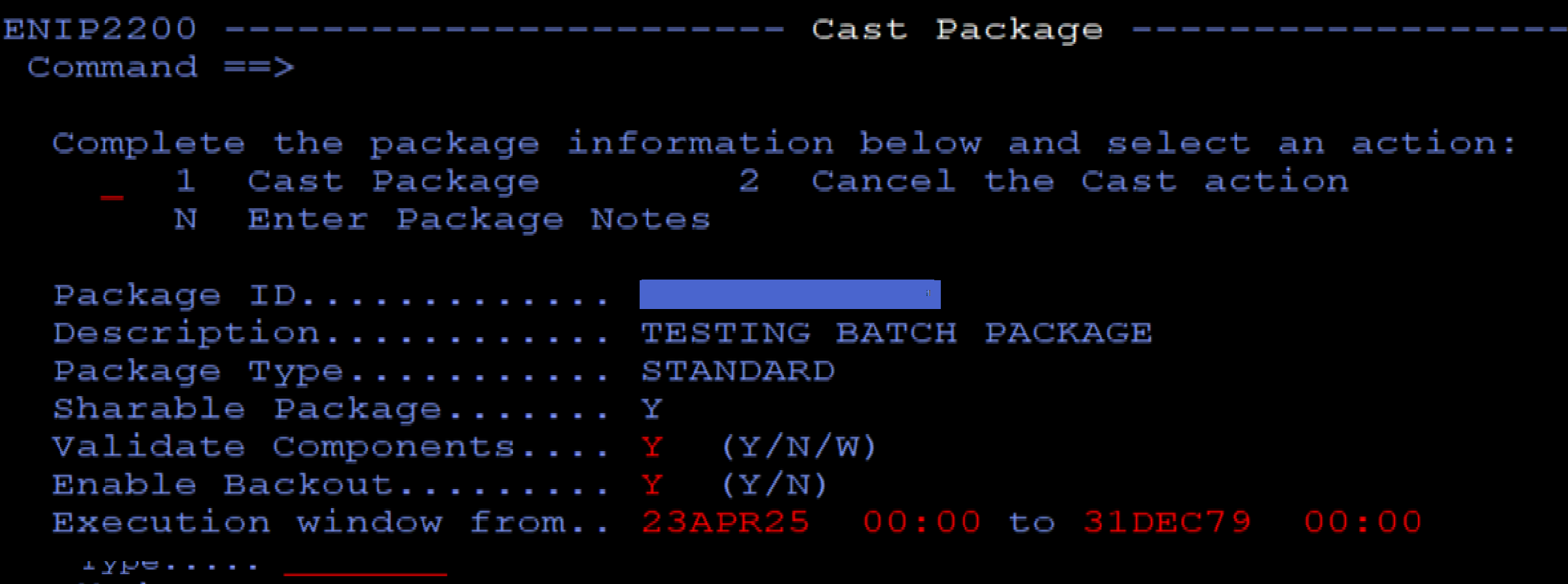

(6) BATCH PACKAGE >  enter 1 for Build SCL & dataset details > Enter > on Package Specification Panel enter 0 for Display List & Package ID > Enter > Put a CA next to the Packaged desired > Enter> ENIP2200 invoked "Cast Package"

Broadcom Learning Site Course Endevor: Perform Package Processing 200 06END20210 Section Cast the Package: Using Batch Processing.

Additional Information

To turn on the Panel ID display on the top left corner of the screen enter 'PANELID' on the command line on any screen. To revert back to the default, repeat the command 'PANELID'.
