Create a threshold profile and associate a schedule

Products

• Network Observability
• CA Performance Management

Issue/Introduction

How can I create a threshold profile and associate a schedule using a REST client

Environment

Dx NetOps Performance Management any version

Resolution

The following is an example done against a DA with https configures

Do a POST to https://<DA>:8582/rest/eventprofilegroups


<EventProfileGroup version="0.0.0">
<Item version="1.0.0">
<Name>Joe</Name>
<Description>Joe</Description>
</Item>
</EventProfileGroup>



• created 335018



Do a POST to https://<DA>:8582/rest/eventrules


<EventRule version="1.0.0">
    <Enabled>1</Enabled>
    <MetricFamily>{http://im.ca.com/normalizer}NormalizedSDNControlTunnelInfo</MetricFamily>
    <Window>720</Window>
    <Duration>300</Duration>
    <AggregateToDevice>0</AggregateToDevice>
    <ClearConditionList>
        <ClearCondition>
            <ClearOperator>LESS_THAN</ClearOperator>
            <ClearValue>25</ClearValue>
        </ClearCondition>
    </ClearConditionList>
    <ViolationConditionList>
        <ViolationCondition>
            <ViolationConditionType>CONSTANT</ViolationConditionType>
            <ViolationPerformanceMetric>PctTimeinDownState</ViolationPerformanceMetric>
            <ViolationOperator>GREATER_THAN</ViolationOperator>
            <ViolationValue>75</ViolationValue>
        </ViolationCondition>
    </ViolationConditionList>
    <Severity>CRITICAL</Severity>
    <Item version="1.0.0">
        <Name>SDN_Control_Tunnel_Time_down_state</Name>
        <Description>THIS IS A TEST-</Description>
    </Item>
</EventRule>

• created 335019



Do a POST to https://<DA>:8582/rest/eventprofiles


<EventProfile version="1.0.0">
<Enabled>1</Enabled>
<EventRuleIDList>
    <EventRuleID>335019</EventRuleID>
</EventRuleIDList>
<OwnerID>1</OwnerID>
<LastModifiedUserID>1</LastModifiedUserID>
<LastModifiedTime>1744193098</LastModifiedTime>
<Item version="1.0.0">
    <Name>SDN_Control_Tunnel_Time-in-up/down_state_Critical</Name>
    <Description>THIS IS A TEST-Monitoring SDN Control Tunnel's up/down status</Description>
</Item>
</EventProfile>

• created  335201



You can relate the profile to a profile group via:

PUT: https://<DA>:8582/rest/eventprofiles/335021/relatesto/eventprofilegroups/335018


.... passing the profile itemid first and the profile group itemid on end



Then I created a schedule:

POST: https://<DA>:8582/rest/eventprofileschedules



<EventProfileSchedule version="1.0.0">
    <InSpecifiedTimes>1</InSpecifiedTimes>
    <TimeZone>UTC</TimeZone>
    <EndTime>1440</EndTime>
    <StartTime>0</StartTime>
    <DaysOfWeekList>
<DaysOfWeek>MON</DaysOfWeek>
    <DaysOfWeek>TUE</DaysOfWeek>
    <DaysOfWeek>WED</DaysOfWeek>
    <DaysOfWeek>THU</DaysOfWeek>
    <DaysOfWeek>FRI</DaysOfWeek>
    </DaysOfWeekList>
    <Enabled>1</Enabled>
    <Item version="1.0.0">
        <Name>SDN_Control_Tunnel_Time-in-up/down_state_Critical</Name>
        <Description>THIS IS A TEST-Monitoring SDN Control Tunnel's up/down status</Description>
    </Item>
</EventProfileSchedule>

• created 335026

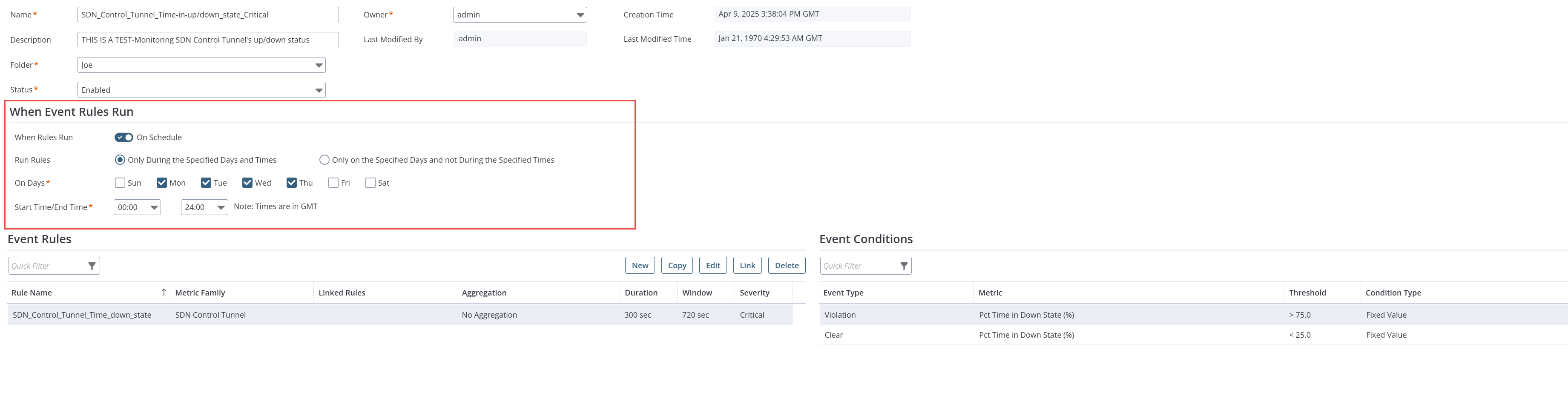

Finally associate the schedule to the event profile:

https://<DA>:8582/rest/eventprofiles/335021

<EventProfile version="2.0.0">
<EventProfileScheduleID>335026</EventProfileScheduleID>
</EventProfile>
