RPO violation error seen for replicated VMs in newly deployed VR environment

Products

• VMware Live Recovery

Issue/Introduction

Symptom:

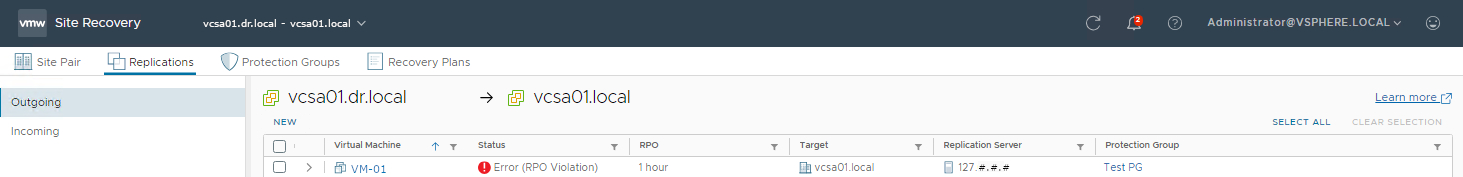

• RPO Violation is seen for the VM after VM is added for replication.



Environment

VMware vSphere Replication 8.x

VMware vSphere Replication 9.x

Cause

• One vCenter can have 1 embedded VR appliance and 9 add-on appliances. If you have two embedded appliance then this issue will occur.
  Refer - Operational limits of vSphere Replication


• Open VAMI webpage (https://<FQDN or IP of VR appliance>:5480) for embedded and addon appliance to validate the difference.

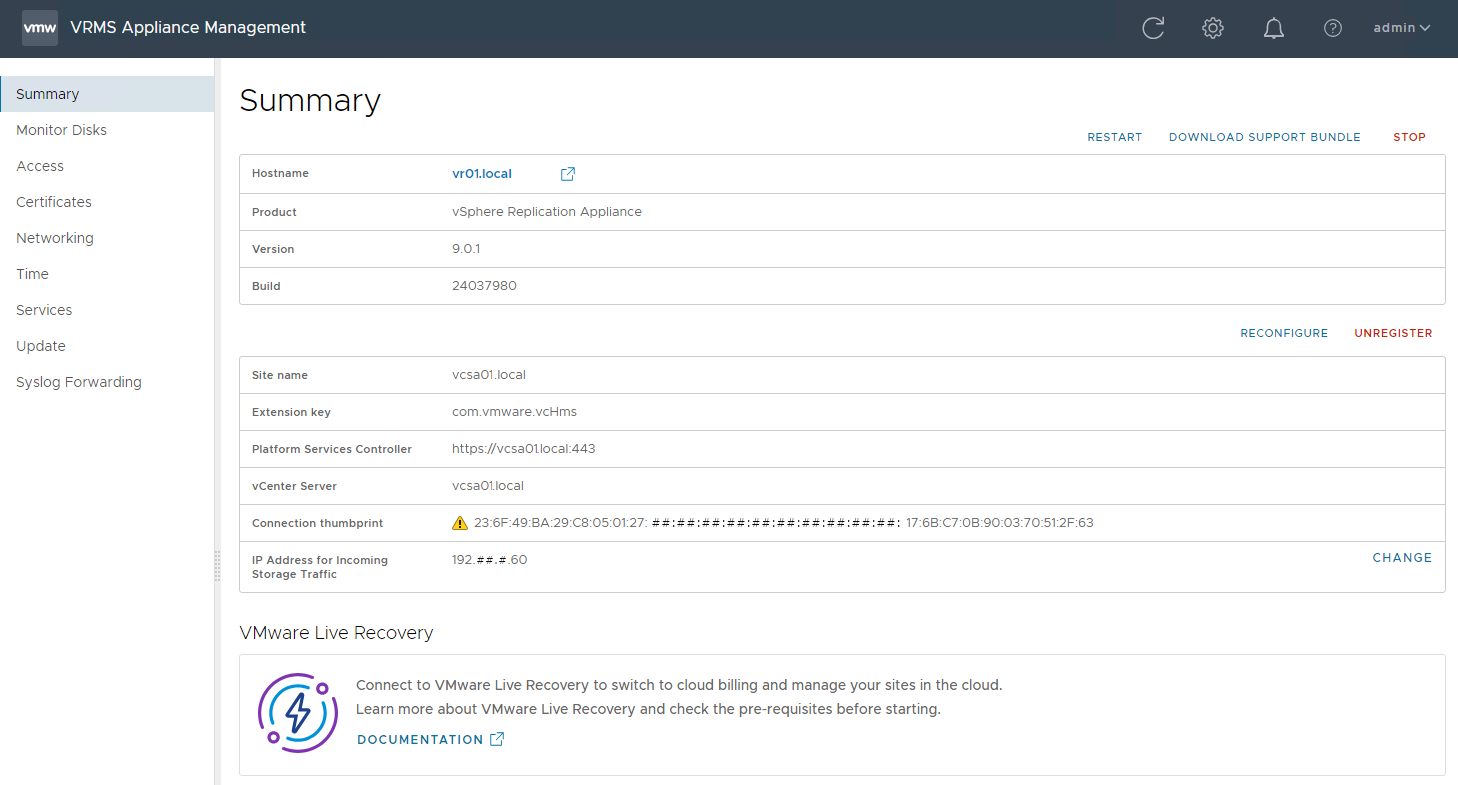

  Embedded VR Appliance

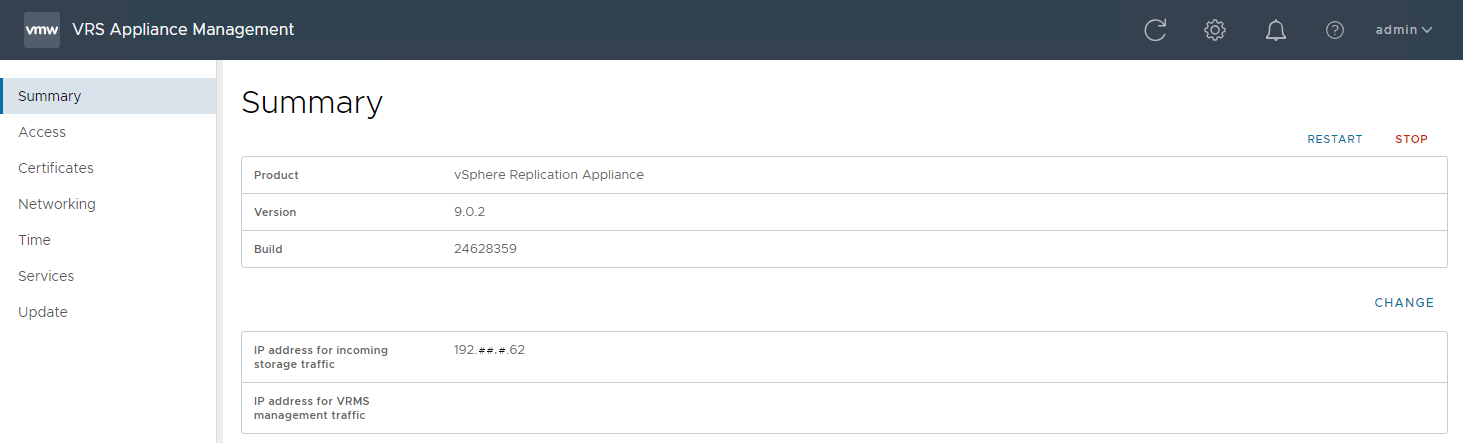

  Add-On VR Appliance






• Login webpage of Embedded and Add-On VR appliance is also different.

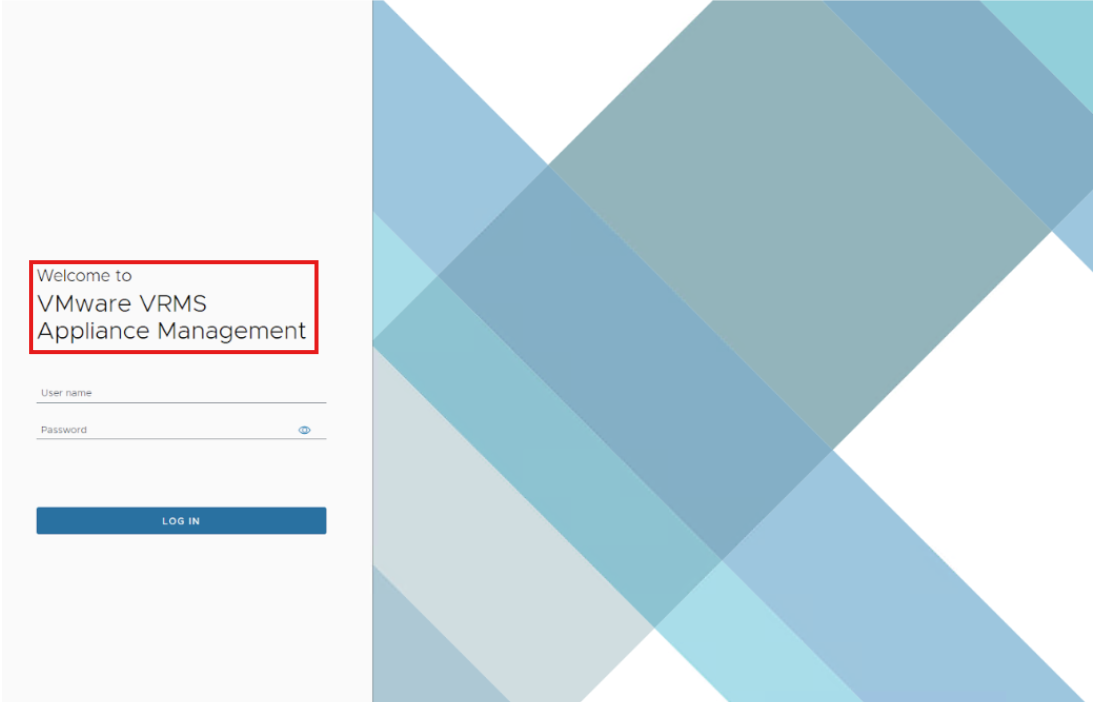

  Embedded VR Appliance (VMware VRMS Appliance Management)

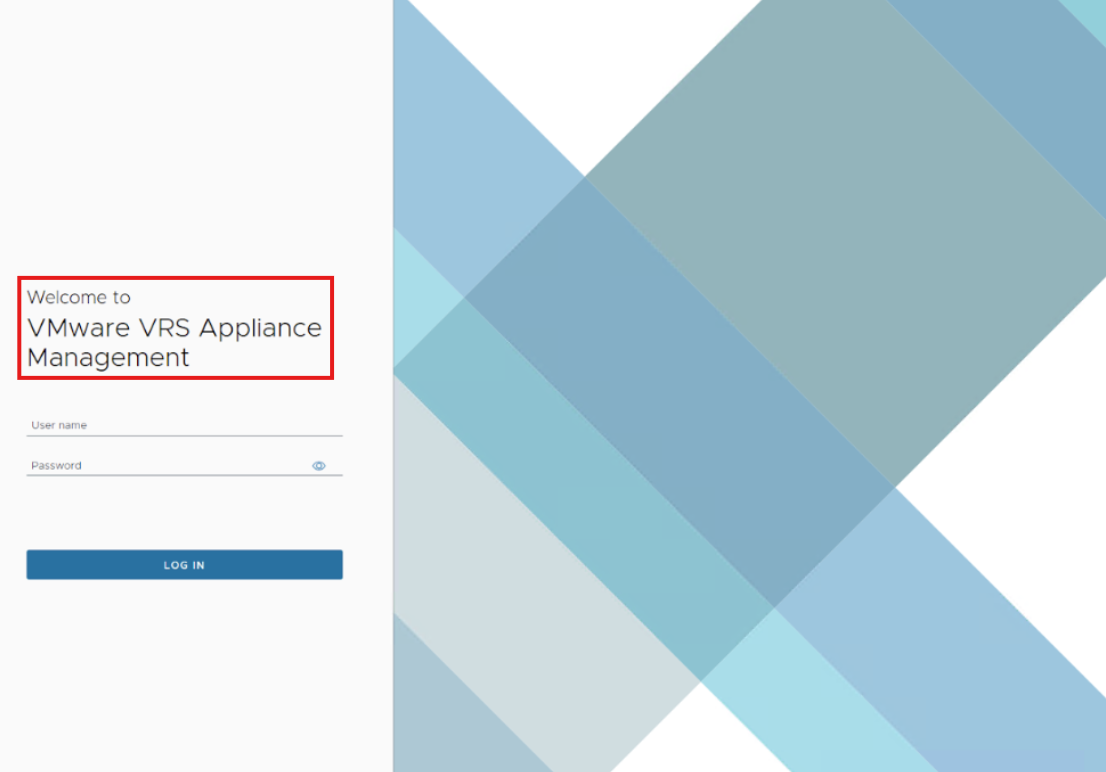

  Add-On VR Appliance (VMware VRS Appliance Management)


  Note: VAMI webpage for both the VR appliances open with VRMS login webpage in this case.

Resolution

• Remove all VMs from replications.


• Remove 1 embedded appliance from each vCenter.


• Reconfigure the remaining embedded appliance.


• Deploy addon appliance using the correct files which mentions Add-On inside the iso.

  Refer - Deploy an Additional vSphere Replication Server

  To compare the difference between files used during deployment for embedded appliance, refer - Deploy the vSphere Replication Virtual Appliance.
