Space consumption of vSphere Replication from vSAN datastore

Products

• VMware Live Recovery

Issue/Introduction

• This article explains how to check the space consumption of vSphere replication from vSAN datastore.
• Site Recovery Manager itself does not directly consume storage space. But, it quantify the space used by SRM-managed components, such as replicated VMs, snapshots, and placeholder VMs.

Environment

Site Recovery Manager

vSphere Replication

VMware vSAN 7.x

Resolution

To view the vSAN datastore capacity information of vSphere Replication from vCenter UI.

Go to:  vCenter UI > vSAN Cluster -> Monitor -> Capacity

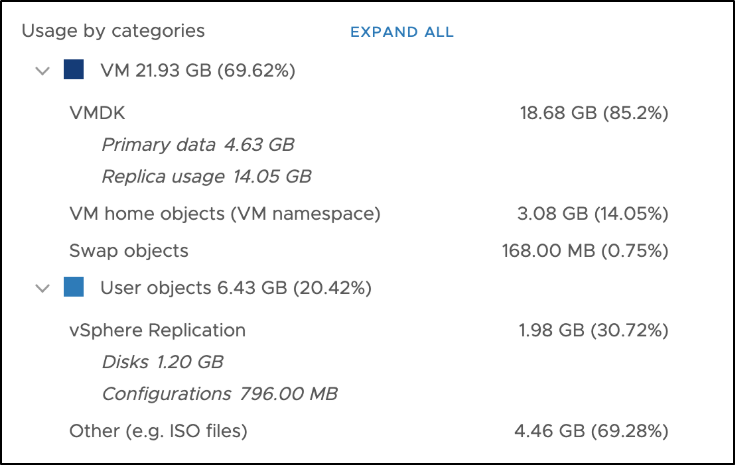

Example:

Additional Information

vSAN 7 Capacity Reporting Enhancements
