vSAN Maintenance Mode stuck at 99% due to stalled resyncing objects and skyline health reports error: "Object Health" - VMware vSAN

Products

• VMware vSAN

Issue/Introduction

Symptoms :

• vSAN skyline health reports error: "Object Health".

• When attempting to place a vSAN host into Maintenance Mode (MM) with the Ensure Accessibility option, the task may become indefinitely stuck at 99%.

• vSphere Client reports objects in Reduced Availability or Inaccessible states.

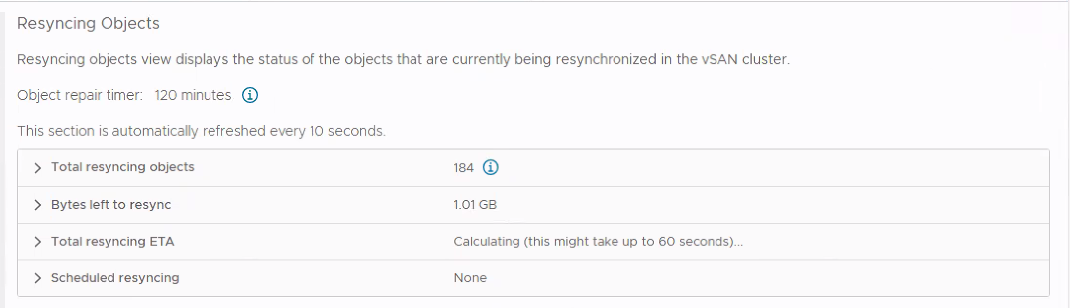

• The Resyncing Objects monitor shows a static number of objects with an ETA of "Calculating (this might take up to 60 seconds)".



• esxcli vsan debug resync summary get shows a  non-zero number of resyncing objects, but esxcli vsan resync bandwidth get reports Rate: 0Mbps.

  Sample output:

  esxcli vsan debug resync summary get
   Total Number Of Resyncing Objects: 184
   Total Bytes Left To Resync: 1082912768
   Total GB Left To Resync: 1.01

esxcli vsan resync bandwidth get
Rate: 0Mbps

Environment

VMware vSAN 6.x
VMware vSAN 7.x
VMware vSAN 8.x

Cause

The resync task fails to progress because durability components (RAID_D) are stalled in a "Pending Resync" state due to a delta overlap. Although the data is physically healthy, the vSAN object manager remains in a waiting state for a delta resync that is not actively running, preventing the Maintenance Mode pre-checks from completing.

Cause validation:

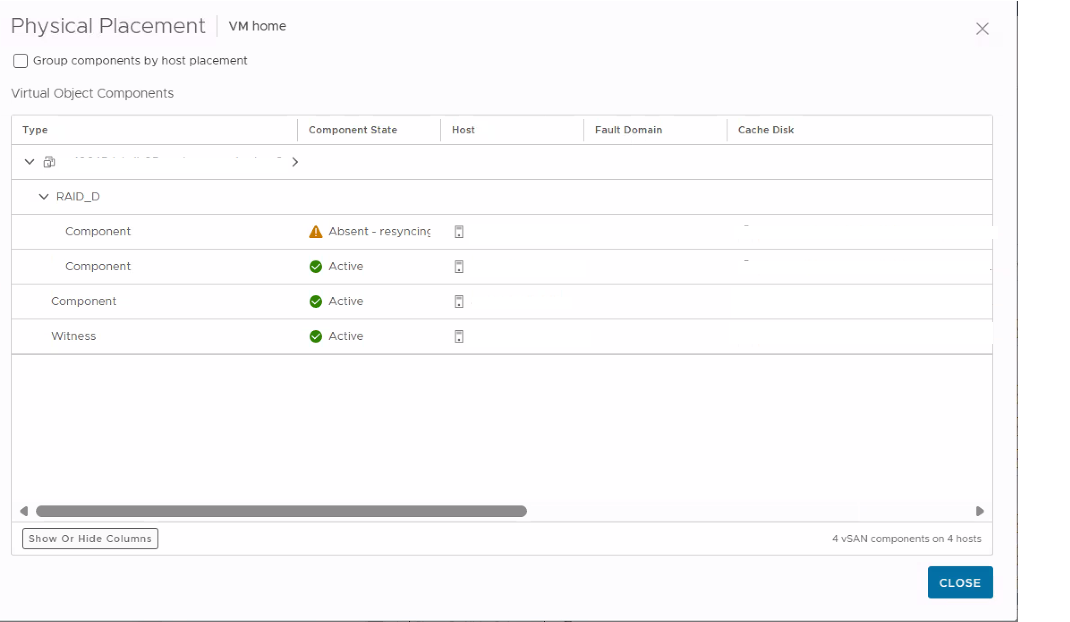

• Navigate to Cluster > Monitor > vSAN > Virtual Objects. Select the checkbox for the inaccessible object or object is reduced availability state and click View Placement Details. The component status will be displayed as "Resynchronizing."



• Run the command "esxcli vsan debug object list" and check the object to confirm that the RAID_D (Durability) component is present.

  Owner: Host-1
   Size: 0.00 GB
   Used: 106.71 GB
   Used 4K Blocks: 105.71 GB
   Policy:
      stripeWidth: 1
      cacheReservation: 0
      proportionalCapacity: 0
      hostFailuresToTolerate: 1
      forceProvisioning: 0
      spbmProfileId: ########-####-####-####-########
      spbmProfileGenerationNumber: 0
      objectVersion: 20
      CSN: 11417
      SCSN: 11417
      spbmProfileName: vSAN Default Storage Policy

     Configuration:

        RAID_1
         RAID_D
            Component: ########-####-####-####-########
              Component State: ABSENT,  CSN: STALE (11405!=11417),  Address Space(B): 107374182400 (100.00GB),  Disk UUID: ########-####-####-####-########,  Disk Name: naa.############:2
              Votes: 1,  Capacity Used(B): 57860423680 (53.89GB),  Physical Capacity Used(B): 57285804032 (53.35GB),  Total 4K Blocks Used(B): 56745713664 (52.85GB),  Host Name: Host-1
            Component: ########-####-####-####-########
              Component State: ACTIVE,  Address Space(B): 107374182400 (100.00GB),  Disk UUID: ########-####-####-####-########,  Disk Name: naa.############:2
              Votes: 1,  Capacity Used(B): 12582912 (0.01GB),  Physical Capacity Used(B): 8388608 (0.01GB),  Total 4K Blocks Used(B): 5070848 (0.00GB),  Host Name: Host-2
         Component: ########-####-####-####-########
           Component State: ABSENT,  CSN: STALE (11414!=11417),  Address Space(B): 107374182400 (100.00GB),  Disk UUID: ########-####-####-####-########,  Disk Name: naa.############:2
           Votes: 1,  Capacity Used(B): 57860423680 (53.89GB),  Physical Capacity Used(B): 57285804032 (53.35GB),  Total 4K Blocks Used(B): 56745713664 (52.85GB),  Host Name: Host-3
      Witness: ########-####-####-####-########
        Component State: ACTIVE,  Address Space(B): 0 (0.00GB),  Disk UUID: ########-####-####-####-########,  Disk Name: naa.############:2
        Votes: 1,  Capacity Used(B): 12582912 (0.01GB),  Physical Capacity Used(B): 4194304 (0.00GB),  Total 4K Blocks Used(B): 4194304 (0.00GB),  Host Name: Host-4

     Type: vdisk
   Path: /vmfs/volumes/vsan:########-####-####-####-########/########-####-####-####-########/VM.vmdk (Exists)
   Group UUID: ########-####-####-####-########
   Directory Name: None

  Note: Verify the configuration of the object. RAID_D (Durability) components should not be present unless there is a valid reason, such as when hosts are in maintenance mode or failing. In a healthy environment where all hosts are online and not in maintenance mode, RAID_D components should not be introduced. These durability components are typically created when an ESXi host enters maintenance mode, and a new "durability component" is generated for the components residing on that host. This ensures that all new VM I/O operations are written to both the existing and the durability components.

Resolution

1. Navigate to the vSAN cluster as shown below:

2. Open an SSH session to the vCenter appliance.

3. Log into RVC with "rvc localhost" if still using [email protected] otherwise log in as rvc administrator@<domain>.local@localhost

   "Welcome to RVC. Try the 'help' command.
0 /
1 localhost/"


4. Change directory to "localhost" using command "cd 1"


5. List the folder using "ls" command
   /localhost> 1s
0 Test Datacenter (datacenter)


6. Change directory to "Datacenter" using command "cd 0"
   /localhost> cd 0

7. List the folders using "ls" command.
   /localhost/Test Datacenter> 1s
0 storage/
1 computers [host]/
2 networks [network]/
3 datastores [datastore]/
4 vms [vm] /


8. Change directory to "computers [host]" using command "cd 1"
   /localhost/Test Datacenter> cd 1


9. List the folders using "ls" command
   /localhost/Test Datacenter/computers> 1s
0 Test Cluster (cluster) : cpu 19 GHz, memory 1 GB


10. Change directory to "vsan cluster" using command "cd 0"
    /localhost/Test Datacenter/computers> cd 0
/localhost/Test Datacenter/computers/Test Cluster>

    Example:


11. Run the command "vsan.check_state ." to check for inaccessible objects in the vSAN cluster.

    YYYY-DD-MM HH-MM-SS mmmm: Step 1: Check for inaccessible vSAN objects
Detected 3 objects to be inaccessible
Detected <Object UUID 1> on Host-1 to be inaccessible
Detected <Object UUID 2> on Host-2 to be inaccessible
Detected <Object UUID 3> on Host-3 to be inaccessible

12. Run the command "vsan.check_state . -r" to refresh the state of the vSAN objects.

    YYYY-DD-MM HH-MM-SS mmmm: Step 1: Check for inaccessible vSAN objects
Detected <Object UUID 1> to be inaccessible, refreshing state
Detected <Object UUID 2> to be inaccessible, refreshing state
Detected <Object UUID 3> to be inaccessible, refreshing state

13. Retest the Skyline Health to verify the status.
