The RGB HEX color code still shows up from the "Connection color" of AWI

Products

• CA Automic Workload Automation - Automation Engine

Issue/Introduction

The RGB HEX color code still shows up from the "Connection color" of AWI instead of just the name of the color.

Ex. Adding the HEX code #2596BE  within the colors.properties of the AWI should show the text BlueGreen.

session.colors = #BF2F1F, #E76456, #E88E35, #D6246E, #8953B0, #4E61C2, #0A786F, #6BC84C, #736D00, #E1D828, #867C6D, #2596BE;

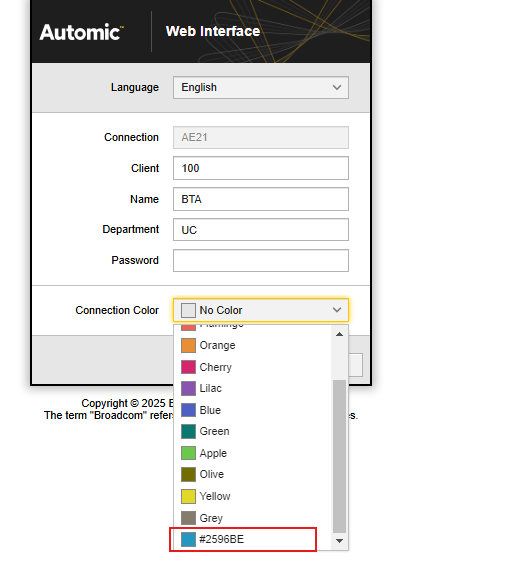

However, it's still showing as a HEX code int he dropdown menu.

Environment

Product: CA Automic Workload Automation - Automic Web Interfacecancel

Cause

Configuration

Resolution

Put the name of the color beside the RBG HEX code. For example.





session.colors = #BF2F1F, #E76456, #E88E35, #D6246E, #8953B0, #4E61C2, #0A786F, #6BC84C, #736D00, #E1D828, #867C6D, #2596BE - BlueGreen;
