BundleRepoWriteFailureException: Failed to store bundle(REPO WRITE FAILURE, path = /nfs/vmware/vcf/nfs-mount/bundle/depot/local/bundles/{filename} on Bundle Management page in SDDC Manager

Products

• VMware SDDC Manager / VCF Installer

Issue/Introduction

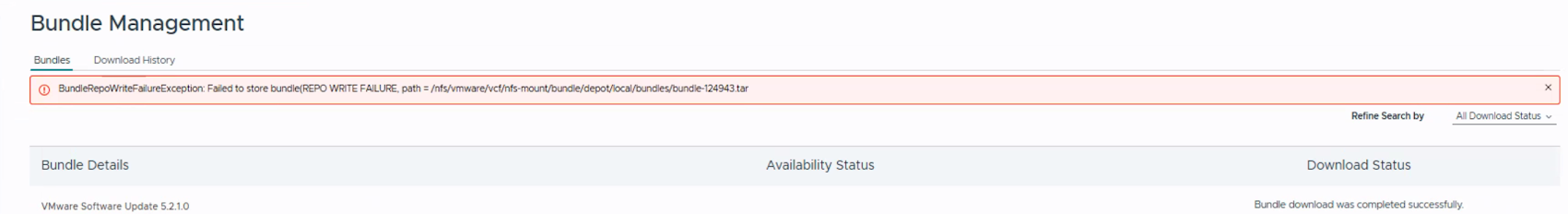

• The following error message appears on the Bundle Management page in SDDC manager:

  BundleRepoWriteFailureException: Failed to store bundle(REPO WRITE FAILURE, path = /nfs/vmware/vcf/nfs-mount/bundle/depot/local/bundles/bundle-####.tar


• Clearing the message is temporary, as the error re-appears upon a page refresh.



Environment

VMware Cloud Foundation 5.x

Resolution

Find the Bundle id for the bundle mentioned in the error from VMware Cloud Foundation - Upgrade Bundle Details

Follow the steps below to clear log bundle:

1. SSH/Putty to SDDC Manager.
2. Login as vcf and switch to root.
3. Run the cleanup script: /opt/vmware/vcf/lcm/lcm-app/bin/bundle_cleanup.py {bundle id}.
4. Verify in the SDDC Manager UI > Bundle Management that the error is no longer present.

Example:

For bundle-124943.tar the id is c8a1276c-13e9-4bd2-81f4-b5a641562e66 so command would be this: /opt/vmware/vcf/lcm/lcm-app/bin/bundle_cleanup.py c8a1276c-13e9-4bd2-81f4-b5a641562e66

Additional Information

• The above failure can occur also when the /nfs/vmware/vcf/nfs-mount disk is nearly full, which can be verified using the command df -h. In case of disk full, clearing unwanted files and making up space will resolve the issue and we will be able to download bundles.


• The above error message can also occur if there are no sufficient permissions on the bundles folder.
  Granting full permissions to the folder using chmod 7777 will resolve the issue.
