Reporter Server throws Invalid Sap Xbp2 UNDEF during extraction

Products

• CA Automic Dollar Universe

Issue/Introduction

During the extraction of a DUAS node where some SAP_XBP2 Uprocs are defined, the following kind of errors appear:

[ERROR] 12 Feb 2025 18:04:00 [pool-x-thread-y] com.orsyp.owls.impl.uproc.UprocMsgHelper - Invalid Sap Xbp2 start option : START_UNDEF
[ERROR] 12 Feb 2025 18:04:00 [pool-x-thread-r] com.orsyp.owls.impl.uproc.UprocMsgHelper - Invalid Sap Xbp2 job class : CLASS_UNDEF

No impact is observed as the execution statistics are correctly extracted and reports can be generated.

Environment

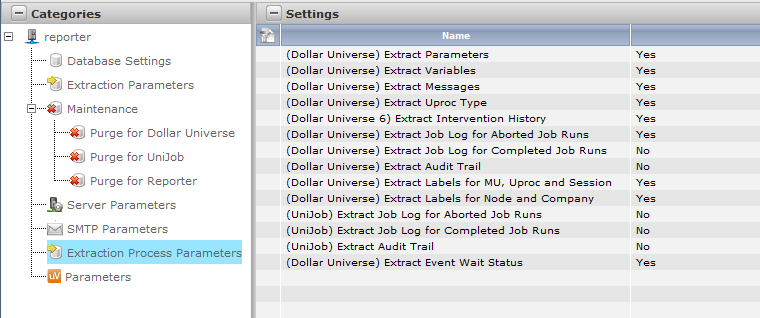

Reporter Server 6.10.121 where the following Extraction Process Parameteres are set:

Cause

Corrupted Uproc SAP_XBP2 where the Job Class and Start Option were not defined.

Resolution

The solution consists on deleting the Uproc where the SAP XBP2 class was not set to A,B or C

This could be done by launching the command "uxshw upr upr=*" and redirecting the output to a file, then searching for

jobclass        :

The impacted uproc will see the one where there's no value set, see below:
