Troubleshooting provisioning Scheduler service instance issues

Products

• VMware Tanzu Application Service

Issue/Introduction

General steps on how to troubleshoot if you are having issue with creating, updating, deleting, binding, unbinding Scheduler service instances.

An example of provisioning issues discussed on this KB

cf unbind-service <app> <scheduler-service-instance>

Fails with message "failed to delete application from Scheduler API: got status code 404"





Resolution

When Scheduler tile install errand is ran, 2 applications are deployed namely: scheduler and scheduler-broker.

Here are some steps you can use to troubleshoot provisioning issues:



1. Check if the app scheduler and scheduler-broker are running.

cf target -o system -s scheduler
cf apps

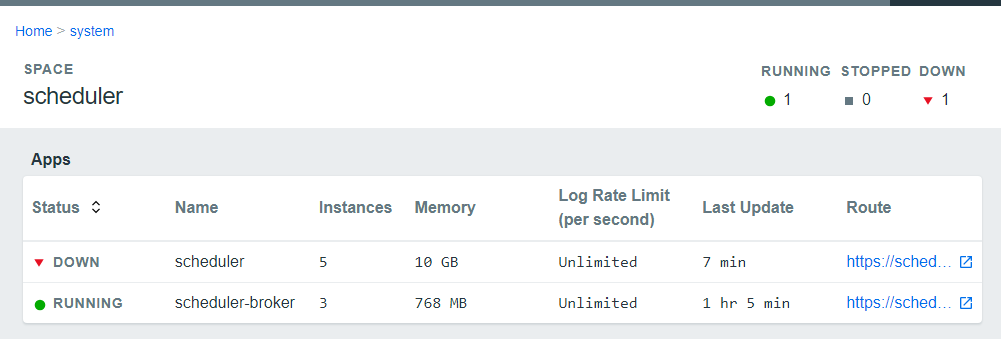

alternatively you can also use apps manager

2. Check the 2 application logs for warnings/error logs

cf target -o system -s scheduler
cf logs scheduler --recent
cf logs scheduler-broker --recent

on our example we can see that the scheduler app is down so looking further into the logs

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'flywayInitializer' defined in class path resource [org/springframework/boot/autoconfigure/flyway/FlywayAutoConfiguration$FlywayConfiguration.class]: Unable to obtain connection from database: Communications link failure

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] SQL State : 08S01

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] Error Code : 0

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] Message : Communications link failure

2025-02-03T00:44:19.825-05:00 [APP/PROC/WEB/4] [OUT] The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.

Although the scheduler-broker is running, check if there might be errors/logs that would provide clues. In this case we can see a mysql error as well. Scheduler-broker and Scheduler apps work hand in hand so one app will affect another app's behaviour.

2025-02-02T23:17:02.283-05:00 [RTR/4] [OUT] scheduler.######.com - [2025-02-03T04:17:02.067246183Z] "DELETE /v2/service_instances/########/service_bindings/
########?accepts_incomplete=true&plan_id=#####&service_id=##### HTTP/1.1" 500 0 61 "-" "HTTPClient/1.0 (2.8.3, ruby 3.2.2 (2023-03-30))" "10.###.###.##:24344" "10.###.##.##:61002" x_forwarded_for:"10.###.##.##" x_forwarded_proto:"https" ...

2025-02-02T23:25:03.690-05:00 [APP/PROC/WEB/2] [ERR] [mysql] 2025/02/03 04:25:03 connection.go:49: closing bad idle connection: unexpected read from socket

3. From the logs on Step 2, we can see that there are issues with mysql. Next step is to check the health of the MySQL service instances that the scheduler apps are using.

cf target -o system -s scheduler
cf services

Getting services in org system / space scheduler as admin...

name                     service   plan       bound apps         last operation     broker                   upgrade available
scheduler-broker-mysql   p.mysql   db-small   scheduler-broker   create succeeded   dedicated-mysql-broker   no
scheduler-mysql          p.mysql   db-small   scheduler          create succeeded   dedicated-mysql-broker   no

We need to the service instances guid so we can check the health of the vms on each of those service instances deployments

cf service scheduler-broker-mysql --guid
cf service scheduler-mysql --guid

4. Using the guid from Step 3, open a bosh CLI

bosh -d service-instance_<scheduler-broker-mysql-guid> vms
bosh -d service-instance_<scheduler-mysql-guid> vms

check for any failing vms. In this example, we can see that the scheduler-mysql is in a failing state

Deployment 'service-instance_<scheduler-mysql-guid>'

Instance                                    Process State  AZ          IPs            VM CID               VM Type    Active  Stemcell                                      VM Created At                 Uptime        Load              CPU    CPU   CPU   CPU   Memory        Swap          System      Ephemeral   Persistent




                                                     (1m, 5m, 15m)     Total  User  Sys   Wait  Usage         Usage         Disk Usage  Disk Usage  Disk Usage

mysql/####-#####-#####  failing        us-east-1b  10.###.###.##  i-############  t3a.large  true    bosh-aws-xen-hvm-ubuntu-jammy-go_agent/1.708  Wed Jan 22 20:47:05 UTC 2025  7d 6h 10m 2s  0.01, 0.04, 0.01  -      1.7%  1.1%  0.0%  18% (1.5 GB)  17% (1.4 GB)  57% (24i%)  10% (1i%)   2% (0i%)

The scheduler apps cannot function well if mysql service instances are not on a healthy state. You may refer here for troubleshooting MySQL.

5. Once the MySQL are in a healthy state, check for the apps health again. On some instances like our example issue discuss here, you might need to restart the app to refresh connections to MySQL. Once the app and MySQL service instances are healthy, you might want to test/retry provisioning again.

cf target -o system -s scheduler
cf apps

Getting apps in org system / space scheduler as admin...

name               requested state   processes           routes
scheduler          started           web:3/3, task:0/0   scheduler.########
scheduler-broker   started           web:3/3             scheduler.########
