Enabling HSTS for the DCS 6.9.x Management Server

Products

• Data Center Security Monitoring Edition
• Data Center Security Server
• Data Center Security Server Advanced

Issue/Introduction

How to enable HTTP Strict Transport Security (HSTS) for DCS over port 443, 4443, and 8443

Note: Enabling HSTS is not required as DCS does not use HTTP for any listener. All connections require TLS.

Environment

DCS 6.9.x

Resolution

To enable HSTS in Tomcat, follow below steps:

1. Stop the DCS Management server service and both UMC services


2. Take a backup of configuration file <server_install_dir>/tomcat/conf/web.xml


3. Open the <server_install_dir>/tomcat/conf/web.xml file in a text editor like notepad++ or similar

   Search for the httpHeaderSecurity <filter> definition section and the <filter-mapping> section, as shown below.
   (In total, you will need to uncomment ‘httpHeaderSecurity’ at 2 places in the file)

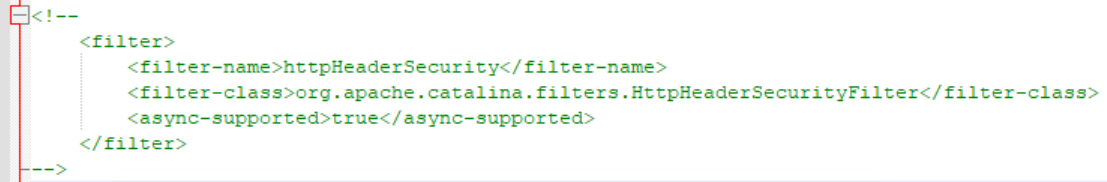

   • Filter definition section Example:
     Default Values


     New values after uncommenting

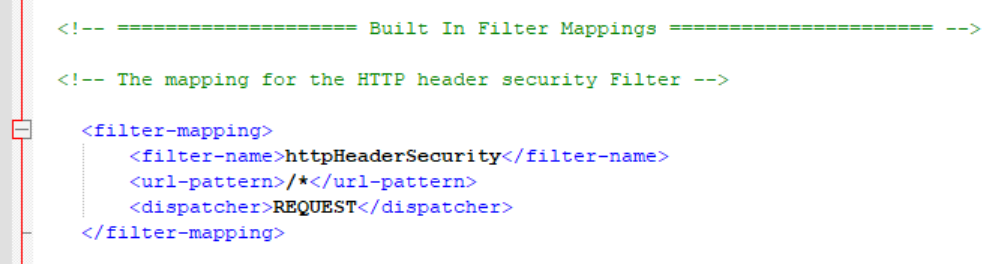

   • Built In Filter Mappings section Example:
     Default Values



     New values after uncommenting


4. Save the file


5. Start the DCS Management server service and then the two UMC Services
