HCX Migration Wizard shows an error: Mobility group with id: null does not exist

book

Article ID: 386322

calendar_today

Updated On:

Products

VMware HCX

Issue/Introduction

- The following error message is seen when starting a migration job.

Mobility group with id: null does not exist

- As the migration is not even initiated, no job related messages are seen in HCX Manager app.log under /common/logs/admin/app.log

- In web.log under /common/logs/admin/web.log, migration group ID and migration ID show as null.

2025-01-06 17:54:49.292 UTC [https-jsse-nio-127.0.0.1-8443-exec-3, Ent: HybridityAdmin, , TxId: TxId: ############] INFO  c.v.v.h.a.m.c.MobilityGroupUtils- doesAllMigrationsHaveSameSourceAndDestination-intent: class MobilityGroupIntent {
    migrationId: null
    migrationGroupId: null
    operationType: ADD
    state: null
    migrationType: vSphereReplication
    tags: null
    entity: class Entity {
        entityId: vm-######
        entityType: VirtualMachine
        entityName: ######
        summary: class EntitySummary {

- Curl tests from the HCX manager to connect.hcx.vmware.com are successful

curl -vk https://connect.hcx.vmware.com

- Even though the connection to the activation server is successful, there is a message shown in the HCX UI: 'The HCX service is disconnected. Restore your connection to the HCX service to proceed.'

Environment

Prior to HCX 4.11

Cause

A proxy server is configured in HCX and it is acting as a Certificate Authority and presenting an invalid certificate to HCX to validate.

Curl output shows certificate information related to the proxy server

Example:

admin@HCXmanager [ ~ ]$ curl -v -k https://connect.hcx.vmware.com
.
* Connected to connect.hcx.vmware.com (142.182.19.19) port 443 (#0)
.
.
* Server certificate:
*  subject: C=--; ST=State; L=City; O=Organization; OU=OrganizationalUnit; CN=Domain; emailAddress=Email
*  start date: date
*  expire date: date
*  issuer: C=--; ST=State; L=City; O=Organization; OU=OrganizationalUnit; CN=Domain; emailAddress=Email
*  SSL certificate verify result: self-signed certificate (18), continuing anyway.
* using HTTP/1.x
> GET / HTTP/1.1
> Host: connect.hcx.vmware.com
> User-Agent: curl/8.1.2
> Accept: */*
>
< HTTP/1.1 200 OK
.
.
<html>
       <Your Proxy Server Response>
</html>
.
.

Resolution

Note: After upgrading to HCX 4.11, hyperscaler systems become automatically disconnected from VMware activation server "connect.hcx.vmware.com" and system will start operating in the local activation mode.

Edit the HCX proxy settings to add an exclusion for connect.hcx.vmware.com

  • Login to the HCX Manager Administrator UI https://<hcx-manager-ip>:9443

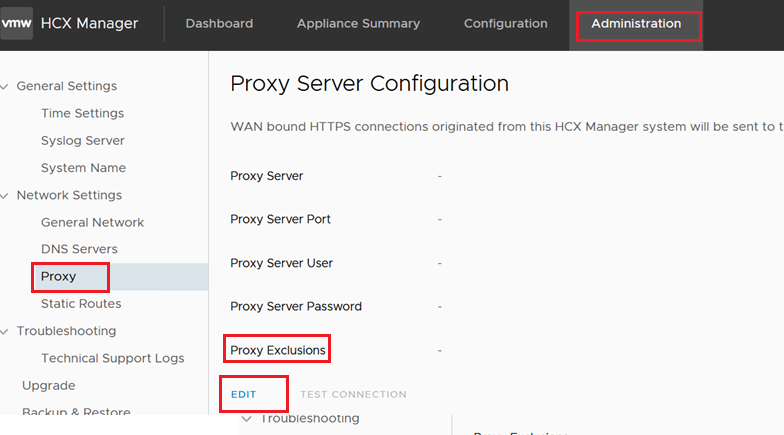

  • Navigate to Administration --> Proxy --> Proxy Exclusions --> Edit

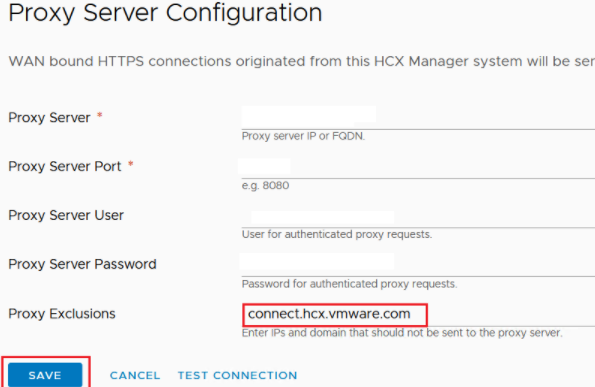

  • Add connect.hcx.vmware.com in the Proxy Exclusions and Save
