Unable to edit OTK Key in Oauth manager.

Products

• CA API Gateway

Issue/Introduction

When adjusting a client key , there is a error message in the Oauth manager and the change is not saved.

It appears that the transformation of the JSON to XML from the “key_custom” to XML (with Apply JSON Transformation) in the Oauth manager policy  goes wrong because

the value (entered here via secret = JWT) contains a key “x5t#s256”.

Which is a invalid character for xml .

How can this key be edited



Environment

OAuth 4.6.x

Resolution

We have identified a workaround for this issue. make the below changes to oauth/manager/clients policy. This service policy is editable.

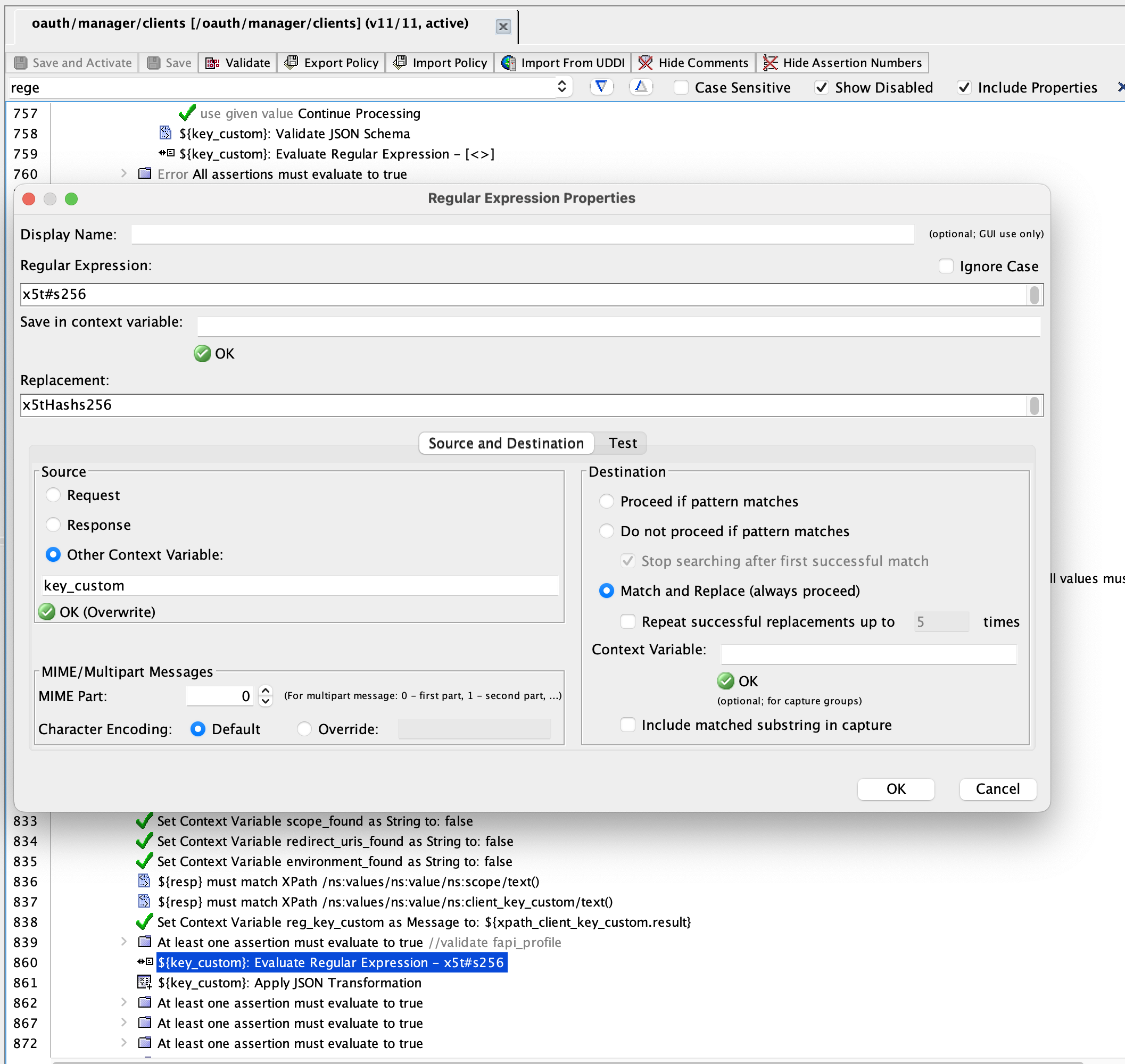

Add regex assertions as shown below:

1. Change x5t#S256 with x5tHashS256 within policy logic before JSON Transformation
2. Revert this before the update is saved into OTK DB.







Note:

1. The line numbers in the screenshots are only indicative since it depends on Oauth kit version
2. We will fix this in the product in future release
