Offline Deployments Cleanup

Products

• CA Release Automation - Release Operations Center (Nolio)
• CA Release Automation - DataManagement Server (Nolio)

Issue/Introduction

Starting Release Automation 6.9.1, a new feature has been added : Offline Deployments Cleanup.

In Release Notes for 6.9.1 ( Release Notes for 6.9.1 ) we could read this :

Added an option to move old deployments into offline tables. Suitable for improving the performance of instances with a large number of historical deployments, especially in the Deployments Overview page and related queries. For more detail, see Offline Deployments Cleanup

This article provides more details about this new feature.

Environment

Release Automation 6.9.1

Resolution

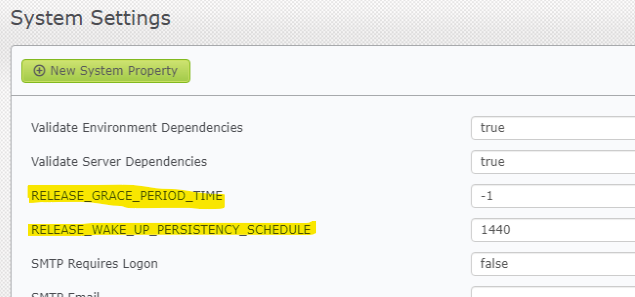

This feature uses 2 new System Settings :

RELEASE_GRACE_PERIOD_TIME - if positive, deployments, which completed (or are in other final state, e.g. cancelled or failed) more then <value> days ago will be removed from the online tables and moved to the offline tables. If negative, the scheduler is disabled

RELEASE_WAKE_UP_PERSISTENCY_SCHEDULE - allows you to define how often to repeat the scheduled task after initial run (in minutes).

Changes to these system settings are permanent, but require Nolio restart.

Default value for these settings are :
RELEASE_GRACE_PERIOD_TIME = -1
RELEASE_WAKE_UP_PERSISTENCY_SCHEDULE = 1440

So if this option is by default disabled. And execution of the scheduled task is done every 24 hours.

To enable it update the System Settings  RELEASE_GRACE_PERIOD_TIME to a non negative value.

Example :
RELEASE_GRACE_PERIOD_TIME = 60

Deployments older than 60 days will be moved from online tables to offline tables. (checking done every 24 hours)

These settings change are permanent but need a restart of Nolio service.

The rows in database tables for old release are moved from rc_* tables to off_rc_* tables (exemple rc_releases to off_rc_releases)



It is also possible to enable temporary this feature using JMX :

Open JMX console using url like :
http://localhost:20203/mbean?objectname=noliocenter%3Atype%3Dinfo

Default user/password is nolio/nolio

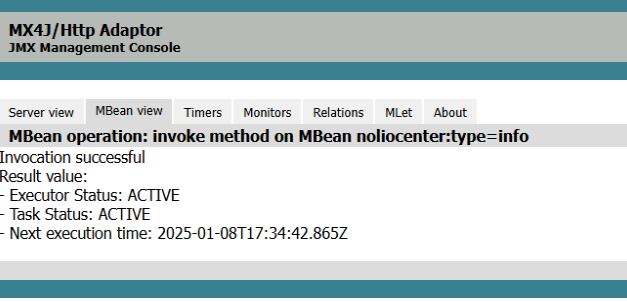

Execution of getReleasePurgeOldExecutionsJobStatus returns something like :

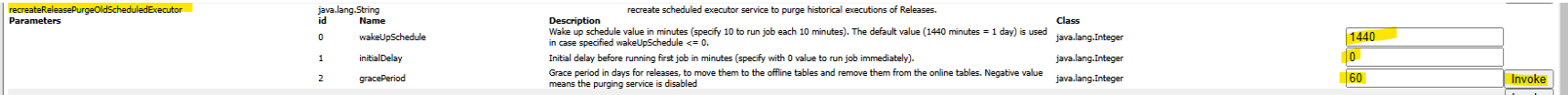

Then invoke recreateReleasePurgeOldScheduledExecutor to execute the feature :

Additional Information

• See this link for more information : Offline Deployments Cleanup


• See log file <ra_home>/nolio_purging.log

Example of execution log :

2025-01-07T19:01:29.870+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor$FinalReleaseCleanerTask:117) - Running FinalReleasesCleanerTask now...
2025-01-07T19:01:29.872+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor:77) - Going to move 1 releases to the offline tables
2025-01-07T19:01:29.872+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor:81) - Copying of the finished release [1] to the offline tables is started.
2025-01-07T19:01:29.985+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.PurgingServiceImpl:496) - Creating offline release [1]
...
...

2025-01-07T19:01:30.021+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.PurgingServiceImpl:517) - Offline release [1] is created.
2025-01-07T19:01:30.097+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor:84) - Copying of the finished release [1] to the offline tables is successfully finished. Duration: 225 msecs.
2025-01-07T19:01:30.097+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor:90) - Remove old release [1] from the online tables is started.
2025-01-07T19:01:30.099+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.PurgingServiceImpl:241) - Removing release [1] is started...
2025-01-07T19:01:30.190+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.PurgingServiceImpl:252) - Release [1] is removed.
2025-01-07T19:01:30.233+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor:94) - Removing of the old release [1] from the online tables is successfully finished. Duration: 135 msecs.
2025-01-07T19:01:30.233+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.execution.dao.PurgingDaoImpl:178) - Grace Period is [2025-01-06T19:01:30.233+0100]
2025-01-07T19:01:30.234+01:00 [ReleaseToOffline-1] INFO  (com.nolio.platform.server.dataservices.services.purging.PurgingServiceImpl:433) - There is no online release to remove
2025-01-07T19:01:30.234+01:00 [ReleaseToOffline-1] DEBUG (com.nolio.platform.server.dataservices.services.purging.ActiveReleaseToOfflineMonitor$FinalReleaseCleanerTask:133) - FinalReleasesCleanerTask is finished.

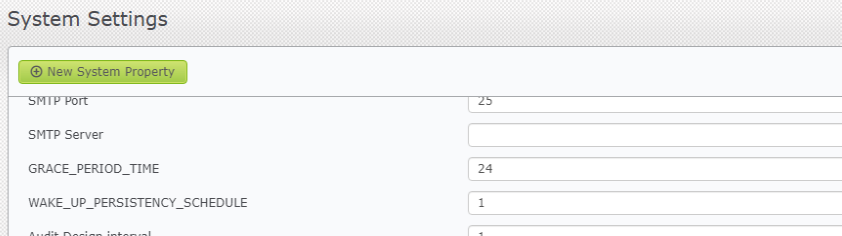

• Offline cleanup of execution job was already present and managed by these System Parameters

  GRACE_PERIOD_TIME (default value 24 days)
  WAKE_UP_PERSISTENCY_SCHEDULE (default value 1 minute)




  Every minute the cleanup task checks if there are jobs older than 24 days and move them to offline tables.
  Example : move of rows from table execution_jobs to offline_execution_jobs

  So the release cleanup task is in addition to job cleanup task.



• The purge scripts described in this article :
  Offline tables purge script

  are to cleanup the offline_* tables for old jobs
  These scripts will be enhanced to include also the cleanup of off_rc* for old releases.
