vCenter Update fails at pre-check 'VMDir is not in Normal State'

Products

• VMware vCenter Server

Issue/Introduction

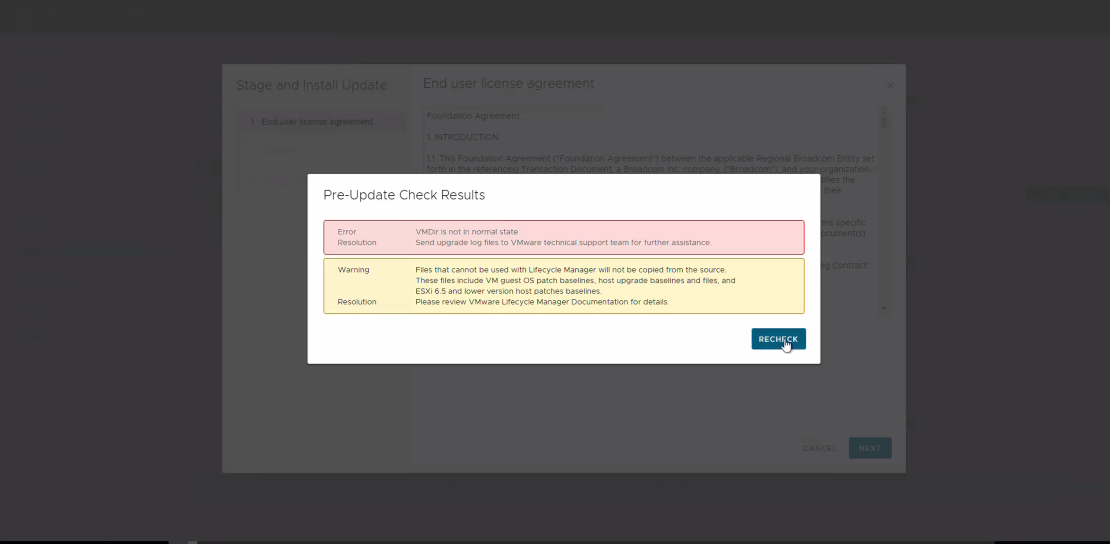

Patching vCenter Server fails at pre-check with error 'VMDir is not in normal state'.



VMDir status returns Normal while checking on vCenter.

PatchRunner.log
---------------------------------
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements INFO vmdir Validating the VMDir state
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements INFO vmdir No replication partner found so considering as standalone
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements INFO vmdir_validator Going to validate VMDir state
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements INFO vmdir_validator Getting dir-cli path
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements INFO vmdir_validator Executing the dir-cli command to get state
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements ERROR vmdir_validator dir-cli failed. Error 382312694: Access denied, reason = rpc_s_auth_method (0x16c9a0f6).
YYYY-MM-DDTHH:MM:SSZ vmdir:CollectRequirements ERROR vmdir VMDir is not in correct state

vmdird-syslog.log
---------------------------------
YYYY-MM-DDTHH:MM:SSZ err vmdird  t@139644435928640: VdirPasswordFailEvent from user(cn=vcsa.vmware.com,ou=domain controllers,dc=vsphere,dc=local), error(0)()
YYYY-MM-DDTHH:MM:SSZ err vmdird  t@139644435928640: Srv_rpc_srp_verifier_verify_session failed, status (382312692)

Environment

VMware vCenter Server 7.0.x
VMware vCenter Server 8.0.x

Cause

As part of the VMDir patch script the below command is run to get the VMDir state.

/usr/lib/vmware-vmafd/bin/dir-cli state get --login --password --server-name --domain-name

This command fails if there are invalid characters in "dcAccountPassword".

Manually executing the command returns with error "Access denied". (example below)

/usr/lib/vmware-vmafd/bin/dir-cli state get --login vcsa.vmware.com --password 'dcAccountPassword' --server-name 'vcsa.vmware.com' --domain-name 'vsphere.local'

Resolution

Ensure you have valid backup/snapshot of the vCenter Server.

Reset the machine account password for the vCenter to remove the invalid characters in "dcAccountPassword" using the below article.

LDAP Error Code 49 : Reset Machine Account Password of vCenter Server Appliance using Shell Script

Additional Information

For a similar issue with  the same Error but different Resolution message involving VMdir in Standalone mode, see "Vmdir service is not in Normal state", vCenter Server upgrade pre-check fails due to VMDIR in Standalone mode
