Failure in Aria Automation Snapshot Creation in Aria Suite Lifecycle due to Datastore Validation and Health Check Issues

Products

• VMware Aria Suite

Issue/Introduction

• In VMware Aria Automation, snapshot creation from Aria Suite Lifecycle fails during the "Product health check." The health check shows that one of the Aria Automation nodes, is not in a healthy state, preventing successful snapshot creation.
• While the pre-check for datastore validation passes, the overall snapshot pre-check health check fails due to reported issues with Aria Automation health on a specific node.

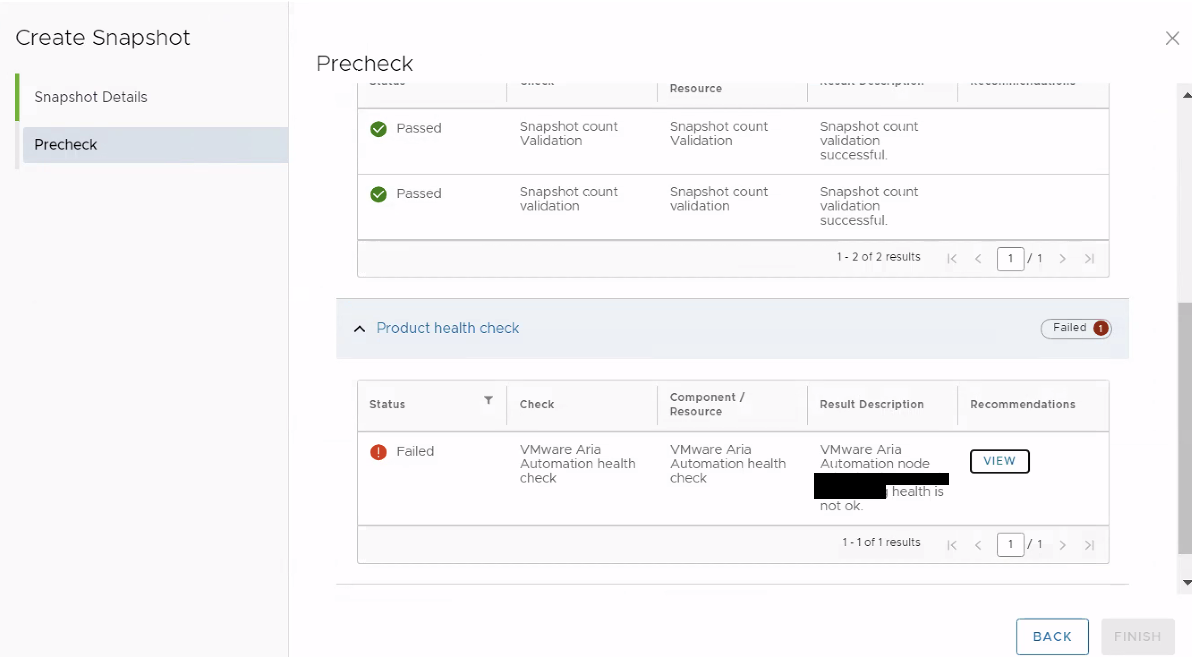

• Below messages were seen in the Precheck Report:

  • VMware Aria Automation node xxxxxx.xxxxx.xxx health is not ok.
  • Please make sure that VMware Aria Automation is in healthy state.



• Below events were seen in /var/log/vrlcm/vmware_vrlcm.log file:

  • 2024-11-08 06:25:30.642 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- Message id: SNAPSHOT_PRE_CHECK_HEALTH_CHECK, parameters: [ ], default: Product health check
  • 2024-11-08 06:25:30.642 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- Translated message Product health check from key SNAPSHOT_PRE_CHECK_HEALTH_CHECK with params [ ]
  • 2024-11-08 06:25:30.642 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- Message id: null, parameters: null, default: null
  • 2024-11-08 06:25:30.642 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- LOG Validation element: {
      "id" : null,
      "checkName" : "VMware Aria Automation health check",
      "checkType" : "ERROR",
      "status" : "FAILED",
      "recommendations" : [ "Please make sure that VMware Aria Automation is in healthy state." ],
      "resultDescription" : "VMware Aria Automation node xxxxxx.xxxxx.xxx health is not ok.",
      "elementType" : "CHECK",
      "childElements" : null,
      "localizedCheckNameId" : null,
      "localizedRecommendationsIds" : null,
      "recommendationParams" : null,
      "localizedDescriptionId" : null,
      "descriptionParameter" : null
    }
  • 2024-11-08 06:25:30.643 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- Message id: null, parameters: [ ], default: VMware Aria Automation health check
  • 2024-11-08 06:25:30.643 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- Message id: null, parameters: null, default: VMware Aria Automation node xxxxxx.xxxxx.xxx health is not ok.
  • 2024-11-08 06:25:30.643 INFO  [http-nio-8080-exec-7] c.v.v.l.r.u.GenericPrevalidationReportCreator -  -- LOG Validation element: {
      "id" : null,
      "checkName" : "Validation of Data-stores to enable snapshots.",
      "checkType" : null,
      "status" : "PASSED",
      "recommendations" : null,
      "resultDescription" : null,
      "elementType" : "GROUP",
      "childElements" : [ {
        "id" : null,
        "checkName" : "Datastore Validation",
        "checkType" : "ERROR",

Environment

• Aria Automation 8.x
• Aria Suite Lifecycle 8.x

Cause

• The snapshot creation failure is due to a Product health check error on a specific Aria Automation node, specifically related to datastore validation and disk space issues. Limited free space in the /home partition on the affected node is causing the Product health check to fail.

Resolution

• Verify Health of Aria Automation Components:
  • Confirm whether Inventory Sync for Aria Automation is successful in Aria Suite Lifecycle. Typically, Inventory Sync will complete without any issues.
  • SSH into Aria Automation node and run the following commands to verify that all nodes and pods are healthy:

    • kubectl get nodes
    • kubectl get pods -n prelude
    • vracli service status
• Remove Old Snapshots and Unneeded Files:

  • Attempt to delete any old snapshots via Aria Suite Lifecycle and clear unnecessary log bundles from /home partition on the reported node.
• Verify Disk Usage:

  • Use vracli disk-mgr command on each node to check free space. Logs from Aria Suite Lifecycle point to limited space on the /home partition (18% free space) in the below e.g.: (Typically, free space on all partitions in Aria Automation nodes should be more than 25%)

• • Once insufficient disk space is confirmed, identify and remove unnecessary files (e.g., older log bundles) to free up space from the /home directory.
• Run Disk Manager and Snapshot Validation:

  • Run vracli disk-mgr command on all three nodes and verify output to ensure datastores meet requirements.
  • Once Aria Automation health is addressed and sufficient disk space is available, rerun the snapshot pre-check validation within Aria Suite Lifecycle.
  • This time the Snapshot Validation should be successful.

Additional Information

• Consider reviewing Hardware Requirements for Aria Automation upgrades before proceeding with any updates: https://docs.vmware.com/en/VMware-Aria-Automation/8.18/automation-reference-architecture/GUID-0332A798-93DA-435E-B45B-17A7233AE04F.html
