Issue/Introduction

Create a report in DSM Reporter with the C and D drivers along with their total and used spaces:

- Domain Machines C and D Drives Total Space
- Domain Machines C and D Drives Used Space

Environment

 CA Client Automation - All versions

Resolution

Use the following out of the box reporter template and modify it accordingly:

1. Right-click on the below report template 'Local Drives' and select the option 'Create Copy'.

2. DSM Reporter on server_name > Reporter Templates > Hardware > Storage >
on Drive Information expand the template copy 'Local Drives [2]'.

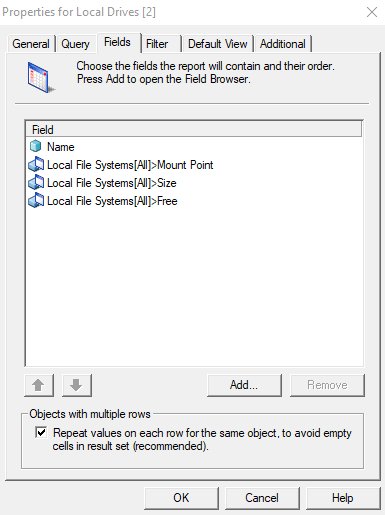

3. Select 'Fields' to see the selected fields by default. Click on 'Select Fields' under 'Tasks'.

4. Add button > select Category 'Inventory' > expand General Inventory > File System > Local File Systems >
<First> or <All> > Add: Mount Point, Size and Used > OK > OK >

* You can remove the existing fields before and leaving only the Unit Name with the new added fields above.

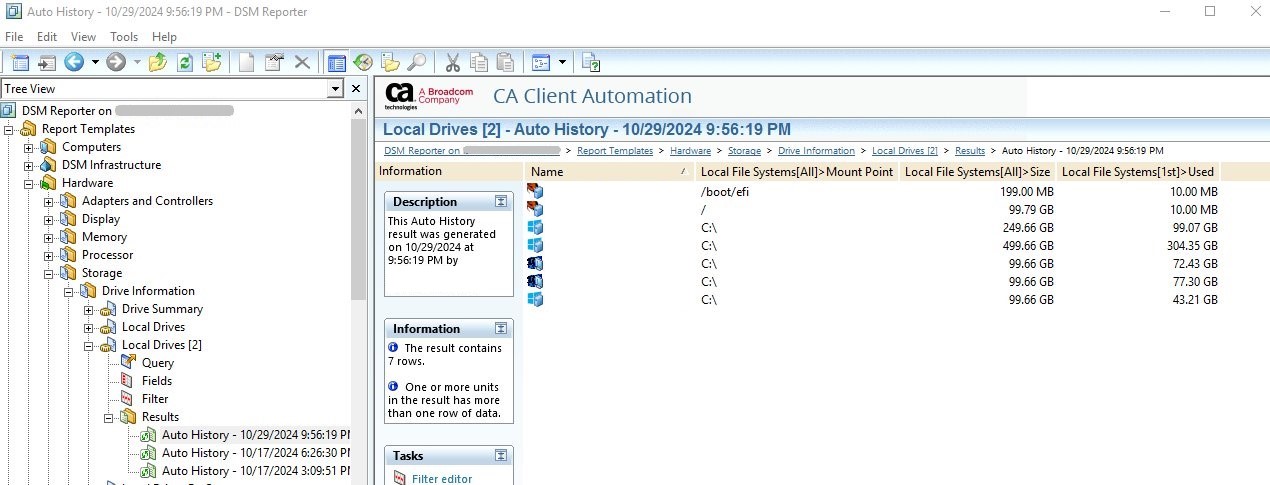

5. Right-click on 'Local Drives [2]' > Run Report
