Steps to troubleshooting GI (Guest Introspection) based IDFW (Identity based Firewall)
Article ID: 377600
Updated On:
Products
VMware vDefend Firewall
VMware NSX Firewall
Issue/Introduction
This document guides NSX administrators in systematically troubleshooting NSX GI-based Identity Firewall (IDFW) issues. IDFW allows administrators to implement security policies based on user identity, thus securing environments where applications are accessed based on user roles or identities. However, due to its complexity, issues may arise with deployment or performance, requiring a structured approach to troubleshooting.
This KB will take you through the step-by-step process of identifying and resolving potential issues related to GI-based IDFW.
Cause
Resolution
In an exclusively GI-based IDFW configuration "Event Log Server" is NOT configured.
- DFW Rule Processing
- IDFW rules are enforced at the SOURCE VM vNic and are only processed there. This means the IDFW Rule is not evaluated to see if the traffic is allowed into the Destination vNic.
- Thus, there must be a regular DFW ( non-IDFW ) rule to allow the traffic into the Destination VM, or else traffic will be blocked at the destination vNic.

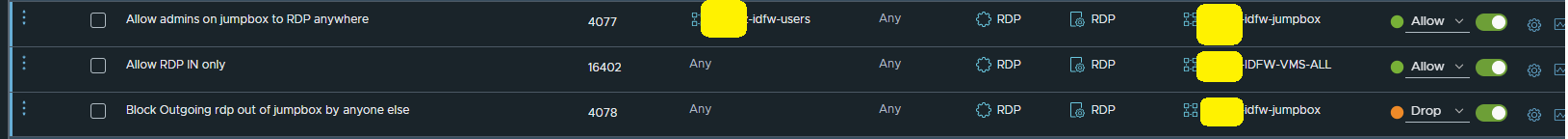

- For example see the screenshot below:
- The IDFW rule "Allow Admins on Jumpbox to RDP anywhere" is applied only to the Source VM's where it is needed. It is normally not set to DFW as that is too broad.
- The rule "Allow RDP IN Only" is applied to the destination VM"s and allows RDP traffic in the IN direction only.
- The last rule block all RDP connections from the Source VM's, which blocks all non-admin RDP attempts.
- To determine the user SID, execute "wmic useraccount" from the guest VM.
PS C:\Users\Administrator> wmic useraccount
AccountType Caption Description Domain SID SIDType Status
512 IDFWDOMAIN##\Administrator Built-in account IDFWDOMAIN## S-1-5-21-##########-##########-#######123-500 1 OK <<<< UserSID, 500 at the end indicates administrator
512 IDFWDOMAIN##\cyg_server <cygwin home> IDFWDOMAIN## S-1-5-21-##########-##########-#######123-1005 1 OK <<<<< UserSID, 1005 indicates some created user- Alternative commands to find the User SID:
- Execute "whoami /user" in a command prompt in the guest VM
- Execute "Get-ADUser <username>" in a PowerShell window in the Guest VM
- Alternative commands to find the User SID:
- To determine the group SID, execute "wmnic group" from guest VM
PS C:\Users\Administrator> wmic group
Caption Description Domain Name SID SIDType Status
IDFWDOMAIN##\Access Control <snip> IDFWDMEOTFPUHQ Access Control Assistance Operators S-1-5-32-579 4 OK
IDFWDOMAIN##\Administrators Administrators IDFWDMEOTFPUHQ Administrators S-1-5-32-544 4 OK <<<< User Group SID for administrator- Alternatively, execute "wmic group where name='Administrators' get sid" from the guest VM to get the group SID
- Alternatively, execute "wmic group where name='Administrators' get sid" from the guest VM to get the group SID
- Verify it the vspeflt and vnetWFP drivers are running. Execute fltmc on the guest VM. If the vsepflt is not showing up drivers are probably not installed. Refer Administration Guide to install
PS C:\Users\Administrator> fltmc
Filter Name Num Instances Altitude Frame
------------------------------ ------------- ------------ -----
vsepflt 4 328200 0 << This driver need to be loaded for the GI based IDFW
<SNIP>C:\Users\Administrator>sc query vnetwfp
SERVICE_NAME: vnetwfp
TYPE : 1 KERNEL_DRIVER
STATE : 4 RUNNING << ensure State is RUNNING
(STOPPABLE, NOT_PAUSABLE, IGNORES_SHUTDOWN)
WIN32_EXIT_CODE : 0 (0x0)
SERVICE_EXIT_CODE : 0 (0x0)
CHECKPOINT : 0x0
WAIT_HINT : 0x0 - Determining whether the rules are applied to the VM. We expect to see "with extended source"
- Execute "summarize-dvfilter | grep <VM-name> -A 9" to find the filter name
[root@ESX:]summarize-dvfilter | grep VM-A -A 9 <<< grep with the VM name
world 5420242 vmm0:VM-A vcUuid:'50 1b ca df 2f 20 cc 0d-58 71 a7 c7 66 74 b7 8a'
port 67109004 VM-A.eth1
vNic slot 2
name: nic-#######-eth1-vmware-sfw.2 <<<< Filter name
agentName: vmware-sfw
state: IOChain Attached
vmState: Attached
- Execute "summarize-dvfilter | grep <VM-name> -A 9" to find the filter name
- Execute "vsipioctl getrules -f <filtername>" to check the rules
[root@ESX:] vsipioctl getrules -f nic-#######-eth1-vmware-sfw.2
ruleset mainrs {
<SNIP>
rule 1001 at 1 inout protocol tcp strict from any to any port {80, 443} with extended src 957534f8-c85f-4643-aaf8-42ab343ec582 drop;
- Execute "vsipioctl getrules -f <filtername>" to check the rules
- Verify if the SID of the user is active on the ESXi host and verify if the user group SID shows up by executing "vsipioctl getsidcache -f <filtername>"
[root@ESX:] vsipioctl getsidcache -f nic-535485-eth1-vmware-sfw.2
uid2sid map size : 1172
uid2sid map num entries : 1
User ID : S-1-5-21-##########-##########-#######123-500 <<<< UserSID
Status : Active <<<<<
NoConn : 30
CorrID : 88698765
{
SID : S-1-1-0
<SNIP>
SID : S-1-5-32-544 <<<< User group SID. - Verify if the container(from the rule) contains relevant User group, by executing "vsipioctl getcontainers -f <filtername>"
[root@ESX:] vsipioctl getcontainers -f nic-535485-eth1-vmware-sfw.2
containers are shared for this filter
global containers
container 957534f8-c85f-4643-aaf8-42ab343ec582 {
# generation number: 1
# realization time : 2024-03-14T10:42:43
WIN_SID : S-1-5-32-544,
} - To determine if the ESXi host is recognizing the log in event. Execute egrep "SESSION_TYPE_CONNECT|SESSION_TYPE_LOGON|SESSION_TYPE_DISCONNECT" /var/run/log/nsx-syslog.log
[root@ESX:/vmfs/volumes/65b29b4b-a2775a57-edaa-005056811440/log] egrep "SESSION_TYPE_CONNECT|SESSION_TYPE_LOGON|SESSION_TYPE_DISCONNECT" /var/run/log/nsx-syslog.log | tail -n 10
2024-03-14T10:24:42.984Z nsx-opsagent[531333]: NSX 531333 - [nsx@6876 comp="nsx-esx" subcomp="opsagent" s2comp="ctxteng" tid="531419" level="INFO"] Context: Session dump - vcUuid: 52642f7c-d566-f4a9-8f38-7876dac3772a, dfwKey: , sid: , uid: -1, type: SESSION_TYPE_DISCONNECT, user name: , domain name: , session id: 2, client ip: , ip version: 65535, timestamp: 1710411882984, group count: 0, group hash: 0
2024-03-14T10:24:47.528Z nsx-opsagent[531333]: NSX 531333 - [nsx@6876 comp="nsx-esx" subcomp="opsagent" s2comp="ctxteng" tid="531415" level="INFO"] Context: Session dump - vcUuid: 52642f7c-d566-f4a9-8f38-7876dac3772a, dfwKey: , sid: , uid: -1, type: SESSION_TYPE_CONNECT, user name: , domain name: , session id: 2, client ip: , ip version: 65535, timestamp: 1710411887526, group count: 0, group hash: 0
2024-03-14T10:24:48.519Z nsx-opsagent[531333]: NSX 531333 - [nsx@6876 comp="nsx-esx" subcomp="opsagent" s2comp="ctxteng" tid="531418" level="INFO"] Context: Session dump - vcUuid: 52642f7c-d566-f4a9-8f38-7876dac3772a, dfwKey: S-1-5-21-2972043103-4218427138-1095897438-500, sid: S-1-5-21-##########-##########-#######123-500, uid: -1, type: SESSION_TYPE_LOGON, user name: Administrator, domain name:IDFWDOMAIN##, session id: 2, client ip: 10.198.xxx.xx, ip version: 0, timestamp: 1710411888500, group count: 15, group hash: 0 - Verify if the IDFW rules are working.
