CABI installation fails - no-restart code (42) due to SSL handshake failed: PKIX path building failed : unable to find valid certification path to requested target

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

I am trying to install CABI (either on a fresh deployment or having run the CABI cleanup script to clean up a previously unsuccessful installation).

CABI installation fails with the following error:

Controller: Probe 'cabi' (command = <startup java>) returns no-restart code (42)

Above that in the log I see the following error:

SSL handshake failed: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

TLS is not enabled for the DX UIM database connection in data_engine, and this is working fine, so why are we getting an SSL failure?



Environment

CABI 7.50, 8.00, 8.20, 23.4.0

Microsoft SQL Database

TLS not enabled in data_engine

Cause

This could be caused by a misconfiguration on the MSSQL Server, specifically the following combination of settings:

1. "Force Encryption" on the instance is enabled
2. No Certificate is selected for the instance

This can be verified in SQL Configuration Manager.

• Open SQL Configuration Manager
• locate and expand 'SQL Server Network Configuration'

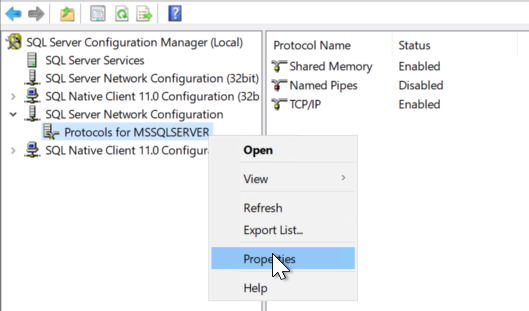

• right-click "Protocols for (INSTANCENAME)" and select Properties

• check the value of "Force Encryption"

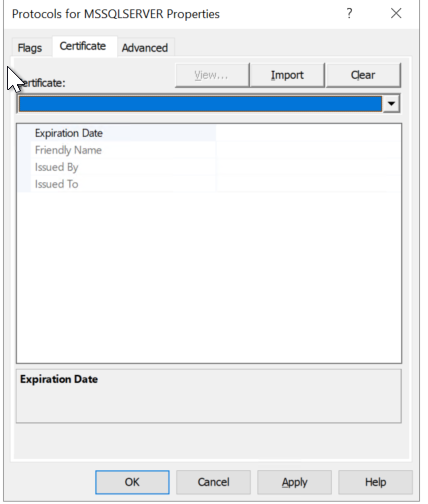

• If this is set to 'Yes', check whether a certificate is enabled in the 'Certificate' tab.  The following screenshot shows no certificate enabled:





With this combination of settings, data_engine will still connect to the database without using TLS, but CABI will fail.





Resolution

There are two options:

1. Set "Force Encryption" to "No" so that CABI will not try to look for a certificate when establishing the connection
2. Leave it set to "Yes" but enable a certificate so that CABI can validate the certificate.

Note that it may be necessary to enable TLS on data_engine if you choose the second option.

Additionally, if the certificate used for SQL is a self-signed certificate, you will likely need to import that certificate to the Trusted Store in Java on the CABI server.

To do so:

1. Export the certificate in Windows into .CER format.  You do not need to export the private key.
2. Copy the .CER file to the CABI server
3. Navigate to the lib/security folder which is underneath the UIM JRE folder, e.g.:  C:\Program Files (x86)\Nimsoft\jre\(version)\lib\security\
4. Open a command prompt in this location
5. Run the following command (substituting the appropriate values) to use keytool to import the .CER file to the Trusted Cert store:


   ..\..\bin\keytool -importcert -alias <servername of SQL Server> -file <X:\Path\to\certificate.cer> -keystore .\cacerts

6. You will be prompted for a password, use the password:  "changeit"



After doing these steps, restart the cabi probe, which will re-run the installer, and the installation should now succeed.
