Import Private Key error

Products

• CA API Gateway

Issue/Introduction

Error when importing private key file (.p8) into Layer7 API Gateway policy manager

Dialog error "Import failed: stream does not represent a PKCS12 key store"

Environment

Gateway 11.0

Mobile Gateway (MAS)

Cause

Private key import using policy manager must be PKCCS#12 .p12 / .pfx format



Resolution

The latest release GW 11.1.1 includes graphman, this can be used to import PEM key (private) into the trusted key store.

OR

Possibility

Using the GW 11.0 with the two assertions

Encode JWT

Decode JWT

Set a context variable with TEXT value of the private, then encode/decode using the context variable

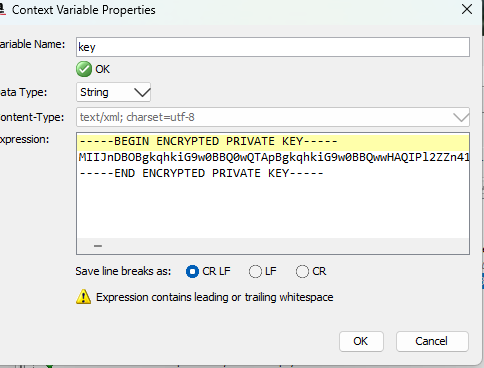

Set Context Variable "key"

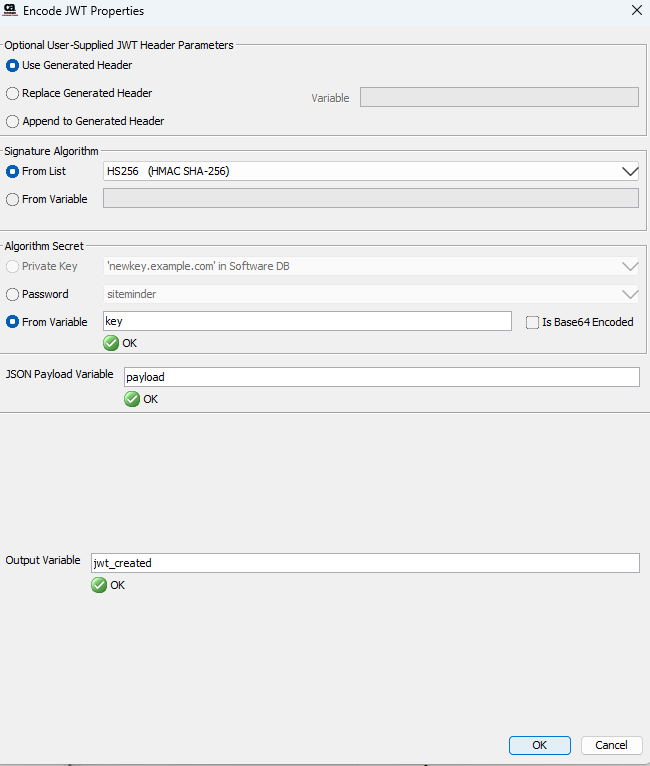

Example of using context variable "key" in Encode JWT assertion

Additional Information

The two assertions "Encode JWT" & "Decode Encode JWT" require a valid MAS license install

"Use of Layer 7 SecureSpan Suite major version 11 featuring Mobile and MAS"
