NSX Appliance SSH Root Login Fails with Access Denied despite the ssh service running and root login being enabled

Products

• VMware NSX

Issue/Introduction

• SSH access with root login may not have been enabled when initially deploying NSX.


• When attempting to establish an SSH, SCP, or SFTP connection to an NSX-T Manager or Edge node using the root account, the connection is rejected with an "Access Denied" error.




• As the admin user, executing command:  get service ssh  shows root login value enabled and the SSH "service state" as running.




• The behavior is often observed shortly after an upgrade to NSX 4.2.x from an earlier version.


• This issue is predominantly seen in appliances upgraded from versions prior to 4.2 where legacy configuration files are preserved. Fresh installations of 4.2 or above and nodes utilizing SSH key-based authentication are generally unaffected.

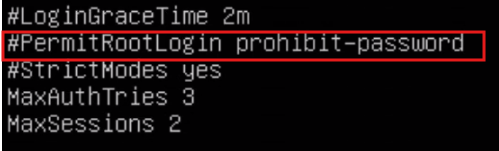

• The  PermitRootLogin entry is commented out in the /etc/ssh/sshd_config file on the affected NSX appliance, as in the following screenshot:




  • This can be checked by running command:   grep -i passwordauthentication /etc/ssh/sshd_config


    • The working configuration would show   PasswordAuthentication  yes

Cause

Starting with NSX 4.2.x, the underlying SSH daemon strictly enforces the /etc/ssh/sshd_config directives. The legacy management-plane toggle for 'root-login' no longer overrides the PermitRootLogin directive if it is explicitly set to prohibit-password or commented out."

Resolution

1. Log in to the NSX-T manager console as root


2. Edit the SSH service's configuration file:


   1. Open the file for editing by executing:

      vi /etc/ssh/sshd_config



   2. Modify the configuration:


      1. Locate the line: "#PermitRootLogin prohibit-password"


      2. Replace the line with: "PermitRootLogin yes"
         ^After opening a file with vi, type the letter "i" to enable "Insert" mode where changes can be made. When finished, hit the Esc key to end Insert mode again. *As seen at the bottom of the vi page:




   3. Save the updated configuration.
      ^While not in Insert mode, type a colon (":") followed by "wq" (means write quit) and hit Enter.



      *to exit without applying changes, use "q!" instead.


3. Restart the SSH service:


   • Execute the command:

     /etc/init.d/ssh restart

*Note: If root login still fails you may need to enable root login after restarting SSH

• As the admin user, execute:

  set ssh root-login



Additional Information

Also refer to (KB 324233) Enable ssh root access for NSX appliances
