VMware Aria Operations for Networks - "TableNotFoundException" displayed in UI

Products

• VMware Aria Operations for Networks

Issue/Introduction

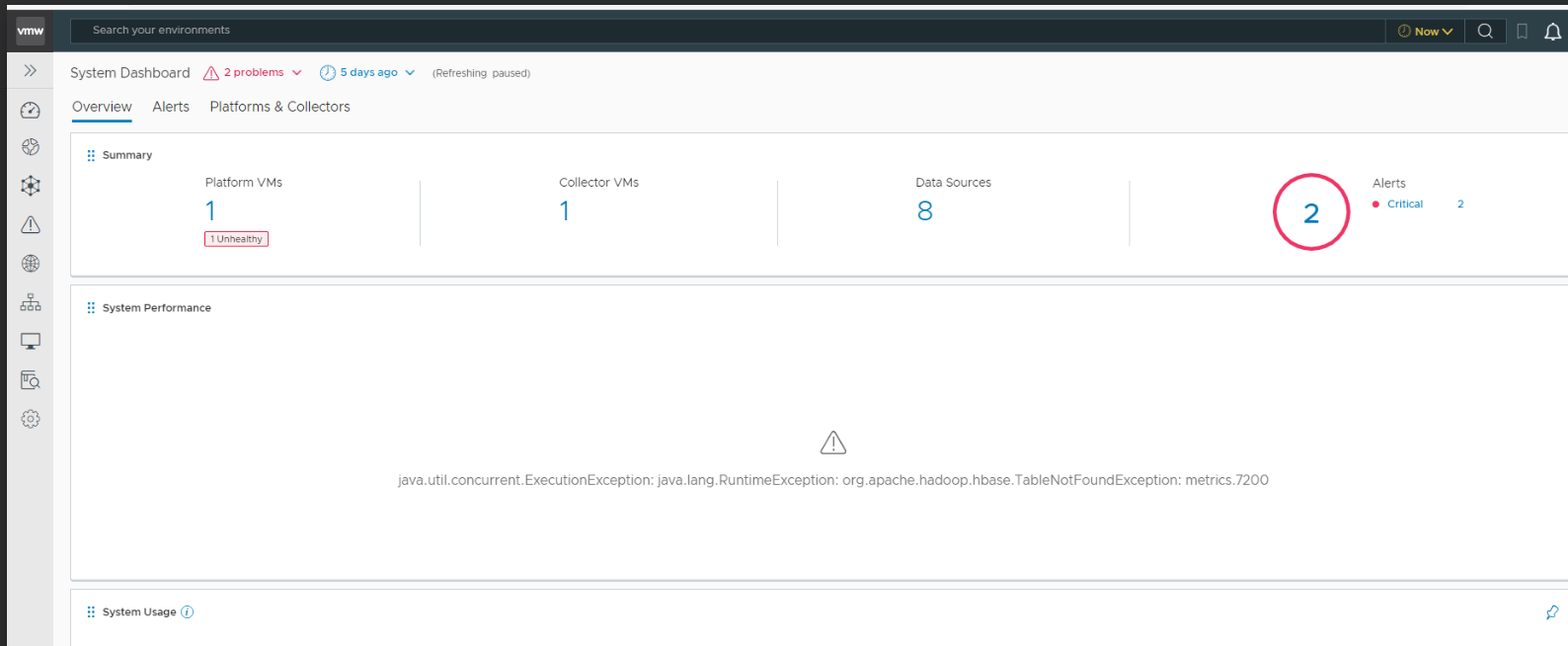

• In VMware Aria Operations for Networks -> System Dashboard -> System Performance , the error is observed:

• In VMware Aria Operations for Networks -> Home -> Platform VMs, you see the error:
  "Data retention error - table does not exist: metric.20"



• The following error is observed in /var/log/arkin/metric-store-updater/latest.log:

WATCHER::
WatchedEvent state:SyncConnected type:None path:null
2024-07-17T04:02:28.400Z Successfully deleted znode /vmware/metric-store-setup
Exception in thread "main" java.lang.RuntimeException: table does not exist: metrics.20
        at com.vnera.storage.metrics.admin.MetricStoreSetup.setupTable(MetricStoreSetup.java:161)
        at com.vnera.storage.metrics.admin.MetricStoreSetup.updateColumnFams(MetricStoreSetup.java:115)
        at com.vnera.storage.metrics.admin.MetricStoreSetup.updateColumnFams(MetricStoreSetup.java:105)
        at com.vnera.tools.metric.HbaseMetricStoreSetup.main(HbaseMetricStoreSetup.java:31)

Environment

vRNI 6.x

Cause

This issue can occurs due to environment issue where the hbase tables are not enabled or it was accidentally removed.

Resolution

Please contact Broadcom support.
