Registering an Avi Load Balancer cluster with an NSX Manager instance
Article ID: 373497
Updated On:
Products
Issue/Introduction
Avi Load Balancer requires to be registered with the NSX Manager in order to use Avi Load Balancer for Load Balancing services in a vSphere IaaS control plane environment (vSphere with Kubernetes, formerly know as TKGs).
The described issue is present when the following conditions are true:
● The Avi Controller Cluster was not deployed from the NSX Manager (non-VCF environments)
● The Avi Load Balancer was deployed on a VI-WLD using the VCF SDDC Manager (VCF 5.2 or higher). This procedure is not necessary for Avi Load Balancer deployed on the Management Domain
Environment
- VMware Avi Load Balancer (Controller cluster)
- VMware NSX Manager
- VMware Cloud Foundation 5.2 or higher (for VCF deployments)
Resolution
Prerequisites
Before you begin, collect the following information. Items (e) and (f) are optional.
| # | Parameter | Placeholder | Notes |
|---|---|---|---|
| a | NSX Manager IP address (WLD NSX Manager IP for VCF) | <nsx_mgr_ip> | Required |
| b | Avi Load Balancer cluster IP address | <cluster_ip> | Required |
| c | Avi Load Balancer admin username | <infra_admin_username> | Required |
| d | Avi Load Balancer admin password | <infra_admin_password> | Required |
| e | DNS servers | <dns_servers> | Optional |
f
| NTP servers | <ntp_servers> | Optional |
You also need the NSX Manager admin password to authenticate the API calls.
Step 1 — Prepare the Request Body
Replace the placeholders with the information you collected in the Prerequisites section.
{
"owned_by": "LCM",
"cluster_ip": "<cluster_ip>",
"infra_admin_username": "<infra_admin_username>",
"infra_admin_password": "<infra_admin_password>",
"dns_servers": ["<dns_server_ip>"],
"ntp_servers": ["<ntp_server_ip>"]
}
Step 2 — Submit the Onboarding Request
Use your preferred tool to make the API call. The following example uses curl:
curl -k --location -u 'admin:<nsx_manager_password>' \
--request PUT 'https://<nsx_mgr_ip>/policy/api/v1/infra/alb-onboarding-workflow' \
--header 'X-Allow-Overwrite: True' \
--header 'Content-Type: application/json' \
--data-raw '{
"owned_by": "LCM",
"cluster_ip": "<cluster_ip>",
"infra_admin_username": "<infra_admin_username>",
"infra_admin_password": "<infra_admin_password>",
"dns_servers": ["<dns_server_ip>"],
"ntp_servers": ["<ntp_server_ip>"]

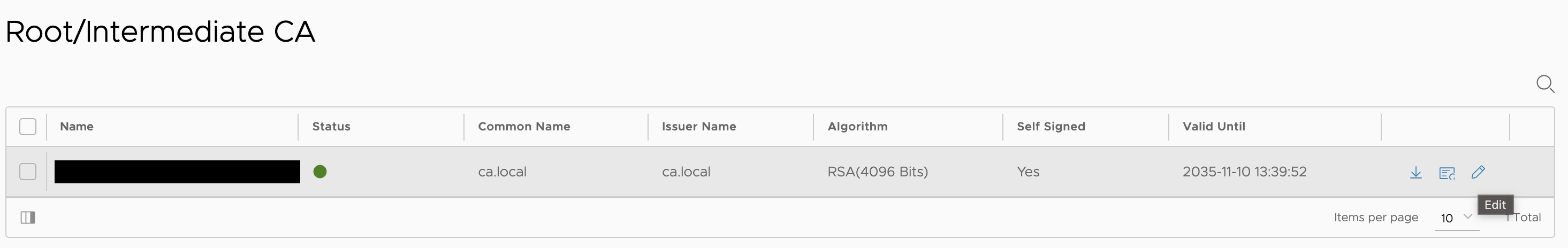

"default_cert": false
}'Example Response:
Example Response:
{
"connection_info": {
"username": "nsxt-alb",
"tenant": "admin",
"expires_at": "2021-08-30T23:47:58.275Z",
"enforcement_point_address": "<ip address>",
"resource_type": "AviConnectionInfo",
"certificate": "-----BEGIN CERTIFICATE-----\n CERTIFICATE VALUE \n-----
END CERTIFICATE-----\n"
},
"auto_enforce": true,
"resource_type": "EnforcementPoint",
"id": "alb-endpoint",
"display_name": "alb-endpoint",
"path": "/infra/sites/default/enforcement-points/alb-endpoint",
"relative_path": "alb-endpoint",
"parent_path": "/infra/sites/default",
"unique_id": "#####-####-########-#####",
"realization_id": "#####-####-########-#####",
"marked_for_delete": false,
"overridden": false,
"_system_owned": false,
"_create_user": "admin",
"_create_time": 1630345678736,
"_last_modified_user": "admin",
"_last_modified_time": 1630345678736,
"_protection": "NOT_PROTECTED",
"_revision": 0
}
Step 3 — Verify the Registration
Confirm that the enforcement point was created by running a GET against the ALB endpoint:
curl -k -u 'admin:<nsx_manager_password>' \
--location --request GET \
'https://<nsx_mgr_ip>/policy/api/v1/infra/sites/default/enforcement-points/alb-endpoint'
In the response, confirm that status is set to DEACTIVATE_PROVIDER. This indicates that registration completed successfully and the Avi provider is registered with NSX Manager.
Example:
root@nsx-manager:~# curl -k -u 'admin:NSX-Manager-password' --location --request GET
https://<nsx-mgr-ip>/policy/api/v1/infra/sites/default/enforcement-points/alb-endpoint
{
"connection_info" : {
"username" : "\u0000\u0000\u0000\u0000\u0000\u0000\u0000\u0000",
"tenant" : "admin",
"expires_at" : "2024-07-25T21:00:05.679Z",
"managed_by" : "LCM",
"status" : "DEACTIVATE_PROVIDER",
"certificate" : "-----BEGIN CERTIFICATE-----\nMIIC3TC===Omitted===iU=\n-----END
CERTIFICATE-----\n",
"is_default_cert" : true,
"enforcement_point_address" : "<ip address>",
"resource_type" : "AviConnectionInfo"
},
"auto_enforce" : true,
"resource_type" : "EnforcementPoint",
"id" : "alb-endpoint",
"display_name" : "alb-endpoint",
"path" : "/infra/sites/default/enforcement-points/alb-endpoint",
"relative_path" : "alb-endpoint",
"parent_path" : "/infra/sites/default",
"remote_path" : "",
"unique_id" : "#####-####-########-#####",
"realization_id" : "#####-####-########-#####",
"owner_id" : "#####-####-########-#####",
"marked_for_delete" : false,
"overridden" : false,
"_system_owned" : false,
"_create_time" : 1715813282536,
"_create_user" : "admin",
"_last_modified_time" : 1721919605807,
"_last_modified_user" : "system",
"_protection" : "NOT_PROTECTED",
"_revision" : 353
Removing the Integration (Optional)
If you need to delete the Avi–NSX integration, run the following API call:
curl -k --location -u 'admin:<nsx_manager_password>' \
--request DELETE \
'https://<nsx_mgr_ip>/policy/api/v1/infra/alb-onboarding-workflow/LCM'References:
