Generate Aggregated Event Alarm

Products

• DX NetOps

Issue/Introduction

In Performance Management needs to create an aggregated alarm only for 4 or 5 interface from multiple devices

Environment

Performance Management 23.3.8 and higher

Cause

Needs to receive event alarms from a group of aggregated interfaces

Resolution

Example

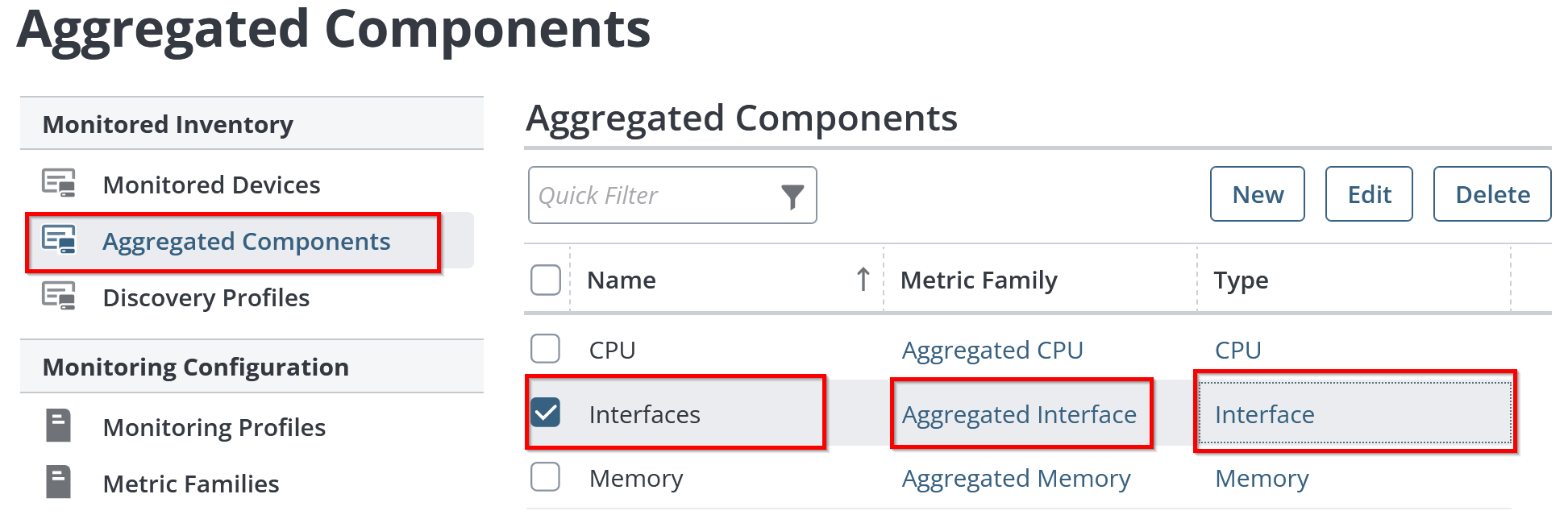

• Create an Aggregated Component Interface and select the interface that you want

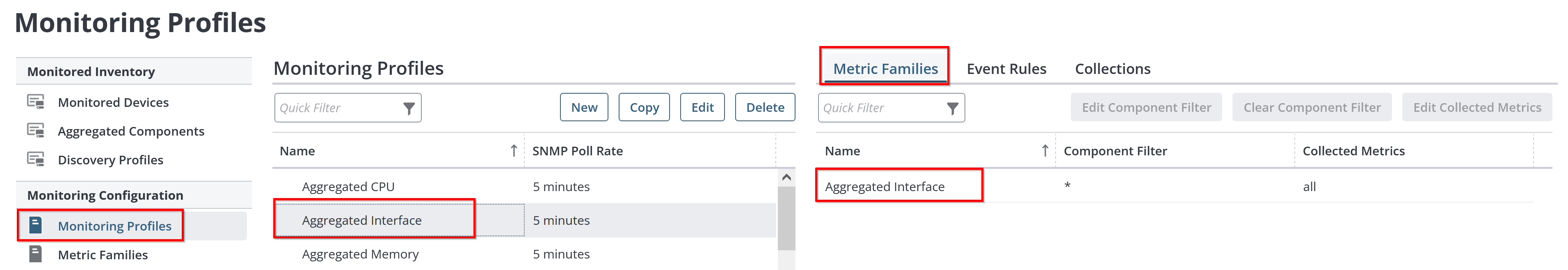

• Create a Monitor Profile Aggregated Interface, add the Aggregated Interface Metric Family and add Collection

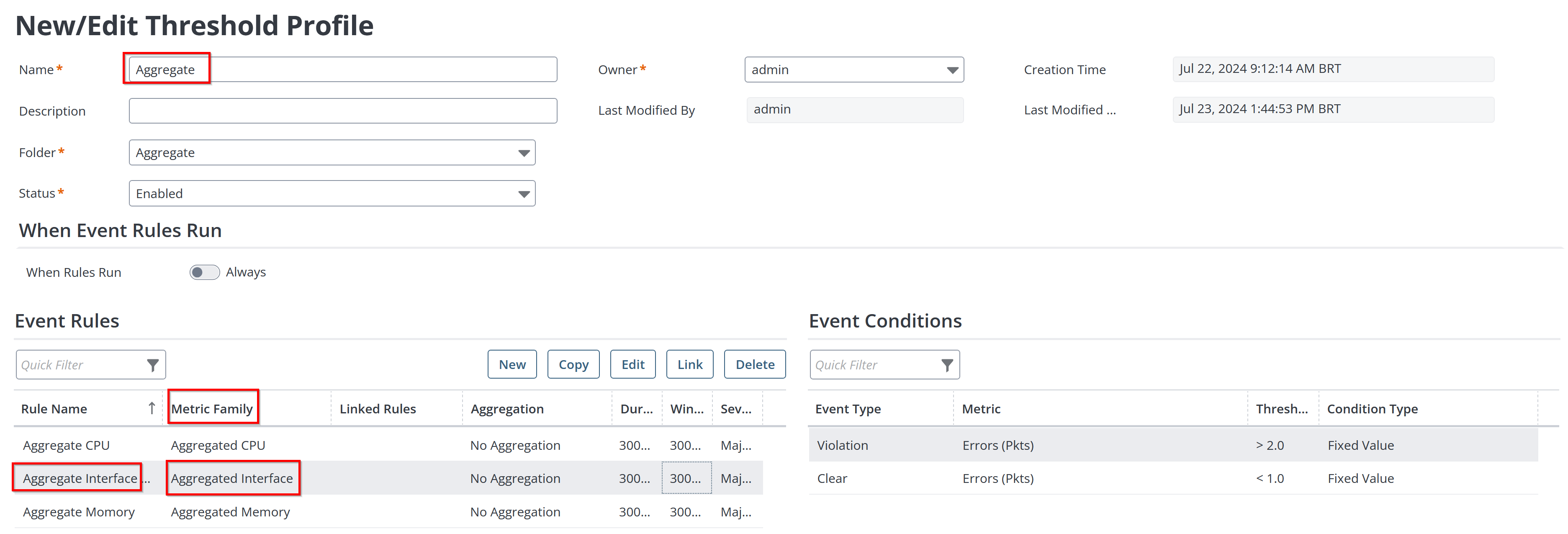

• Create a Threshold Profiles Aggregate Interface using Aggregated Interface Metric Family

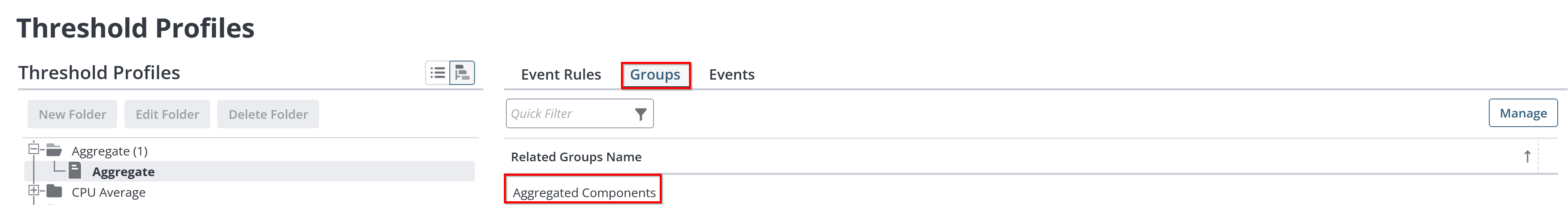

• Add the Aggregated Components in Groups

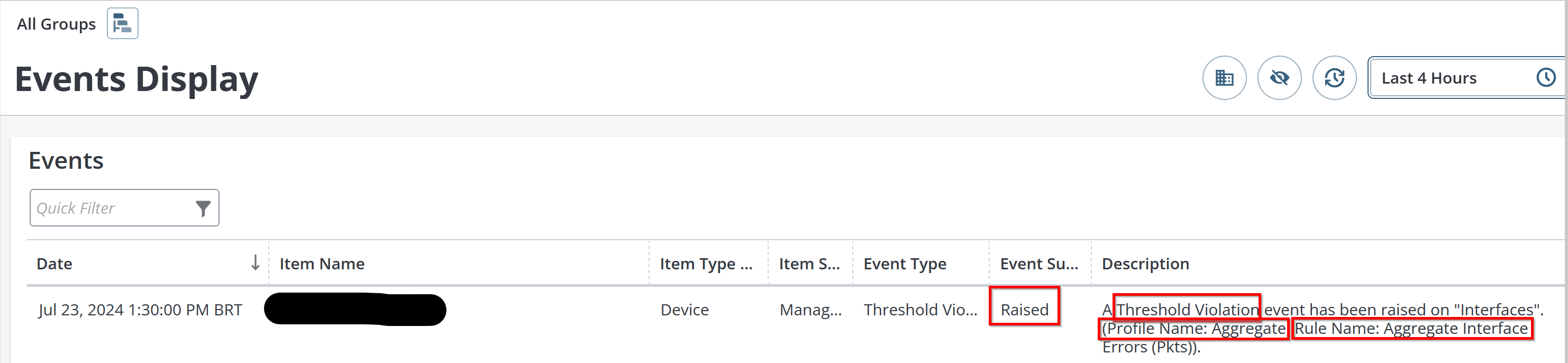

• Now you can see in Events Display the Threshold Violation event message:

Additional Information

See Manage Aggregated Components guide
