Root access denied while setting up an SSH session for a ESXi host

Products

• VMware vSphere ESX 6.x
• VMware vSphere ESX 7.x
• VMware vSphere ESX 8.x

Issue/Introduction

Unable to take a SSH session on an ESXi host while using root credentials.

Cause

Manual user changes are made to the sshd_config file of the ESXi host which some customers would not be aware of. If the changes are made manually to ensure users are restricted to setup a SSH session would need to be relayed to the customer else will need to find the differences made to the sshd_config file made for the host in question with that of a working host's sshd_config file to resolve the issue.

Resolution

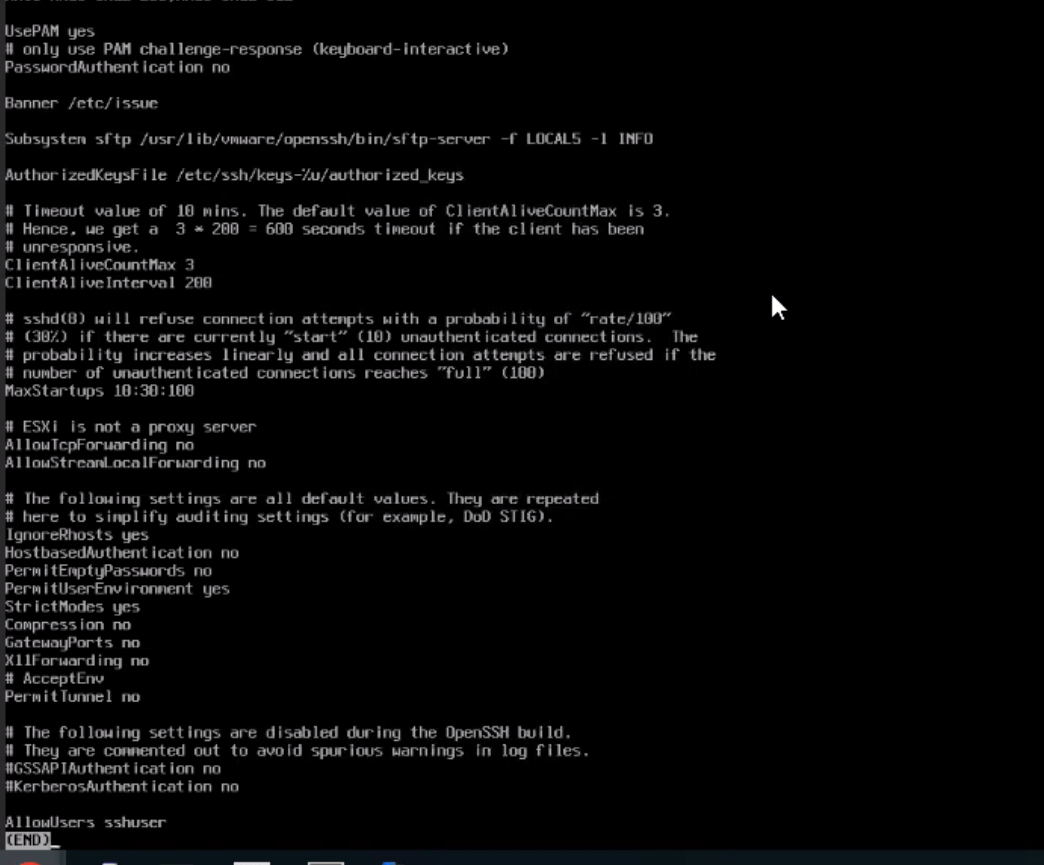

Non-working host:



Working host:

• Take a backup of the sshd-config file located in /etc/ssh location for the host in question



• Compare the sshd_config file residing in /etc/ssh/ location of a working host with the not working host.

  • In working host, the following parameter PermitUserEnvironment was set to no and in non-working host observed the parameter PermitUserEnvironment was set to yes.
  • Change PermitUserEnvironment to no in the non-working host.
  • And in the last line of the sshd_config file in the non-working host observed the following line AllowUsers sshuser while in the working host the aforementioned line wasn't present.
  • Remove the last line that is AllowUsers sshuser in the non-working host.

Additional Information

The changes made to the sshd_config file of the host needn't be the same. Compare the changes made on the sshd_config of the non-working host with the working host's sshd_config file.
