OpenShift pods seem OK but don't connect to local UIM: Error creating: pods "cadvisor-" is forbidden:

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)
• CA Unified Infrastructure Management On-Premise (Nimsoft / UIM)
• CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

While deploying openshift to the OpenShift environment, and correcttly set up config-map and all pods restarted no connections are showing.

There are errors against some pod creation attempts:

Error creating: pods "cadvisor-" is forbidden: unable to validate against any security context constraint:
[provider "anyuid": Forbidden: not usable by user or serviceaccount,
spec.volumes[0]: Invalid value: "hostPath": hostPath volumes are not allowed to be used,
spec.volumes[1]: Invalid value: "hostPath": hostPath volumes are not allowed to be used,
spec.volumes[2]: Invalid value: "hostPath": hostPath volumes are not allowed to be used,
spec.volumes[3]: Invalid value: "hostPath": hostPath volumes are not allowed to be used,
spec.volumes[4]: Invalid value: "hostPath": hostPath volumes are not allowed to be used,
provider restricted-v2: .containers[0].privileged: Invalid value: true: Privileged containers are not allowed,
provider "restricted": Forbidden: not usable by user or serviceaccount, provider "nonroot-v2": Forbidden: not usable by user or serviceaccount,
provider "nonroot": Forbidden: not usable by user or serviceaccount,
provider "hostmount-anyuid": Forbidden: not usable by user or serviceaccount,
provider "machine-api-termination-handler": Forbidden: not usable by user or serviceaccount,
provider "hostnetwork-v2": Forbidden: not usable by user or serviceaccount,
provider "hostnetwork": Forbidden: not usable by user or serviceaccount,
provider "hostaccess": Forbidden: not usable by user or serviceaccount,
provider "node-exporter": Forbidden: not usable by user or serviceaccount,
provider "privileged": Forbidden: not usable by user or serviceaccount]

Environment

• DX UIM 23.4.*
• Openshifft probe 1.02

Cause

•  By default, the Prometheus pod tries to write data to the data/directory and it is failing with permission denied error

Resolution

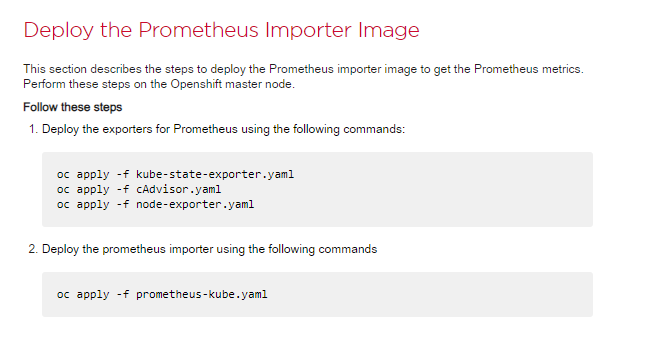

To handle this issue in the scenario where the permission issues exist, it is possible to deploy replace the prometheus-kube.yaml default file with the one attached to this Article.

Openshift Monitoring (broadcom.com)
