Security Warning -HSTS missing for Wily Introscope 10.8.1.6 in Windows Sever 2019-This is SAP release specific issue

Products

• CA Application Performance Management (APM / Wily / Introscope)

Issue/Introduction

SAP customer is facing a security warning whenever they run Introscope detail description as below



Security Warning Screenshot:

*************************************

The mentioned Port 8082 is APM Introscope WebView port . More details

 Network Diagnosis showing HSTS missing from Response Header while accessing Introscope Screenshot:

******************************************************************************************

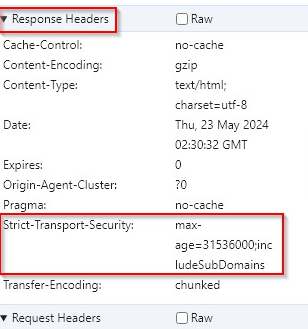

Expected response Header Sample Screenshot:

**************************************************













Environment

Introscope EM version 10.8.1.6

Windows server 2019 Standard version 1809 with OS build 17763.5576.

Java Version:  11.0.16 (Java 1)

Resolution

Manual steps to rectify the issue:

*****************************************

Please add the new insterHandler tag(as below) to em-jetty-config.xml on Enterprise Manager after the 1st one and re-start the enterprise manager . Please take a back up of the em-jetty-config.xml  before the change .

<Call name="insertHandler">
    <Arg>
      <New id="RewriteHandler" class="org.eclipse.jetty.rewrite.handler.RewriteHandler">
		<Set name="rules">
		  <Array type="org.eclipse.jetty.rewrite.handler.Rule">
			 <Item>
				<New id="header" class="org.eclipse.jetty.rewrite.handler.HeaderPatternRule">
				   <Set name="pattern">/*</Set>
				   <Set name="name">Strict-Transport-Security</Set>
					<Set name="value">max-age=31536000;</Set>
				</New>
			 </Item>
		  </Array>
	   </Set>
	</New>
    </Arg>
  </Call>



Questions:

****************

1: Why SAP specific?

This is only specific to SAP. The normal agent version will pick from webview-jetty-config not the em-jetty-config.

2:Will this manual fix be overwritten in the future patch/upgrade?

Yes, currently it is manual.

3:Will this fix include in future version?

Yes, once it is confirmed it will be include in the next upcoming SAP release.

Additional Information

For Normal user HSTS details are as below

************************************************

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/application-performance-management/10-7/administrating/configure-ca-apm-command-center/ssl-or-tls-settings.html

https://knowledge.broadcom.com/external/article/105898/apm-107-hotfixes.html
