Spectrum as DataSource Test is not responding

Products

• DX NetOps
• CA Performance Management - Usage and Administration
• CA Spectrum

Issue/Introduction

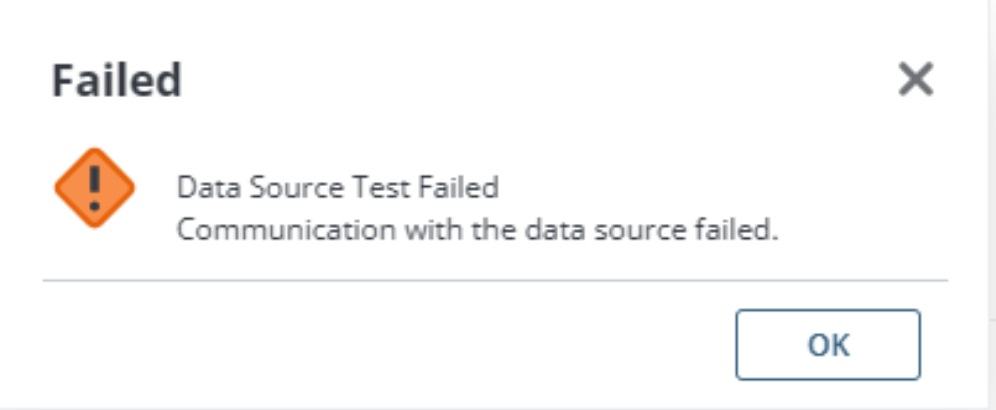

Trying to add the Spectrum as DataSource on NetOps Performance Management Portal and receive the message Data Source Test Failed



And in PC log file:

INFO  | qtp883980256-24          | AAAA-MM-DD HH:MM:SS,138 | com.ca.im.portal.api.services.datasource.DataSourcePoll
      | Test DataSource: Spectrum Infrastructure [email protected]
WARN  | qtp883980256-24          | AAAA-MM-DD HH:MM:SS,166 | com.ca.im.portal.api.services.datasource.RequestRetryHandler
      | Received WebServiceException cause: java.net.ConnectException: ConnectException invoking http://Spectrum.com:8080/axis2/services/DataSourceWS: Connection refused; retrying, attempt 2
ERROR | qtp883980256-24          | AAAA-MM-DD HH:MM:SS,170 | com.ca.im.portal.api.services.datasource.DataSourcePoll
      | Received WebServiceException from version check for data source Spectrum Infrastructure [email protected].  CAUSE=java.net.ConnectException: ConnectException invoking http://Spectrum.com:8080/axis2/services/DataSourceWS: Connection refused. MESSAGE=Could not send Message..  Returning DS_UNAVAILABLE result.

stdout.log file

AAAA-MM-DD HH:MM:SS,843 [main] INFO  org.apache.coyote.http11.Http11NioProtocol - Starting ProtocolHandler ["http-nio-80"]

Environment

DX NetOps all version

Cause

The OneClick is on Windows, so Tomcat's default port is 80

Resolution

Need to use the Port 80 in DataSoure
