Troubleshooting Federated Aria Operations vSphere World object's Data Collection Failure

Products

• VMware Aria Suite

Issue/Introduction

• This article describes a scenario where a Federated Aria Operations instance fails to collect and display data for a specific Aria Operations account in the Environment > Inventory > Object Types > vSphere World section.

Environment

• Aria Operations 8.x
• vRealize Operations 8.x

Cause

• The root cause of the data collection failure was an unhealthy vSphere World object within the Aria Operations instance being monitored.
• This object will be in a "Not collecting" state, indicating an issue with the Container Adapter Instance responsible for communication with vCenter.

Resolution

• Verify vSphere World Object Health:

  • Access the Aria Operations instance experiencing the issue.
  • Navigate to the vSphere World object within the Aria Operations interface from Environment > Inventory > Object Types > vSphere World section.
  • Check if the object is in a healthy state (typically indicated by a green Check (✔︎) mark).



• Restart Container Adapter Instance:

  • If the vSphere World object is unhealthy, Restart the Container Adapter Instance within the Aria Operations instance.

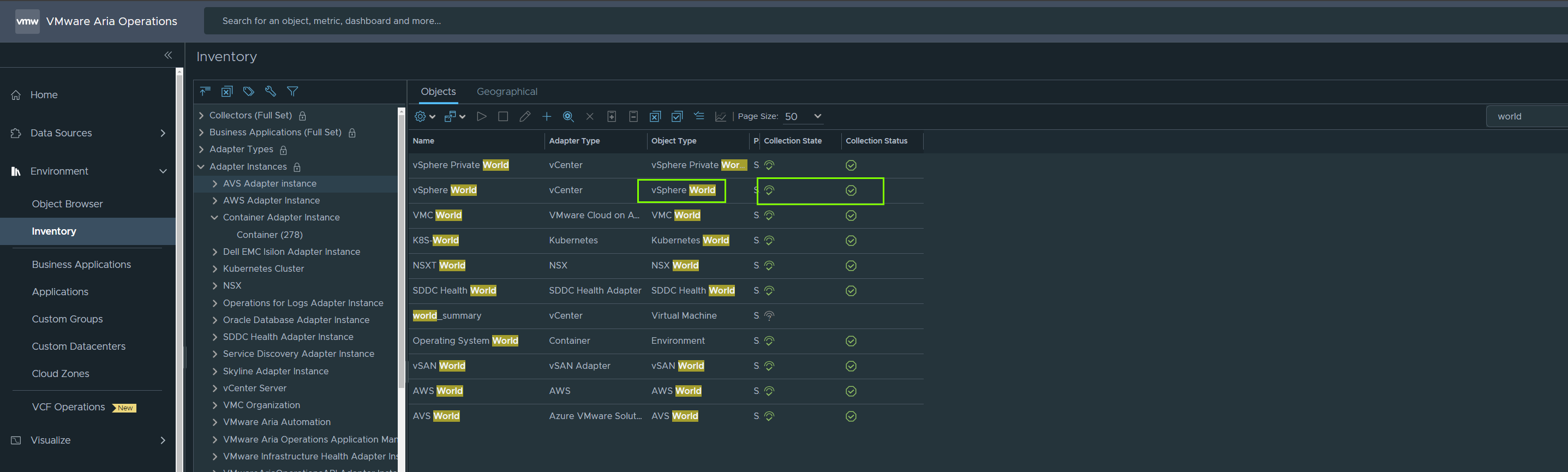

  • This can be done from the Environment > Inventory > Adapter Instance > Container section. (As shown in the Screenshot below)



E.g. of Non-Working vSphere World object:



E.g. of Working vSphere World object:

Additional Information

• Ensure proper configuration and connectivity between the Federated Aria Operations and Aggregated Aria Operations instances.
• Verify that the Aggregator Adapter version is compatible with the Aria Operations version.
• Taking snapshots before performing upgrades on Aria Operations is highly recommended.
