CMDB Visualizer Error: Unable to perform specified action

Products

• CA Service Management - Service Desk Manager
• CA Service Desk Manager

Issue/Introduction

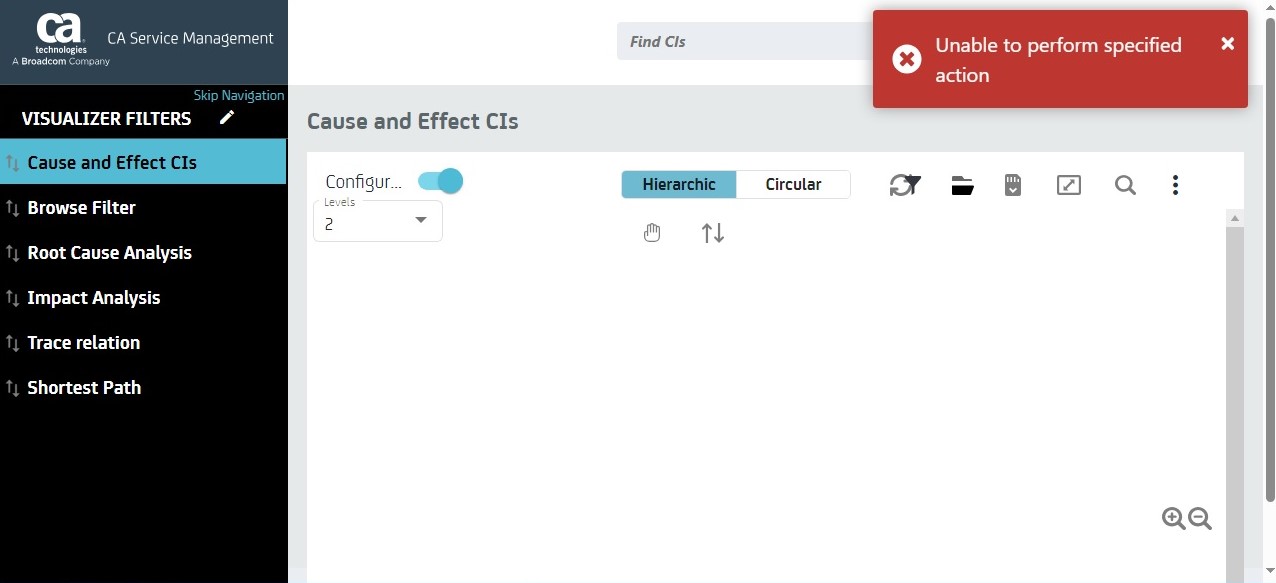

When attempting to view any graph within CMDB Visualizer, following error is received:

Environment

CA Service Desk Manager 17.3 RU1 and higher

All Supported Operating Systems

Cause

Data corruption in MDB table ca_cmpny (SQL Table name: ca_company)

Resolution

After enabling debug tracing for CMDB Visualizer, entries similar to the following are seen in the visualizerMS_debug.log file :

DEBUG - [com.ca.casm.sdm.SdmProducerUtil] - For (ca_cmpny) working on Majic attribute: sym
DEBUG - [com.ca.casm.sdm.SdmProducerUtil] - Attribute value is null, skipping...

These errors indicate that there are entries where sym name (column name in SQL is: company_name) is null or not present even though it is a REQUIRED field.

Must update the entries for which sym name is null to some random name via a direct SQL query.

After fixing the missing data, either restart the SDM Service or the Visualizer Tomcat process.
