There can be many ways to determine if Policy Server is running but whether it is functional is a different topic.
One simple way is to use SiteMinder SDK bundled "{SDK}\samples\smjavaagentapi"
"{SDK}\properties\smjsdksample.properties" file must be updated accordingly so the transaction would be successful and the necessary userstore/domain/realm/rule/policy must be configured.
Create:
jsdksample-agent (4.x agent)
jsdksample-userdir (User Directory which has a sample user named "healthcheck")
jsdksample-domain (Domain to associate above user directory)

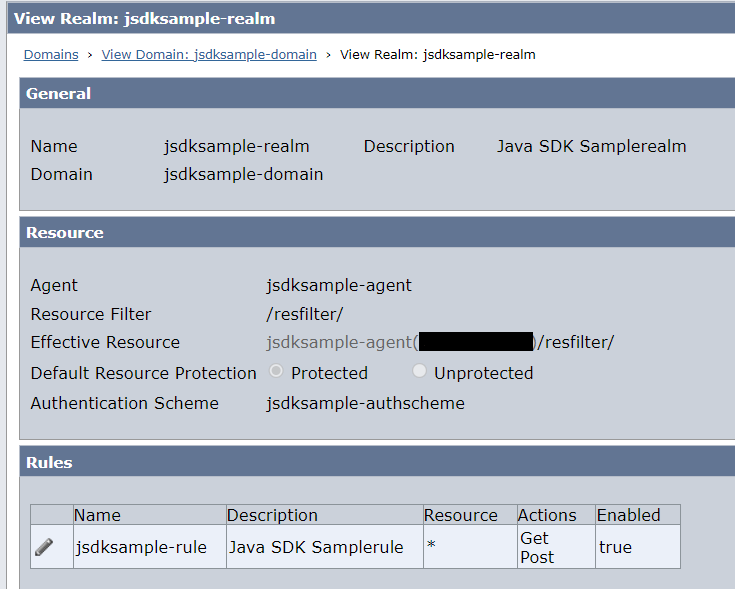

jsdksample-realm (Resource Filter = /resfilter/)
jsdksample-rule (rule for Resource=* and for action GET and POST)
jsdksample-policy (Policy to bind the jsdksample-rule and the healthcheck user)
Compile and run the script.
java-build.bat
java-run.bat
In the selection menu, enter "1" for 4.x agent type.
Then you will see the request is sent to that specific policy server defined in the "{SDK}\properties\smjsdksample.properties"
You will see all "IsProtected", "IsAuthenticated" and "IsAuthorized" calls.
Sample output:
c:\SDK\samples\smjavaagentapi>java -Djava.library.path=..\..\bin -classpath .;..\..\properties;..\..\java\smjavasdk2.jar;..\..\java\smjavaagentapi.jar JavaTestClient
Welcome to the Interactive FTP Server
-------------------------------------
Do you want to connect through:
(1) 4.x Agent Interface
(2) 5.x Agent Interface(smreghost utility must be run before it)
-------------------------------------
Enter the Agent type(1/2) to connect:
1
>>>>>>>>>>>>> SiteMinder Java Agent API Sample <<<<<<<<<<<<<
++ Initialization ++
Policy Server IP Address.................: 127.0.0.1
Agent IP Address.........................: 127.0.0.1
Agent Name...............................: jsdksample-agent
Agent Shared Secret......................: secret
______________________________________________________________
++ SetAgentInstanceInfo ++
DoManagement (SET_AGENT_INSTANCE_INFO)...: 1 (YES)
______________________________________________________________
++ DoManagement ++
DoManagement (GET_AGENT_COMMANDS)........: 1 (YES)
______________________________________________________________
++ IsProtected ++
Resource Name............................: /resfilter/private.html
Action...................................: GET
IsProtected..............................: 1 (Resource is Protected)
Realm Name...............................: jsdksample-realm
Realm OID................................: 06-e78406e4-3d85-4cfd-b864-17a449b1da7b
______________________________________________________________
++ Authentication ++
Login....................................: 1 (YES)
Session ID...............................: {SessionID}
Session Spec.............................: {SessionServerSpec}
Attributes...............................: 167 ÿÿÿÿ
218 uid=healthcheck,ou=HealthCheck,o=Example
152 healthcheck
151 0e-56cf2811-f315-44a9-a85a-ce9dfb48a2ad
213 jsdksample-userdir
214 jsdksample-host
215 LDAP:
______________________________________________________________
++ Authorization ++
Authorized...............................: 1 (YES)
Session ID...............................: {SessionID}
Session Spec.............................: {SessionServerSpec}
Attributes...............................: 167 ÿÿÿÿ
218 uid=healthcheck,ou=HealthCheck,o=Example
152 healthcheck
151 0e-56cf2811-f315-44a9-a85a-ce9dfb48a2ad
213 jsdksample-userdir
214 jsdksample-host
215 LDAP:
Attributes after update..................: 146
147
______________________________________________________________
++ SSO Token ++
Create SSO Token.........................: 0 (SUCCESS)
Session Token............................: {SessionServerSpec}
Decode SSO Token.........................: 0 (SUCCESS)
Token Version............................: 401
Thirdparty Token.........................: true
Attributes from Token....................: 200 jsdksample-agent
218 uid=healthcheck,ou=HealthCheck,o=Example
209 {SessionServerSpec}
205 {SessionID}
210 healthcheck
208 127.0.0.1
225 3600
226 5400
154 1716165170
155 1716165170
228 SM
Update SSO Token.........................: 0 (SUCCESS)
Attributes from Token....................: 200 jsdksample-agent
218 uid=healthcheck,ou=HealthCheck,o=Example
209 {SessionServerSpec}
205 {SessionID}
210 healthcheck
208 127.0.0.1
225 3600
226 5400
154 1716165170
155 1716165170
228 SM
______________________________________________________________
++ Cleanup ++
Logout...................................: 1 (YES)
UnInit...................................: 0 (SUCCESS)
>>>>>>>>>>>>>>>>>>>>>>>>>>>> End <<<<<<<<<<<<<<<<<<<<<<<<<<<
|
