Troubleshooting VCF Configuration Drifts

Products

• VCF Operations/Automation (formerly VMware Aria Suite)

Issue/Introduction

Configuration Management allows you to view and monitor all VCF deployments and their configuration specifications in one place. This feature is a part of the new VCF admin console.

This article provides information about what could have gone wrong, troubleshooting tips, and information about contacting support.

Environment

VMware Aria Operations 8.18
VMware Cloud Foundation 5.2.x

Resolution

Table of Contents

• Template Creation Section
• Drift Check Section
• Overview Section

Template Creation Section

Issue 1: A specific vCenter Server is not present in the drop-down list to extract the Configuration Settings during Step 2 of Create Config Template.

Possible causes:

• vCenter Server is not in the supported version; it should be at least 8.0 U3.
• vCenter Server is not registered to a Cloud Proxy.
  • Please reference Configuring Cloud Proxies in VMware Aria Operations.
• vCenter Server is not reachable from the Cloud Proxy.
  • Please reference Cloud Proxy Troubleshooting.



Issue 2: Error occurred while retrieving Configuration Settings from the selected VC.

Possible causes:

• vCenter Server is not reachable from the Cloud Proxy. Please reference Cloud Proxy Troubleshooting.
• Config Module is not running (See 'How to check whether the Config Module service is in running mode' on how to check if Config Module is running).

Remediation:

• Contact Broadcom Support if the Adapter is unable to recover from the ERROR state or the Config Module is not running.



Issue 3: Unable to view any Configuration Settings from the selected VC in the Config Template Preview pane.

Possible cause:

• vCenter Server is registered with an account that does not have Administrator privileges in vCenter.
  • Solution: The user with which the vCenter server is registered with the cloud proxy must be part of the Administrators group in vCenter.



Drift Check Section

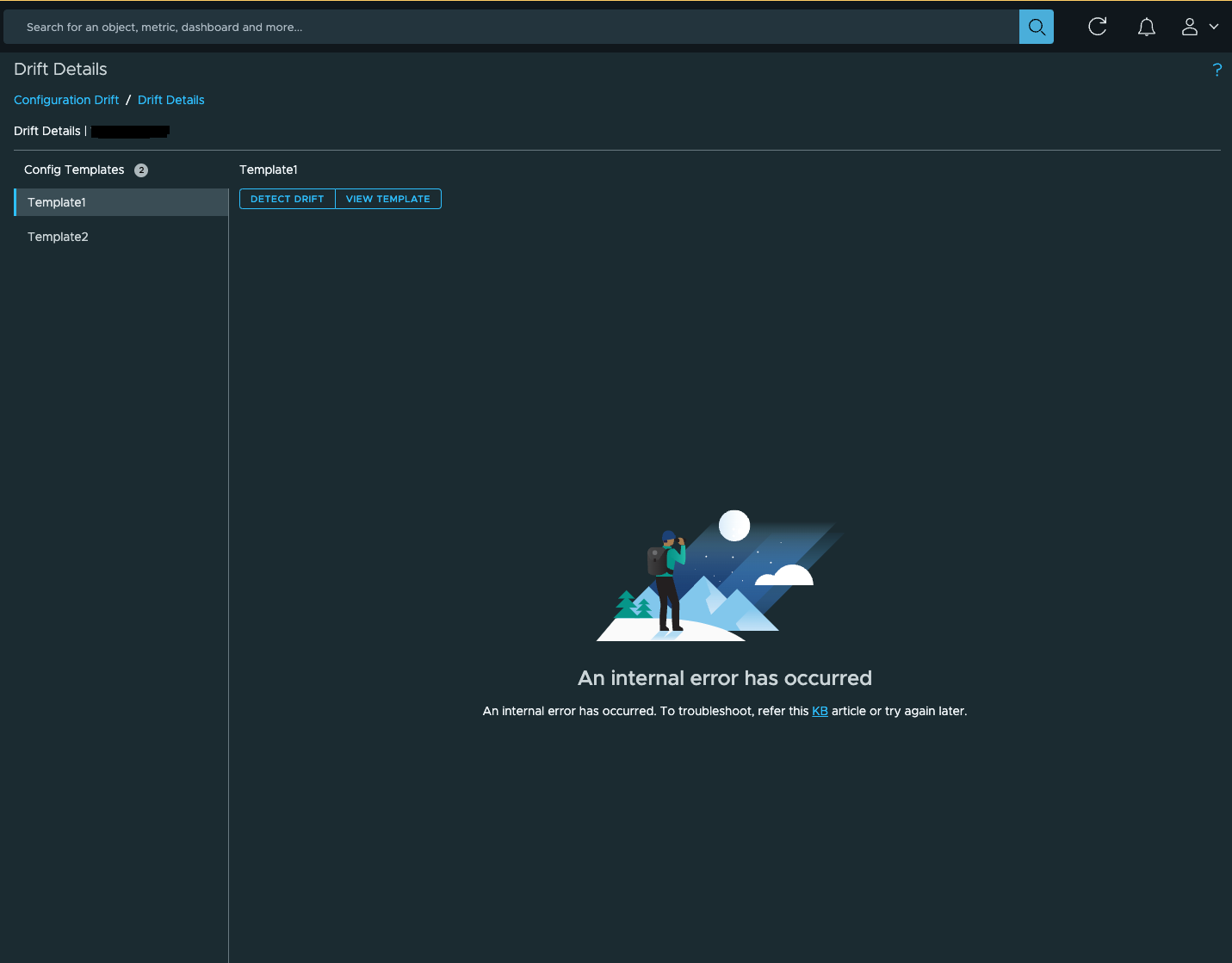

Issue 1: Drift Check Failed with error: "An internal error has occurred".

Possible Causes:

• vCenter Server is not reachable from Cloud Proxy.
  • Please reference Cloud Proxy Troubleshooting.
• Config Module service is not running. (See Appendix on how to check if Config Module is running).

Remediation:

• Contact Broadcom Support if the Adapter is unable to recover from the ERROR state or the Config Module is not running.



Issue 2: The Drift Check has been in progress for a long time.

Note: The user will be notified in the UI client with the message: Drift check in progress...

Possible Causes:

• Multiple vCenter Server drifts may be triggered at the same time. The check will be completed only when all the vCenter drifts are completed.
• The system failed to update the task status due to connectivity failure with the Cloud Proxy.

Remediation:

• Retry Drift Check with fewer VCs selected once the currently running task fails after the configured timeout of one hour.



Overview Section

Issue: Several vCenter Servers have drift status as UNAVAILABLE.

Possible cause:
The vCenter Server drift status can be UNAVAILABLE for the reasons listed below:

• Drift check is in progress (refer to Drift Check Progress issue above).
• Drift check errored (refer to Drift Check Section above).
• Drift check was never performed.

If nothing from the remediations or information above helps to resolve your issue, please Contact Broadcom Support.



Appendix

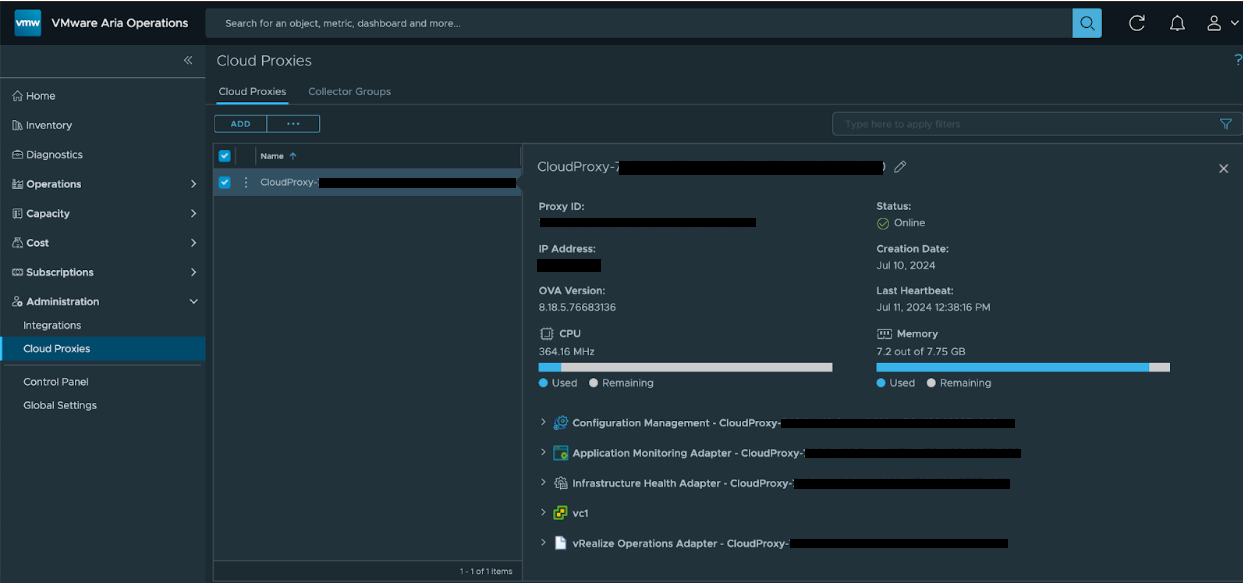

How to check whether the Configuration Management Adapter is Healthy:

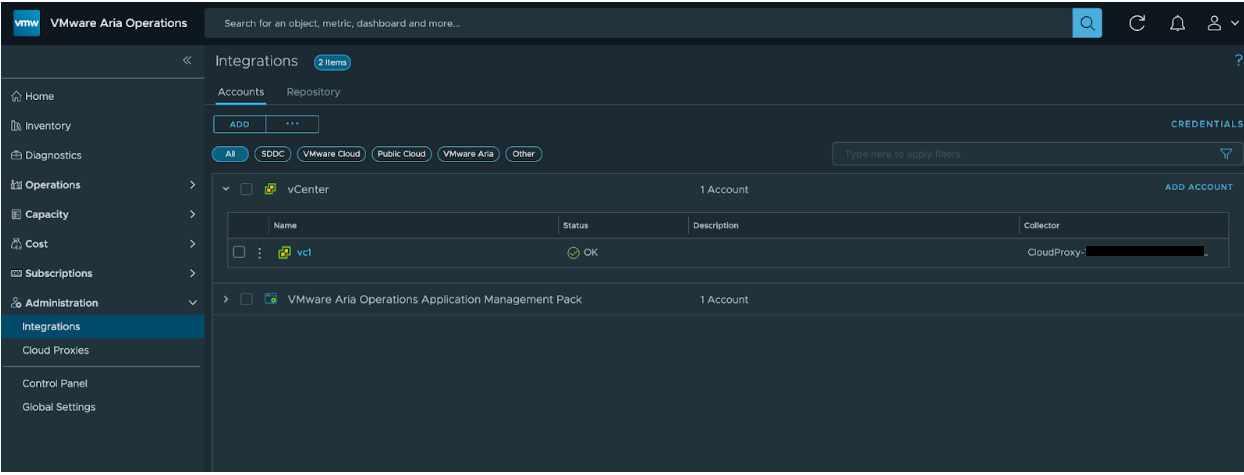

How to check whether VC is reachable and in Collecting state:

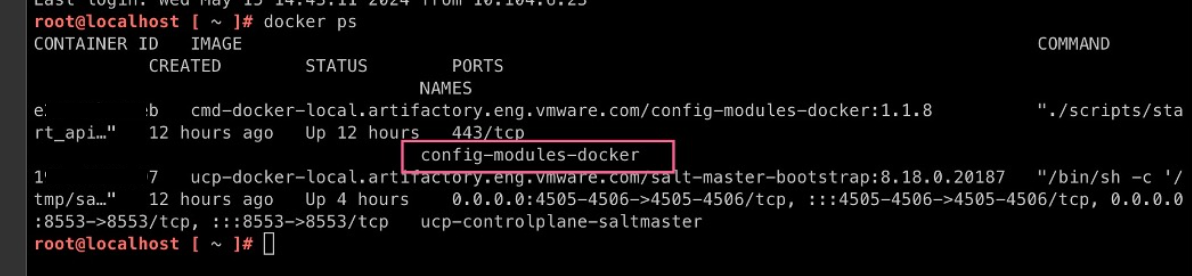

How to check whether the Config Module service is in running mode:

1. Log into the Aria Operations Cloud Proxy node as root via SSH.
2. Run the following command to see the status of the Config Module service: docker ps

Additional Information

For additional assistance - Contact Broadcom Support
