EDAA URL unable to pick up notification having "/" in name attribute; 404 Not Found

Products

• VMware Smart Assurance
• Network Observability

Issue/Introduction

Symptoms:

Notification with / in name attribute is not processed by EDAA and throws error 404 - Not found.

Example notifications :
IF-<InterfaceName>/18 [Description]
TEMP-<TempName>/1012 [Description]
IF-<InterfaceName>/10_Down

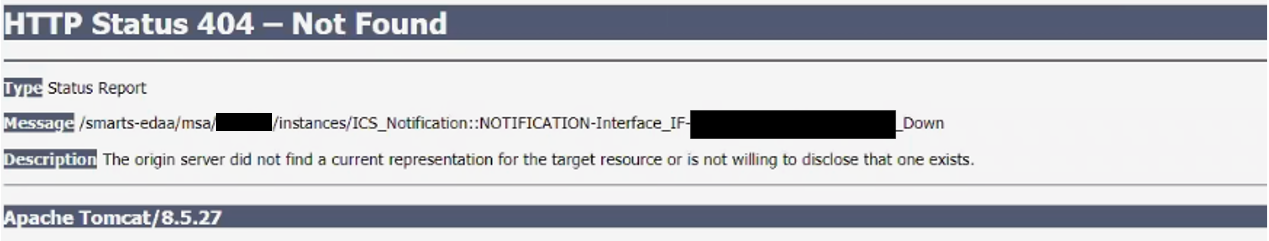

Error observed:

HTTP Status 404 - Not found

Environment

All Supported Smarts versions

Cause

• According to RFC 3986 (RFC986_Link), below special characters are reserved as sub-delimiters.

reserved = gen-delims / sub-delims
gen-delims = ":" / "/" / "?" / "#" / "[" / "]" / "@"
sub-delims = "!" / "$" / "&" / "'" / "(" / ")" / "*" / "+" / "," / ";" / "="

• Thus tomcat disables encoded slashes for security reasons by default.


• In Smarts, post request looks as below:

http://<TomcatURL>:<Port>/smarts-edaa/msa/servicename/instances/className::instanceName/action/action_name

• Hence when a notification contains "/" in URL; Smarts is expecting it as action.

Resolution

• Edit file catalina.properties located under <SAM_BASE>/smarts/tomcat/conf/ and add line:

org.apache.tomcat.util.buf.UDecoder.ALLOW_ENCODED_SLASH=true

• Restart tomcat for changes to take effect

./sm_service stop smarts-tomcat
./sm_service start smarts-tomcat

Workaround:

In case, if restart of tomcat is not possible due to production environment then use ~2F in the URL for "/" for time being.
Example: http://localhost:8080/smarts-edaa/msa/INCHARGE-SA/instances/ICS_Notification::NOTIFICATION-Interface_PerformanceCiscoRouter_I-InterfacePerformanceCiscoRouter-IF-<InterfaceName>~2F18_HighUtilization"

Additional Information

Impact/Risks:

Unable to create tickets in third party ticking tools (ServiceNow) where Smarts-EDAA acts as source.
