Determining expired SSL certificates in vCenter Server and ESXi 6.x and 7.0.x

Products

• VMware vCenter Server
• VMware vSphere ESXi
• VMware vCenter Server 8.0
• VMware vCenter Server 6.0
• VMware vCenter Server 7.0

Issue/Introduction

This article provides steps to find expired vCenter Server and ESXi certificates.

Environment

VMware vCenter Server 6.x
VMware vCenter Server 8.0.x
VMware vCenter Server 7.0.x

Resolution

Checking the expiration date of vCenter Server certificates
Checking the expiration date of ESXi certificates

Checking the expiration date of vCenter Server certificates

1. Check the Single Sign-on Token Signing (STS) certificate, see Checking Expiration of STS Certificate on vCenter Server.
2. Run the command for your environment:

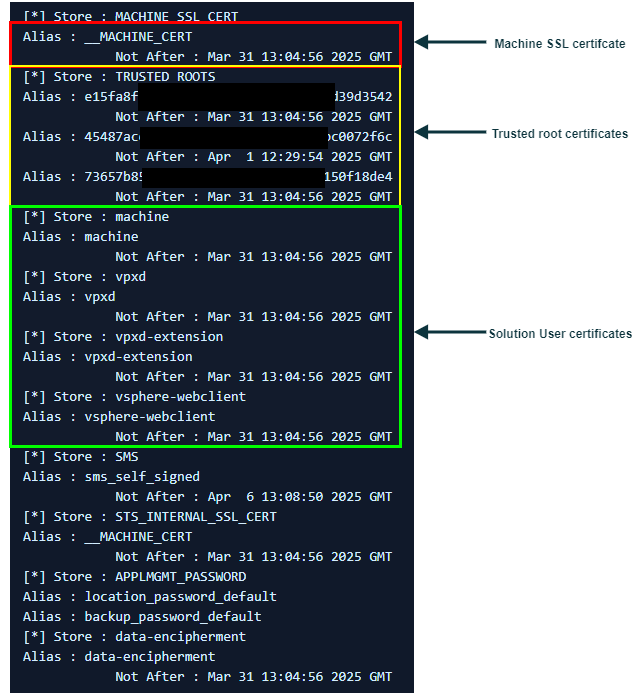

• vCenter Appliance: Run the following command in a console window or SSH session to the vCenter VM:

for store in $(/usr/lib/vmware-vmafd/bin/vecs-cli store list | grep -v TRUSTED_ROOT_CRLS); do echo "[*] Store :" $store; /usr/lib/vmware-vmafd/bin/vecs-cli entry list --store $store --text | grep -ie "Alias" -ie "Not After";done;

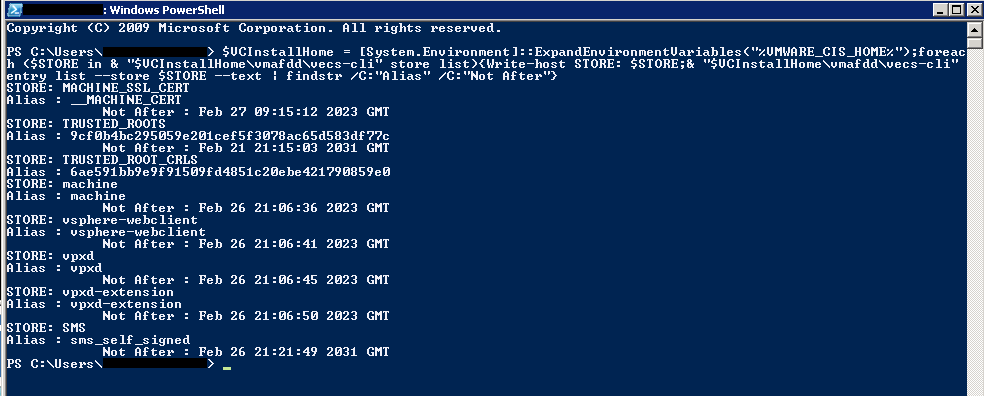

• vCenter Windows: Run the following command from the vCenter VM console, RDP session, or physical device using PowerShell:

$VCInstallHome = [System.Environment]::ExpandEnvironmentVariables("%VMWARE_CIS_HOME%");foreach ($STORE in & "$VCInstallHome\vmafdd\vecs-cli" store list){Write-host STORE: $STORE;& "$VCInstallHome\vmafdd\vecs-cli" entry list --store $STORE --text | findstr /C:"Alias" /C:"Not After"}

   3. Look at the list to see if any of the certificates are expired.



Checking the expiration date of ESXi certificates

1. Using SSH log into ESXi as the root user.
2. Run this command:

   openssl x509 -noout -in /etc/vmware/ssl/rui.crt -enddate

   For example

   openssl x509 -noout -in /etc/vmware/ssl/rui.crt -enddate
   notAfter=Aug 24 21:48:47 2023 GMT




   To renew or refresh certificates see:
   Renew or Refresh ESXi Certificates





Additional Information



• Using ESXi Shell in ESXi 5.x, 6.x and 7.x (2004746)
• CertificateStatusAlarm - There are certificate that expired or about to expire/Certificate Status Change Alarm Triggered on VMware vCenter Server
• View Certificate Expiration Information for Multiple ESXi Hosts
• Renew or Refresh ESXi Certificates
• Certificate Management for ESXi Hosts

Impact/Risks:

Warning:

Before making any changes to certificates, ensure you have taken proper snapshots of your SSO domain. This means that you must shut down all vCenters or PSCs that are in the SSO domain at the same time, then snapshot them, and power them on again.  If you need to revert to one of these snapshots, shut all the nodes down, and revert all nodes to the snapshot. Failure to perform these steps will lead to replication problems across the PSC databases.
