UIM - Robot does not failover to remote/secondary HUB

book

Article ID: 34019

calendar_today

Updated On:

Products

DX Infrastructure Management NIMSOFT PROBES

Issue/Introduction

Both remote hubs (Main/Backup) are running in a multi NIC environment.

Example

Main hub
192.168.0.3 - UIM Hub IP.
10.0.0.3 - IP for robot communication.

Backup hub
192.168.0.4 - UIM Hub IP.
10.0.0.4 - IP for robot communication.

robot
10.0.0.101


Environment

Release:
Component: CAUIM

Resolution


If you use "Specified Hub (IP/name)," the robot attempts to resolve the hub name using UIM Hub IP. In this example below it does not work because the robot is not able to communicate to the UIM Hub IP.

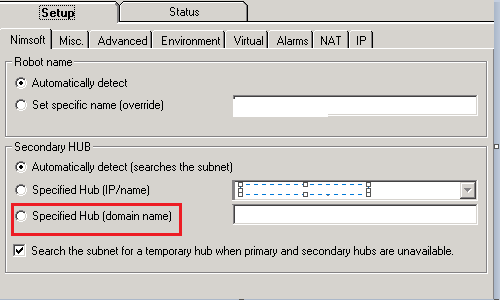

Please use "Specified Hub (domain name)" set "robot communicatable IP Address" or "robot resolvable hostname" so that the robot attempts to resolve the hub using the local network.

In this example, you can assign "10.0.0.4" or "robot resolvable hostname" for "Specified Hub (domain name)."




If the controller probe finds the "Specified Hub (domain name)" setting, it will override "Specified Hub (IP/Name)".

The configuration key in the robot.cfg is "secondary_hub_dns_name"
