Discovery Server issues related to performance / inaccuracy or exceeds 75% JVM RAM ( message in the discovery_server.log)

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

- Node count inaccuracy in OC

- discovery _server slowness / performance issues

- cannot perform any discovery of snmp devices in USM, although the snmp communication string given by device is already successfully tested by 3rd party MIB Browser

Errors in discovery log:
WARN com.nimsoft.discovery.server.probe.ProbeInitializer - Waiting initialize UDM. Retrying java.lang.IllegalArgumentException db.error/not-enough-memory datomic.objectCacheMax datomic.memoryIndexMax exceeds 75% JVM RAM node count off not accurate discover systems robots nodes inaccurate

Environment

Release:
Component: UIMDSC

Cause

Discovery memory too low

Resolution

Select the discovery_server probe.

Hold down the SHIFT key then rt-click to select Raw Configure.

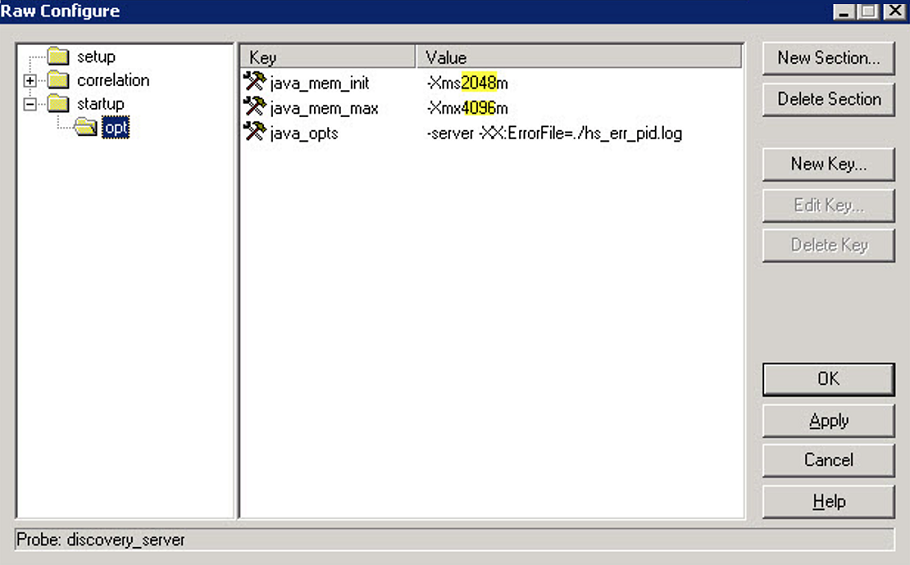

Select startup->opt section.

See startup->options java min and max. Set them to at least 2048 and 4096 respectively and cold start the discovery_server.

<Please see attached file for image>

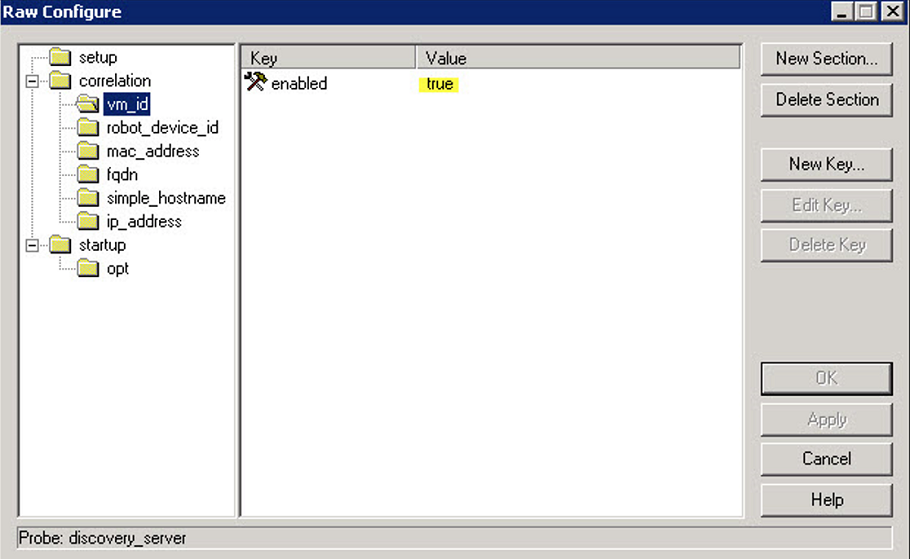

Also make sure the correlation settings are set to true, especially for vm_id and robot_device_id.

Then click Ok.

Cold start the discovery_server probe:
(Deactivate, then Activate it
