Publishing Distributed Firewall rules fails with error "Unmatched rules found in the configuration"

Products

• VMware NSX for vSphere

Issue/Introduction

Symptoms:

•  Publishing Distributed Firewall rules fails with the following error:

Publishing of Rule set has failed. Please see the tech support logs.
[Error Details: Unmatched rules found in the configuration.]

• In NSX Manager logs, vsm.log contains:

2018-07-16 12:06:00.350 CEST ERROR http-nio-127.0.0.1-7441-exec-38 FirewallFacadeImpl:161 - - [nsxv@6876 comp="nsx-manager" errorCode="MP100" subcomp="manager"] Exception :
com.vmware.vshield.app.firewall.exceptions.InvalidValueException: null

Note: The preceding log excerpts are only examples. Date, time, and environmental variables may vary depending on your environment.

Environment

VMware NSX for vSphere 6.4.x
VMware NSX for vSphere 6.2.x
VMware NSX for vSphere 6.3.x

Cause

When publishing (globally) a Distributed Firewall configuration after a section has been modified, some rules not belonging to the modified section may be incorrectly matched. For example, when modifying section with id 1003, rules from section with id 11003 are also matched). This may cause the publish operation to fail.

Resolution

There is currently no resolution.

Workaround:
Two workarounds are possible:

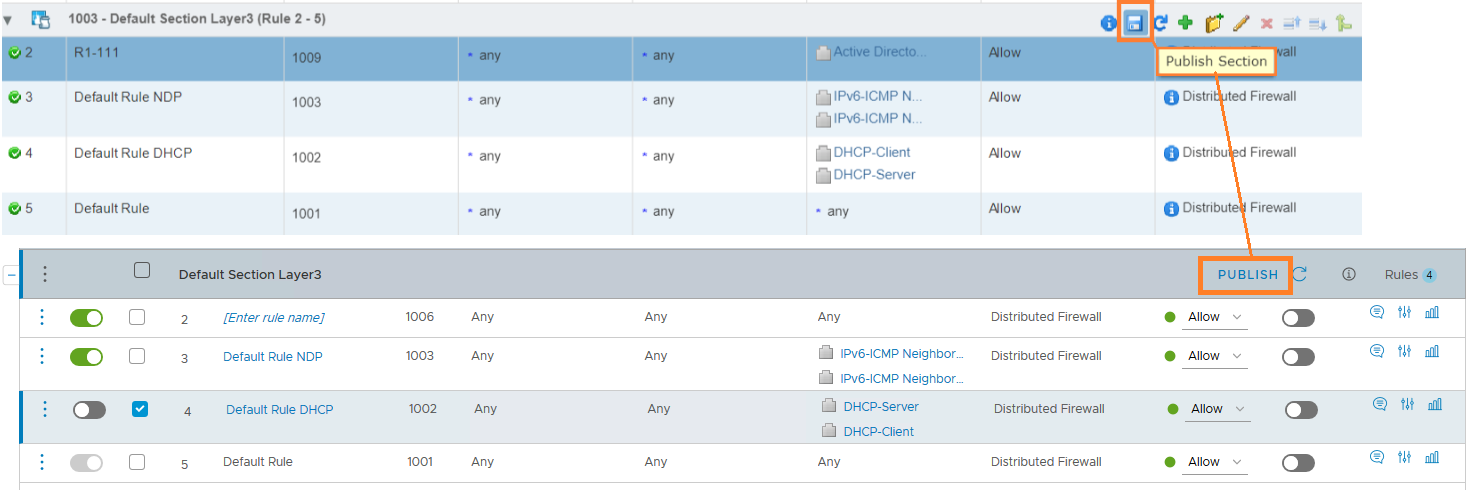

•  Publish the modified section, instead of the global configuration.

• Use the filter option to include only the modified rule(s) or section(s), and use the global publish. In comparison to the initial status, the incorrectly matched section is excluded from the publish operation, and will not block it.

Additional Information

Impact/Risks:
Distributed Firewall may fail to publish.
