Creating/Cloning/Migrating a VM fails with error: "No VASA Provider for schema namespace (VSAN) found"
search cancel

Creating/Cloning/Migrating a VM fails with error: "No VASA Provider for schema namespace (VSAN) found"

book

Article ID: 326993

calendar_today

Updated On:

Products

VMware vCenter Server

Issue/Introduction

Symptoms:

  • Unable to create new virtual machine or create a virtual machine from a template.

  • In the vSphere Web client, you will not see any vSAN storage provider.

  • You will see error similar to:

A general system error occurred: PBM error occurred during PreCreateCheckCallback: pbm.fault;

No VASA Provider for schema namespace (VSAN) found

  • VM migration fails with such error,

A general system error occurred: PBM error occurred during PreMigrateCheckCallback: Fault cause: pbm.faultPBMFault;

No VASA Provider for schema namespace (VSAN) found

  • vSAN Storage Provider fails to synchronize and show error as below:

  • In some cases, you can see the vSAN storage provider but with an unknown status and on attempting to perform a synchronize of the vSAN storage provider, it would fail with a "Rescan" error.


Note: The preceding log excerpts are only examples. Date, time, and environmental variables may vary depending on your environment.



Environment

VMware vCenter Server 8.x
VMware vCenter Server 7.x


Cause

This issue occurs  when vCenter Server storage provider service (SPS) can not detect any vSAN storage provider.

The vSAN storage policy is inherited from the vSAN-Health service plugin in vCenter.



The issue can occurs if vmware-vsan-health service is not running, or was started prior to healthy SPS service.



Resolution

To work around this issue, you have the following options.

  • Initiate synchronizing vSAN storage provider by clicking the icon for synchronization in the page:
vCenter Server > Configure > Storage Providers
  • Make sure at least one host is working when starting vCenter Server.

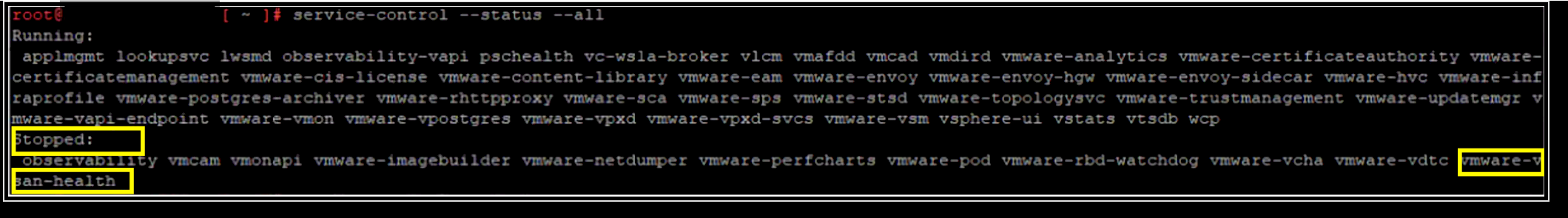

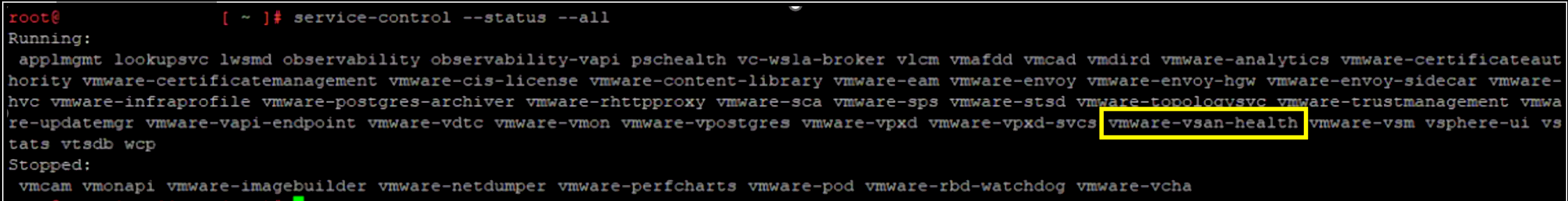

  • Ensure that the vmware-vsan-health service is up and running.

  • If vmware-vsan-health service is stopped, start it by the command "service-control --start vmware-vsan-health"
    • If vmware-vsan-health fails to start, please contact Broadcom Technical support and open a support request referencing this KB.

If vSAN health is running and not done so already. Attempt to reboot vCenter if possible, as this will ensure everything boots in proper order and flush out any lingering stale data (from memory or cached).
