DFW Rule Realization may fail when adding certain AppIDs to DFW Context Profile
search cancel

DFW Rule Realization may fail when adding certain AppIDs to DFW Context Profile

book

Article ID: 325160

calendar_today

Updated On:

Products

VMware Cloud on AWS VMware Cloud on Dell EMC

Issue/Introduction

Explain behavior observed when using an unsupported AppID.

Symptoms:
In a Datacenter running VMC version 1.20v1/v2/v3/v4 DFW rule realization may fail when adding the following AppIDs to DFW Context Profile
  • AMAZON_AWS
  • CORBA
  • IBM
  • MS_DS_SMBV3
  • MSSMS
  • NAGIOS
  • NETBIOSDG
  • NETBIOSSS
  • SNMP_TRAP
  • SNMPV2
  • SNMPV3
  • WEBAV


The following log lines will be printed in policy logs
<DATE>T<TIME>Z INFO com.vmware.nsx.management.policy.policyframework.realization.StatusTracker RealizationStateServiceImpl 9629 SYSTEM [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Returning current realization status 'Status = 'ERROR', Message = ''6' transport nodes have reported errors.', TNs = '[TN = '<TN>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<TN>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<TN>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<ID>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<TN>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<TN>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'.]', Pending Changes = '[]'.' for entity 'FirewallSection/<ID>'.

<DATE>T<TIME>Z INFO com.vmware.nsx.management.policy.policyframework.realization.StatusTracker StatusTrackerHelperService 9629 POLICY [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Updating GPRR /infra/realized-state/enforcement-points/vmc-enforcementpoint/firewalls/firewall-sections/cgw.URL_FILTER with publish status: ERROR
<DATE>T<TIME>Z INFO com.vmware.nsx.management.policy.policyframework.realization.StatusTracker StatusTrackerHelperService 9629 POLICY [nsx@6876 comp="nsx-manager" level="INFO" subcomp="manager"] Updated GPRR with Publish status ERROR.

Error message seen in Proton logs:
<DATE>T<TIME>Z  INFO http-nio-127.x.x.x-7440-exec-18 TransportNodeResponseHelper 4386 SYSTEM [nsx@6876 comp="nsx-manager" level="INFO" reqId="<reqID>f" subcomp="manager" username=email@vmware.com] Transport node realization summary for entity 'FirewallSection/ID'. ERROR = '[<ID>,<ID>]', IN_PROGRESS = '[]', UNKNOWN = '[]'.

20<DATE>T<TIME>Z  INFO http-nio-127.0.0.1-7440-exec-18 RealizationStateServiceImpl 4386 SYSTEM [nsx@6876 comp="nsx-manager" level="INFO" reqId="<reqID>" subcomp="manager" username=[email protected]] Returning current realization status 'Status = 'ERROR', Message = ''2' transport nodes have reported errors.', TNs = '[TN = 'TN', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'., TN = '<ID>', Status = 'ERROR', Message = '', Errors = '[Error Code = '1102', Error Message = '', Affected Entities = '[]'.]'.]', Pending Changes = '[]'.' for entity 'FirewallSection/ID'.

NSX UI will report a error in UI for rules having the unsupported AppID as shown below:

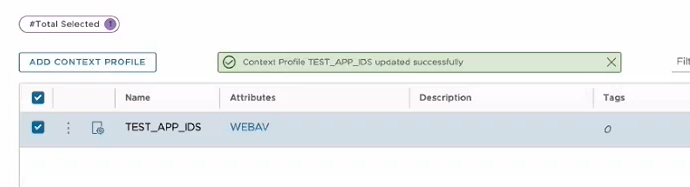

For example, add WEBAV attribute to CONTEXT PROFILE named TEST_APP_IDS.

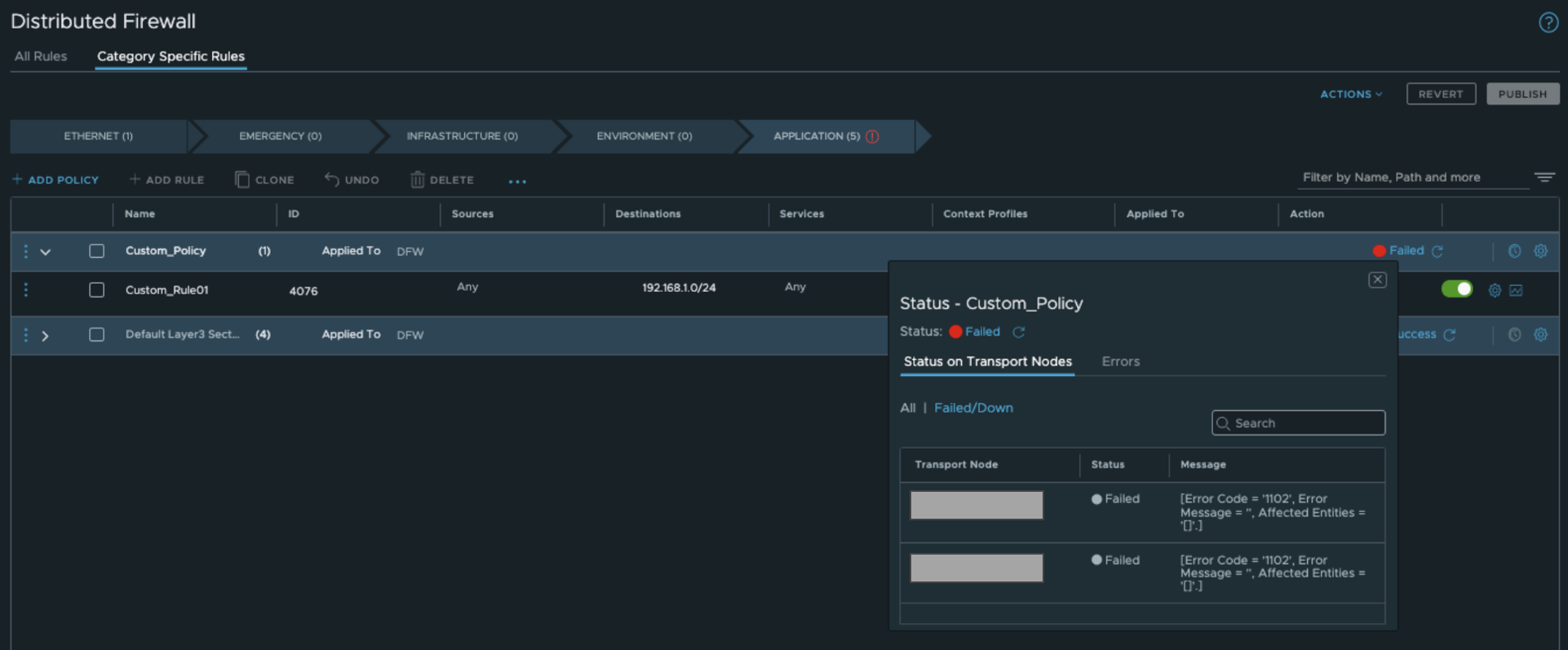

Apply this context profile to URL_FILTER in Distributed Firewall.  After published, it will finally show "failed" in the UI.


Additional details available in the UI:

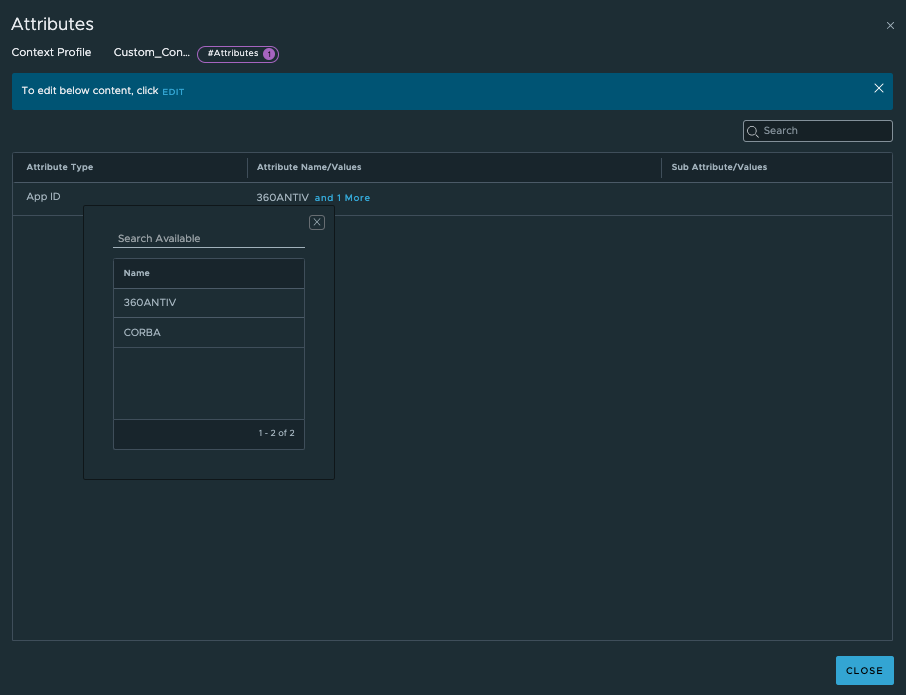

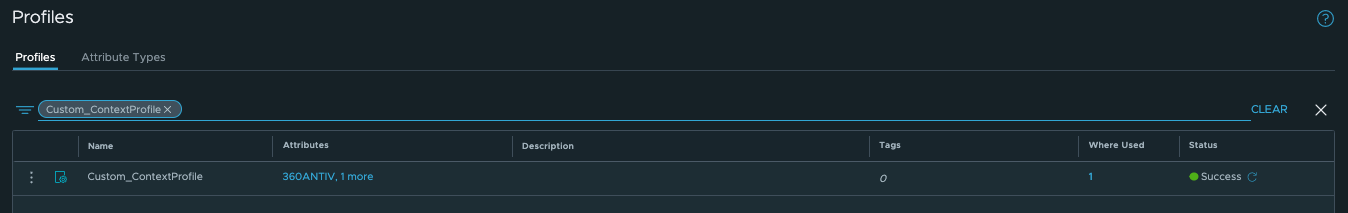

Context Profile Status:image.png






Cause

NSX-T 4.0.1 / 4.0.1.1 / 4.1  or VMC version 1.20v1/v2/v3/v4  does not support the above mentioned list of AppIDs mentioned under the section Symptoms.

Resolution

This is a known issue impacting VMC version 1.20v1/v2/v3/v4 . VMware will address this issue in upcoming NSX-T & VMC releases


Workaround:
Remove the conflicting AppID and re-publish
