AD users unable to view and edit DRS settings

Products

VMware vCenter Server

Issue/Introduction

Symptoms:

AD users unable to view and edit DRS settings
SSO user is able to view and edit DRS settings

Cause

Envoy logs -

2023-09-01T12:31:37.516Z - - HTTP/1.1 431 http1.headers_too_large DPE 0 31 0 - - 127.0.0.1:41252 127.0.0.1:1080 - -

2023-09-01T12:31:40.524Z info envoy[140411437238080] [Originator@6876 sub=Default] 2023-09-01T12:31:38.830Z - - HTTP/1.1 431 http1.headers_too_large DPE 0 31 0 - - 127.0.0.1:46396 127.0.0.1:1080 - -

2023-09-01T12:31:38.435Z info envoy[140411437238080] [Originator@6876 sub=Default] 2023-09-01T12:31:37.516Z - - HTTP/1.1 431 http1.headers_too_large DPE 0 31 0 - - 127.0.0.1:41252 127.0.0.1:1080 - -

2023-09-01T12:31:40.524Z info envoy[140411437238080] [Originator@6876 sub=Default] 2023-09-01T12:31:38.830Z - - HTTP/1.1 431 http1.headers_too_large DPE 0 31 0 - - 127.0.0.1:46396 127.0.0.1:1080 - -

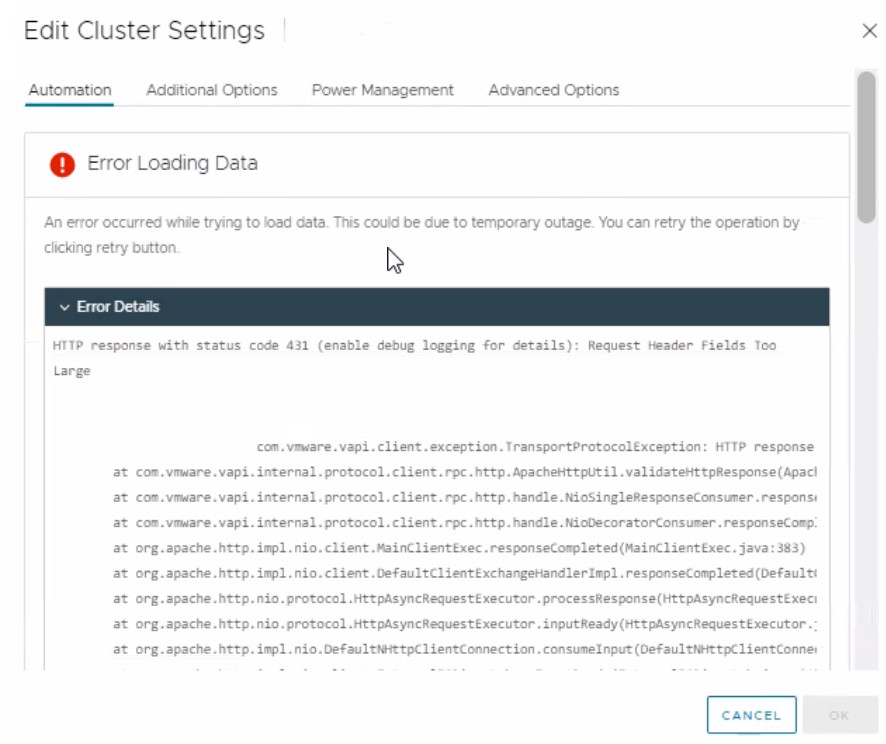

VCSA's envoy fails the request with HTTP status 431 as the request headers size has exceeded the configured/default 60KB limit.

Resolution

Increase the Request Headers Size Limit -

Take a snapshot of the vCenter.
Navigate to location - cd /etc/vmware-rhttpproxy/
Edit the file - vi config.xml
Search for the tag - <envoy>
Add/Edit below tag:

<http>

</http>

Restart the rhttpproxy service - service-control --restart rhttpproxy

Additional Information

Impact/Risks:

AD users wouldn't be able to view or edit DRS settings.
