Determining why an ESXi host was powered off or restarted

book

Article ID: 317245

calendar_today

Updated On:

Products

VMware vSphere ESXi VMware vSphere ESXi 7.0 VMware vSphere ESXi 8.0

Issue/Introduction

  • An ESXi host is disabled (grayed out) and displays as Not Responding.
  • An ESXi host is disabled (grayed out) and displays as Disconnected.
  • Clients connected to services running in one or more virtual machines are no longer accessible.
  • Applications dependent on services running in one or more virtual machines are reporting errors.
  • One or more virtual machines are no longer responding to network connections.
  • ESXi host appears to fail and restart looks like a reboot
  • ESXi host abruptly rebooted without any user intervention
  • ESXi host abruptly powered off without any user intervention
  • /var/log/hostd.log is showing:
    YYYY-MM-DDT:HH:MM:06.810Z In(###) Hostd[#######]: -->    eventTypeId = "esx.audit.host.poweroff.reason.unavailable",
    YYYY-MM-DDT:HH:MM.810Z In(###) Hostd[#######]:    -->    objectId = "ha-host",
    YYYY-MM-DDT:HH:MM.810Z In(###) Hostd[#######]:    -->    objectType = "vim.HostSystem",
    YYYY-MM-DDT:HH:MM.810Z In(###) Hostd[#######]:    --> }
    YYYY-MM-DDT:HH.810Z In(###) Hostd[#######]: [Originator@6876 sub=Vimsvc.ha-eventmgr] Event 38 : Host had been powered off. The power off was not the result of a kernel error, deliberate reboot, or shut down. This could indicate a hardware issue. Hardware may reboot abruptly due to power outages, faulty components, and heating issues. To investigate further, engage the hardware vendor.

Environment

VMware vSphere 7.x
VMware vSphere 8.x

Cause

If the Operating system (ESXi) is running into an issue, the default behavior is to crash the ESXi Host with a PSOD, where the Physical CPU will hand over the task to the ESXi to trigger a PSOD.
If the ESXi host has not triggered a PSOD this will need further investigation over the logs and server settings to isolate what triggered the incident.

The Servers abrupt reboot or shutdown without user intervention could be due to one or more of the following:
  • Hardware Issue(s)
  • BIOS settings with Automated server recovery
  • User Interaction
  • Physical Infrastructure related
  • Third party calls using API etc


Resolution

Note: This article assumes that the steps in the following KB have been completed

ESXi hosts do not respond and is grayed out in vCenter


Note:

By default, VMware ESXi logs do not persist upon a reboot.

If a VMware ESXi host experiences an abrupt reboot due to reasons other than a VMkernel error, the logs do not persist and there is no access to the logs prior to the reboot to determine the cause.
The steps in this section assume that the VMware ESXi host is configured to redirect the logs to a location where the logs persist.
For more information on how to configure a VMware ESXi host to redirect the logs to an alternate location, see Configuring syslog on ESXi

  • Following a series of steps to run through to investigate / narrow down the reason for abrupt shut down or reboot of a VMware ESXi host:
If the ESXi host is currently turned off, turn the host back on
Ensure that there are no Hardware lights that may indicate a Hardware issue. For more information, engage the Hardware vendor
Determine where the logs are being redirected to :
  1. Open vSphere Client
  2. Connect to the ESXi host or vCenter Server managing the ESXi host.
  3. Provide the credentials of an administrative user.
  4. Select the ESXi host in the Inventory.
  5. Click the Configuration tab.
  6. Click Advanced Settings.
In the Advanced Settings dialog, verify the location where the log files are being redirected:
Note:
If either of these settings are not properly configured, then logs do not persist upon a reboot and may limit the amount of information that can be gathered for troubleshooting.
Syslog > Local > Syslog.Local.DatastorePath contains the location of the logs if they are redirected to a VMFS volume.
Syslog > Remote > Syslog.Remote.Hostname contains the IP address or hostname of the syslog server that houses the logs for this host.

  • Navigate to the location of the log files, and based on the modified date of the files, open the log file using a preferred editor.

  • Determine if the ESXi host was deliberately restarted. If an ESXi host was restarted deliberately, the /var/run/log/hostd.log file will contain one or both of the following events (or similar ones):
    Hostd: [hh:mm:ss.284 27D13B90 info 'TaskManager'] Task Created : haTask-ha-host-vim.HostSystem.reboot-50
    DCUI: reboot

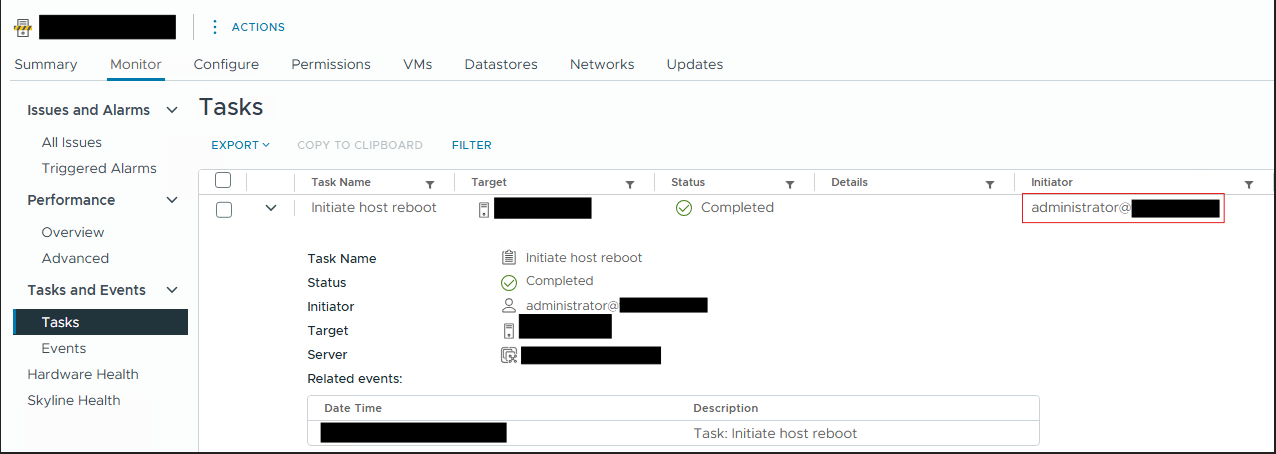

If the host is deliberately restarted, review the vCenter Server logs to identify any recent tasks that may have made the host to power off.

  • Determine if the ESXi host was deliberately shut down. If an ESXi server was shut down deliberately, it contains one or more of the following events (or similar ones):
    Hostd: [<YYYY-MM-DD> <time>.550 ######## info 'TaskManager'] Task Created : haTask-ha-host-vim.HostSystem.shutdown-78</time>
    or
    DCUI: poweroff

If the host is deliberately shut down, review the vCenter Server logs to identify any recent tasks that may have made the host to power off.

  • ESXi 5.5 and above may also include PowerButton Helper events in the vmkernel.log file, similar to:
    [YYYY-MM-DDTHH:MM:SS] cpu6:####)VMKAcpi: ###: In PowerButton Helper



  • ESXi 7.0 and above may indicate power button related events in vmkernel.log and hostd.log files, similar to:
    [YYYY-MM-DDTHH:MM:SS] cpu0:#######)VMKAcpi: ###: Power button pressed; requesting graceful shutdown and poweroff


    /var/log/hostd.log
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Hostsvc.HaHost] ACPI power event from the vmkernel
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Hostsvc.HaHost] Shutdown, force = true
[YYYY-MM-DDTHH:MM:SS] warning hostd[#######] [Originator@#### sub=Hostsvc.HaHost] Failed to find activation record, event user unknown.
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Vimsvc.ha-eventmgr] Event 679147 : Shut down of <ESXhostname> in ha-datacenter: Unknown
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=SysCommandPosix] ForkExec(/usr/lib/vmware/vob/bin/addvob) 214058855
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Vimsvc.TaskManager opID=<opID> user=vpxuser] Task Created : haTask--vim.event.EventHistoryCollector.readNext-########
[YYYY-MM-DDTHH:MM:SS] info hostd[#########] [Originator@#### sub=Vimsvc.TaskManager opID=<opID> user=vpxuser] Task Completed : haTask--vim.event.EventHistoryCollector.readNext-######## Status success
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Hostsvc.VmkVprobSource] VmkVprobSource::Post event: (vim.event.EventEx) {
--> key = 65,
--> chainId = -##########,
--> createdTime = "[YYYY-MM-DDTHH:MM:SS]",
--> userName = "",
--> host = (vim.event.HostEventArgument) {
--> name = "<ESX host name>",
--> host = 'vim.HostSystem:ha-host'
--> },
--> eventTypeId = "esx.audit.hostd.host.poweroff.reason",
--> arguments = (vmodl.KeyAnyValue) [
--> (vmodl.KeyAnyValue) {
--> key = "1",
--> value = " Last reboot reason is unknown. Please check ESXi and the BMC logs for further details. "
--> },
--> (vmodl.KeyAnyValue) {
--> key = "2",
--> value = "Unknown"
--> }
--> ],
--> objectId = "ha-host",
--> objectType = "vim.HostSystem",
--> }
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Vimsvc.ha-eventmgr] Event ###### : The host is being powered off through hostd. Reason for powering off: Last reboot reason is unknown. Please check ESXi and the BMC logs for further details. , User: Unknown. Please consult vSphere Documentation Center or follow the Ask VMware link for more information.
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Vimsvc.TaskManager opID=######## user=vpxuser] Task Created : haTask--vim.event.EventHistoryCollector.readNext-########
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=Vimsvc.TaskManager opID=######## user=vpxuser] Task Completed : haTask--vim.event.EventHistoryCollector.readNext-######## Status success
[YYYY-MM-DDTHH:MM:SS] info hostd[#######] [Originator@#### sub=SysCommandPosix] ForkExec(/sbin/poweroff) #########
The default value is "0" and if the value is different than 0, then ESXi reboots automatically after the purple screen.
NOTE:
There can be instances where the Server BIOS is also enabled with a feature called Automated Server recovery (ASR)
If the option is set to Reboot on the BIOS level, then the CPU will simply reboot the ESXi Host when there is crash being detected and this will not generate a PSOD on the ESXi Host
The ASR setting at the Server BIOS should disabled to trigger a PSOD ( HP Server vendor settings for ASR  & DELL Server vendor settings for ASR )

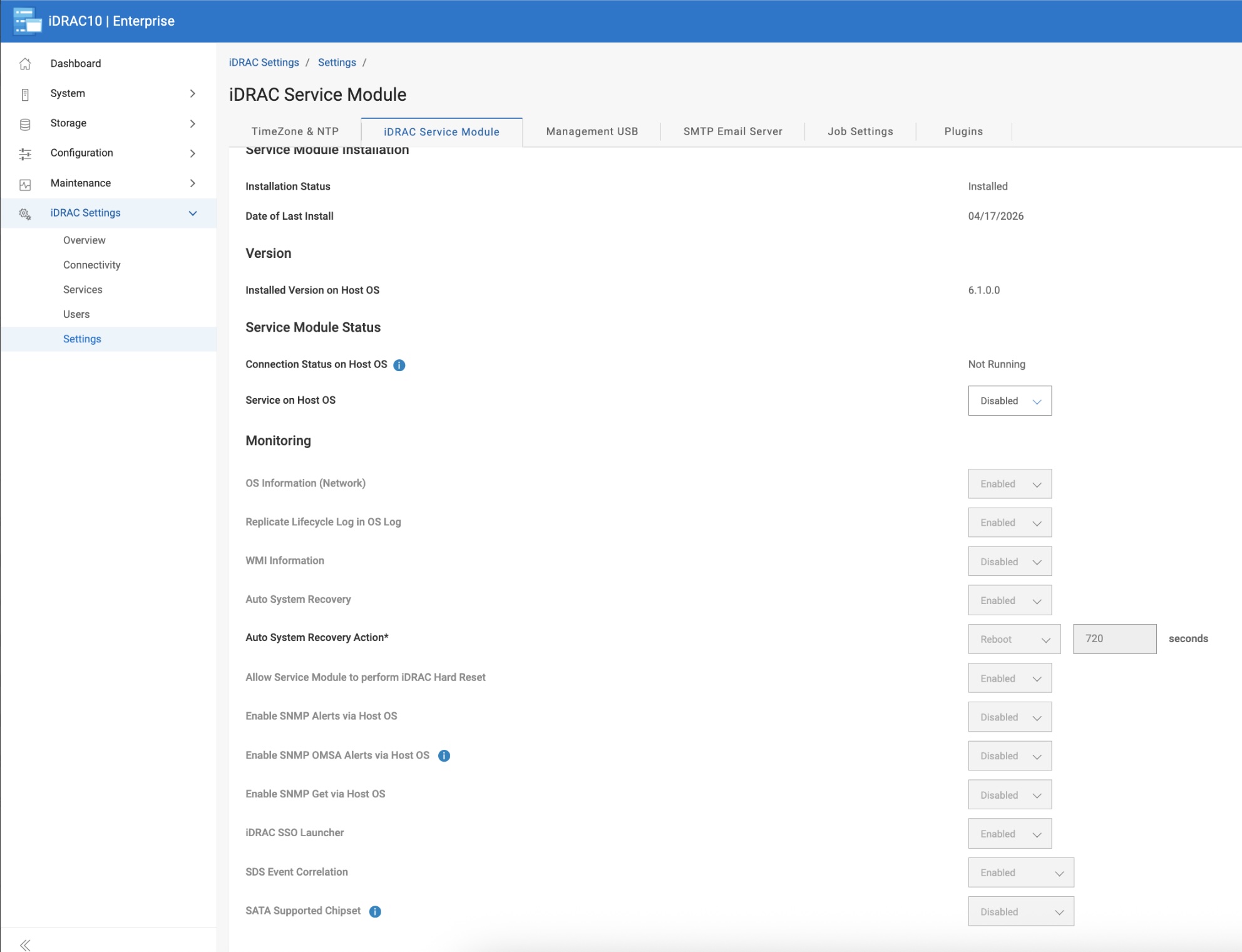

Steps to disable ASR in DELL iDRAC (Check with HW Vendor for latest steps on this procedure) :
1. Log on to the iDRAC with the Admin account
2. Click on "iDRAC Settings" tab
3. Click on the "Services" tab
4. Go to Automated System Recovery Agent
5. Change the settings to "Disable"


Note:

The default and Broadcom recommended setting is to leave the host in an unresponsive state with the purple diagnostic screen displayed on the console screen to aid in troubleshooting.
For more details: Configuring an ESXi host to restart after becoming unresponsive with a purple diagnostic screen
When the host is rebooted after a crash and if the core dump was successful, the /var/log/vmksummary.log shows that a core dump is found.

For example:
<YYYY-MM-DD>T<time>Z bootstop: Host has booted
<YYYY-MM-DD>T<time>Z bootstop: file core dump found</time></time>



Note:

This information does not necessarily means that ESXi restarted automatically but gives an indication when ESXi crashed.
  • If the VMware ESXi host experiences an outage that is not the result of a kernel error, deliberate reboot, or shut down, then the physical hardware may have abruptly restarted on its own
Hardware may reboot abruptly due to power outages, faulty components, and heating issues. To investigate further, engage the hardware vendor.
Alternatively, if an Administrator has physically turned off or restarted the physical hardware because the console is not responding to user interaction,
  • Direct Web-Client to VC and reboot from GUI, the below messages are seen in /var/log/hostd.log
    [YYYY-MM-DDTHH:MM:SS] In(###) Hostd[######]: [Originator@#### sub=Vimsvc.TaskManager opID=####-####:####-#### sid=######## user=vpxuser:####-####] Task Created : haTask-ha-host-vim.HostSystem.reboot-##########
    [YYYY-MM-DDTHH:MM:SS] In(###) Hostd[######]: -->    eventTypeId = "esx.audit.hostd.host.reboot.reason",
    [YYYY-MM-DDTHH:MM:SS] In(###) Hostd[######]: -->          value = "The host is being rebooted through hostd."
    [YYYY-MM-DDTHH:MM:SS] In(###) Hostd[######]: [Originator@#### sub=Vimsvc.ha-eventmgr] Event 7142 : The host is being rebooted through hostd. Reason for reboot: The host is being rebooted through hostd., User: vpxuser:<vCenter admin user>.


  • Direct Web-Client to host and shutdown from GUI  the below messages are seen in /var/log/hostd.log
    [YYYY-MM-DDTHH:MM:SS] info hostd[######] [Originator@#### sub=Vimsvc.TaskManager opID=####-#### user=####-####] Task Created : haTask-ha-host-vim.HostSystem.shutdown-##########
    -->       obj = 'vim.Task:haTask-ha-host-vim.HostSystem.shutdown-##########',
    -->    object = 'vim.Task:haTask-ha-host-vim.HostSystem.shutdown-##########',
    -->    eventTypeId = "esx.audit.host.stop.shutdown",
    [YYYY-MM-DDTHH:MM:SS] info hostd[######] [Originator@#### sub=Vimsvc.TaskManager opID=esxui-####-#### user=####] Task Completed : haTask-ha-host-vim.HostSystem.shutdown-########## Status success
    [YYYY-MM-DDTHH:MM:SS] info hostd[######] [Originator@#### sub=Solo.VmwareCLI] (vim.EsxCLI.system.shutdown) ha-cli-handler-system-shutdown created
    [YYYY-MM-DDTHH:MM:SS] info hostd[######] [Originator@#### sub=Solo.VmwareCLI] CreateDynMoType (Type vim.EsxCLI.system.shutdown) (Wsdl VimEsxCLIsystemshutdown) (Version vim.version.version5).
