TCO On initial provisioning, Elasticsearch Node does not meet the minimum requirements , how to increase the drive size

Products

• VMware Telco Cloud Operations

Issue/Introduction

Provide steps to allow the customer to increase the disk drive size to meet the requirements for TCO deployment for Elasticsearch

Symptoms:
On initial provisioning, Elasticsearch Node does not meet the minimum requirements

Cause

The TCO  default for var partition set to 100 GB and Elastic Search requires more disk space.

Resolution

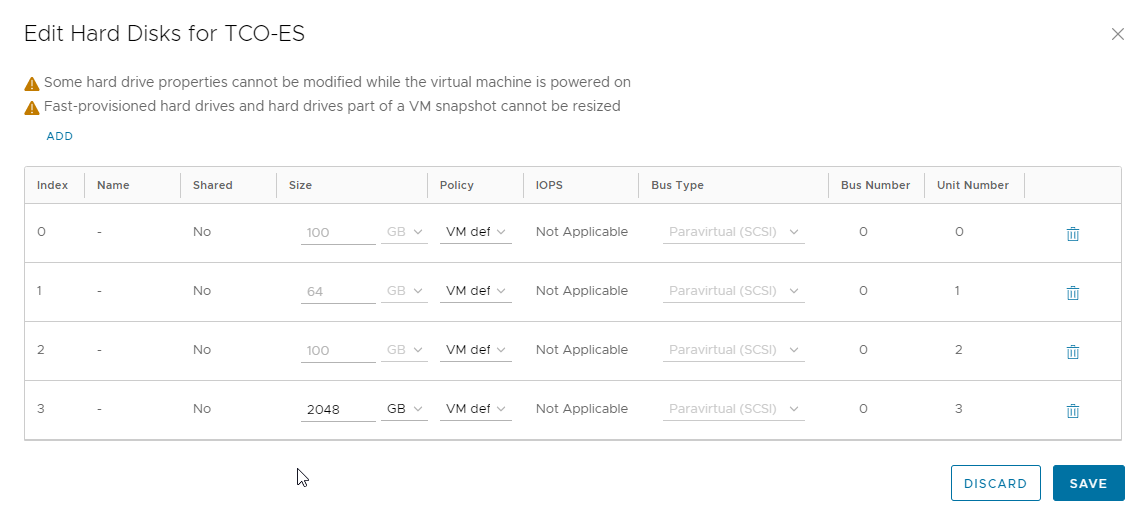

Create a new hard drive volume(s) within ESXI to the Elasticsearch node vm with the necessary sizes needed, ie 2048 GB.

Total volume size can be 1 or multiple disks that add up to the required storage requirement needed.

SSH to the ElasticSearch node as root user

You should be at the command prompt [root@vmware-photon-os ~]#

Show list of physical volumes
Type pvdisplay

Create a physical volume for each disk allocated in the previous step.
Type pvcreate /dev/sdd

If more more that one additional disk was added, repeat the step incrementing the volume with /dev/sdc, /dev/sde, etc.

Add the newly created physical volumes to the /VG_var volume group
at the command prompt [root@vmware-photon-os ~]#

Type vgextend VG_var /dev/sdd

You should expect the following response:
  Volume group "VG_var" successfully extended

If more more that one additional disk was added, repeat the step incrementing the volume with /dev/sdc, /dev/sde, etc.

Extend the VG_var/LV_var logical volume
[root@vmware-photon-os ~]#

Type lvm lvextend -l +100%FREE /dev/VG_var/LV_var

You should expect the following response:
Size of logical volume VG_var/LV_var changed from 88.00 GiB (22528 extents) to <1.09 TiB (284671 extents).
  Logical volume VG_var/LV_var successfully resized.

Make the extended space available to the OS

[root@vmware-photon-os ~]#

Type xfs_growfs /var

You should expect  a similar response:

meta-data=/dev/mapper/VG_var-LV_var isize=512    agcount=4, agsize=5767168 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=1, sparse=1, rmapbt=0
         =                       reflink=0
data     =                       bsize=4096   blocks=23068672, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0, ftype=1
log      =internal log           bsize=4096   blocks=11264, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 23068672 to 291503104

Additional Information

Impact/Risks:
TCO will not be able to function properly.
