[VMC] Previous IP address of VM displayed in inventory of Management/Compute groups

Products

• VMware Cloud on AWS

Issue/Introduction

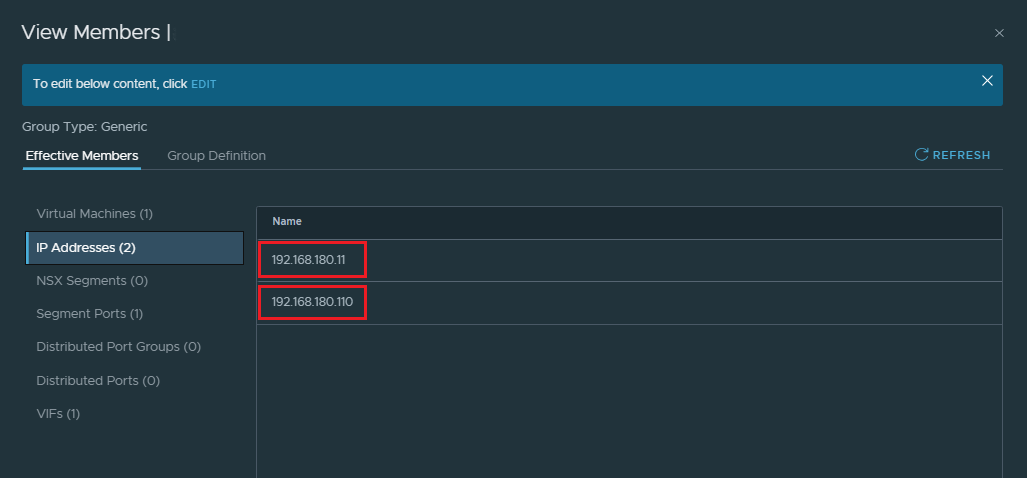

When adding a virtual machine to Management/Compute groups the previously assigned IP address of the virtual machine is displayed in the inventory of the groups as a member.

Environment

VMC on AWS

Cause

A segment with SpoofGuard approves a new IP address in TOFU (Trust On First Use) mode and retains IP addresses internally as a trusted one.

Resolution

• This is expected behavior in NSX.
• There is no option to disable Trust On First Use (TOFU) in a VMC on AWS SDDC.
• As a workaround:
  • Move the vNIC of the virtual machine from one segment to another segment.
  • Then, move the vNIC of the virtual machine back to the original segment.
  • This will cause the virtual machine to lose network connectivity temporarily.

Additional Information

• Understanding IP Discovery Segment Profile
• Virtual machines in an NSX for vSphere firewall security group retain IP addresses after power-cycle or have been assigned a new vnic
