Change SystemEDGE Listening Port Without Reinstalling

Products

• SystemEDGE Agent
• SystemEDGE Agent

Issue/Introduction

We would like to change the port that SystemEDGE was originally installed with to a different port without uninstalling/reinstalling the agent.

Environment

SystemEDGE 6.x

Resolution

Windows:

1. Stop the CA SystemEDGE Service (From services.msc OR net stop sysedge)


2. Delete port# folder from



   C:\Users\Public\CA\SystemEDGE\port#




3. Edit X:\Program Files\CA\SystemEDGE\config\sysedge.cf by changing default_port value to the new desired port#. For Example:



   default_port 1691




4. In regedit, change the port number contained within the following value:

   HKEY_LOCAL_MACHINE\SOFTWARE\ComputerAssociates\SystemEDGE\DefaultPort

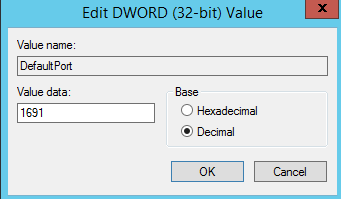

   Be sure to select "Decimal" from within regedit:





5. Start the CA SystemEDGE Service (From services.msc OR net start sysedge)



6. A new port# folder will be created that reflects new listening port in the locations noted above.



UNIX/Linux:

1. Stop CA SystemEDGE: /opt/CA/SystemEDGE/bin/sysedgectl stop


2. Delete port# folder from /opt/CA/SystemEDGE/config/port#


3. Edit /opt/CA/SystemEDGE/config/sysedge.cf by changing default_port value to the new desired port#:

   sed -i s/1691/161/ /opt/CA/SystemEDGE/config/sysedge.cf

Where 1691 is the original port and 161 is the desired new port.



4. Edit /opt/CA/SystemEDGE/bin/sysedgectl to change the DEFAULT_PORT value to the new desired port#

   sed -i s/1691/161/ /opt/CA/SystemEDGE/bin/sysedgectl

Where 1691 is the original port and 161 is the desired new port.



5. Start SystemEDGE: /opt/CA/SystemEDGE/bin/sysedgectl start


6. A new port# folder will be created that reflects new listening port in the locations noted above.

Additional Information

* File locations noted are the defaults. File locations may differ slightly based on configuration

* For UNIX/Linux, the "sed" syntax for replacing the port number is as follows: "sed -i s/{OLD PORT}/{DESIRED PORT}/ {FILE}" - be sure to replace {OLD PORT}, {DESIRED PORT} and {FILE} accordingly.
