NSX-V to NSX-T migration coordinator reports "Error: Source NSX credentials are invalid."
search cancel

NSX-V to NSX-T migration coordinator reports "Error: Source NSX credentials are invalid."

book

Article ID: 311835

calendar_today

Updated On:

Products

VMware NSX VMware NSX

Issue/Introduction

  • NSX-V to NSX-T migration coordinator reports the error below while authenticating to NSX-V manager
    "Error: Source NSX credentials are invalid. (Error code: 30714)"



  • Entries similar to the below can be observed in /var/log/syslog on the NSX Manager:
    NSX 11406 SYSTEM [nsx@6876 comp="nsx-manager" level="INFO" subcomp="migration-coordinator"] Error in API /migration-coordinator/api/v1/migration/setup caused by exception com.vmware.nsx.management.upgrade.exceptions.NotReadyForUpgradeException:  {"moduleName":"migration-coordinator","errorCode":30714,"errorMessage":"Source NSX credentials are invalid."}

    NSX 11406 SYSTEM [nsx@6876 audit="true" comp="nsx-manager" level="INFO" subcomp="migration-coordinator"] UserName:'admin' ModuleName:'migration-coordinator' Operation:'PUT@/api/v1/migration/setup' Operation status: 'failure' Error: Source NSX credentials are invalid.

Environment

VMware NSX-T Data Center

Cause

This is caused by the incorrect credentials being used to log into vCenter via the NSX-T GUI.

Resolution

This is a condition that may occur in a VMware NSX environment.

Workaround:

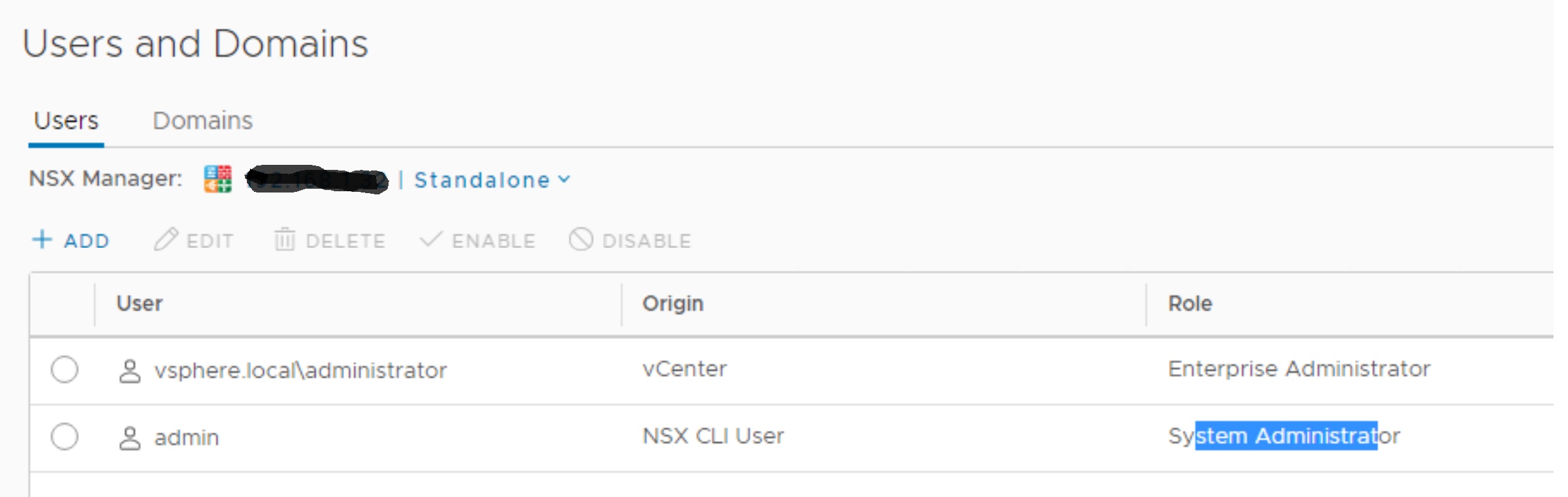

  1. Go to vCenter > Menu > Networking and Security > Users and Domains > Users tab.
  2. Check your "admin" account and verify whether the Origin is set to "vCenter" or "NSX CLI User".

The default should be "NSX CLI User".



Note:

If it is set to vCenter, then try using vsphere.local\administrator ([email protected]) account instead of admin
