CPI Unable to Upload file to an Encrypted vSphere Datastore

Products

• VMware Tanzu Application Service for VMs

Issue/Introduction

Product errands fail when uploading a file to a datastore that is encrypted. The error message below can be found in the task debug logs.

Creating missing vms: bosh-health-check/0b4b056e-37b2-478a-862a-706c207f8254 (0) (00:00:56)
L Error: Unknown CPI error 'Unknown' with message 'Could not transfer file 'https://paisasvc02.r1-core.r1.aig.net/folder/vm-a3f5f538-8d66-4910-9dd0-dc7a9adb23ed/env.json?dcPath=AM1_VC02&dsName=vsanDatastore_AM1_VC02_CORE_AZ1', received status code '500'' in 'create_vm' CPI method (CPI request ID: 'cpi-226444')
Task 148951 | 15:01:46 | Error: Unknown CPI error 'Unknown' with message 'Could not transfer file 'https://paisasvc02.r1-core.r1.aig.net/folder/vm-a3f5f538-8d66-4910-9dd0-dc7a9adb23ed/env.json?dcPath=AM1_VC02&dsName=vsanDatastore_AM1_VC02_CORE_AZ1', received status code '500'' in 'create_vm' CPI method (CPI request ID: 'cpi-226444')

In the CPI activity logs in vcenter, you will see the below error message referencing Cryptographic Access.


The session 'xx-xx-xx' does not have privilege Cryptographer.Access on entity [datastore]

Environment

Product Version: 2.8

Resolution

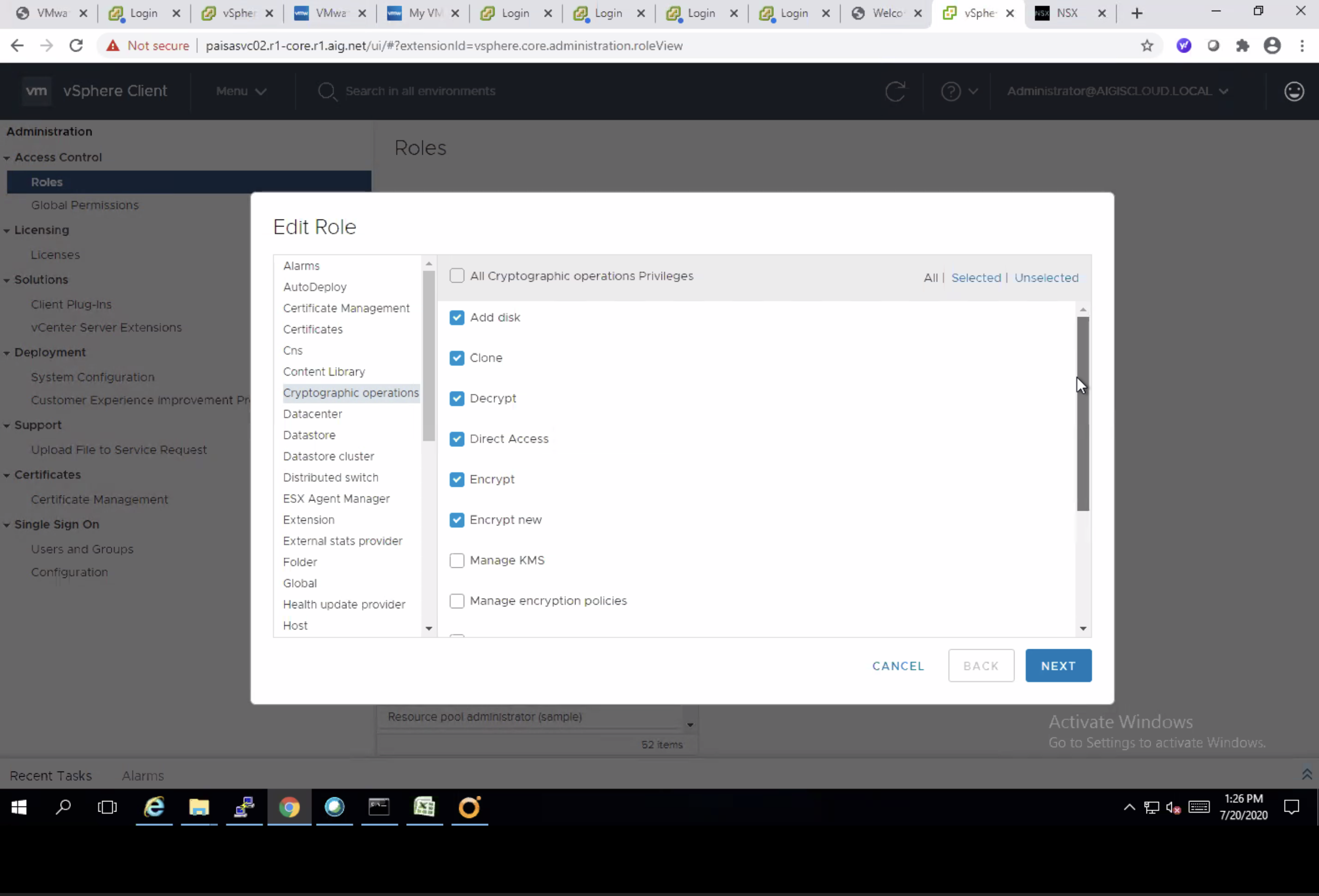

In Vcenter, navigate to Access Control > Roles > Edit Roles > Cryptographic Operations and add the below permissions.

• Cryptographic operations.Direct Access
• Cryptographic operations.Add disk
• Cryptographic operations.Clone
• Cryptographic operations.Decrypt
• Cryptographic operations.Encrypt
• Cryptographic operations.Encrypt new
• Cryptographic operations.Migrate
• Cryptographic operations.Recrypt
• Cryptographic operations.Register VM
