No Metrics seen in the Pivotal Cloud Foundry Metrics UI with the Charts Stuck at "loading data"
search cancel

No Metrics seen in the Pivotal Cloud Foundry Metrics UI with the Charts Stuck at "loading data"

book

Article ID: 293487

calendar_today

Updated On:

Products

Operations Manager

Issue/Introduction

Symptoms:

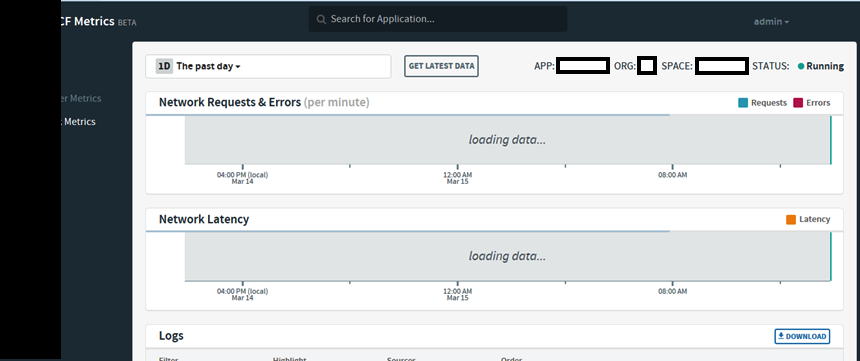

There is a loading data message, and the metrics never populate. See example below:



Environment


Cause

One possible cause for this issue is that the worker-app-dev queries MySQL to retrieve metrics and events for the period specified in the UI. There are times when the worker-app-dev has not been able to subscribe to the updated job channels on Redis. Typically, this occurs when a change has been made to the Pivotal Cloud Foundry Metrics deployment.



Resolution

In order to get past this particular issue, perform the following steps:

  1. Log into your CF CLI<
  2. Run cf target -o system -s metrics-v1-2
  3. Run cf restart worker-app-dev
  4. Once worker-app-dev has restarted, refresh the Pivotal Cloud Foundry Metrics UI, and Metrics should appear again
