App Control: How to Add an Identifier Longer Than the WS1 String Limit for Mac Agent 8.7+

Products

• Carbon Black App Control (formerly Cb Protection)

Issue/Introduction

How to Add an Identifier Longer Than the WS1 UI String Limit for Mac Agent 8.7+

Environment

• App Control Mac Agent: 8.7 and Higher
• VMware Workspace One

Resolution

1. Edit the Profile and add a custom Payload
2. In the Custom Settings menu, add the following XML

   <dict>
           <key>Services</key>
           <dict>
             <key>SystemPolicyAllFiles</key>
             <array>
               <dict>
                 <key>Identifier</key>
                 <string>com.vmware.carbonblack.appc-es-loader.appc-es-extension</string>
                 <key>IdentifierType</key>
                 <string>bundleID</string>
                 <key>CodeRequirement</key>
                 <string>identifier "com.vmware.carbonblack.appc-es-loader.appc-es-extension" and anchor apple generic and certificate 1[field.1.2.840.113635.100.6.2.6] /* exists */ and certificate leaf[field.1.2.840.113635.100.6.1.13] /* exists */ and certificate leaf[subject.OU] = "7AGZNQ2S2T"</string>
                 <key>StaticCode</key>
                 <false />
                 <key>Comment</key>
                 <string></string>
                 <key>Allowed</key>
                 <true />
               </dict>
             </array>
           </dict>
           <key>PayloadDisplayName</key>
           <string>PrivacyPreferences</string>
           <key>PayloadDescription</key>
           <string>PrivacyPreferencesSettings</string>
           <key>PayloadOrganization</key>
           <string></string>
           <key>PayloadType</key>
           <string>com.apple.TCC.configuration-profile-policy</string>
           <key>PayloadUUID</key>
           <string>d61f9f50-88ee-4139-a2e9-37b7d4f7ae71</string>
           <key>PayloadVersion</key>
           <integer>1</integer>
           <key>PayloadIdentifier</key>
           <string>1997a5db-ac7f-426a-a038-8c64c341cb4b.PrivacyPreferences</string>
      </dict>

3. Once applied, the XML sets the PrivacyPreferences payload as a Custom Setting

Additional Information

• In the particular case of App Control 8.7 where System Extensions were introduced, The payload for having full disk access for appc-es-extension exceeds the allowed limit.

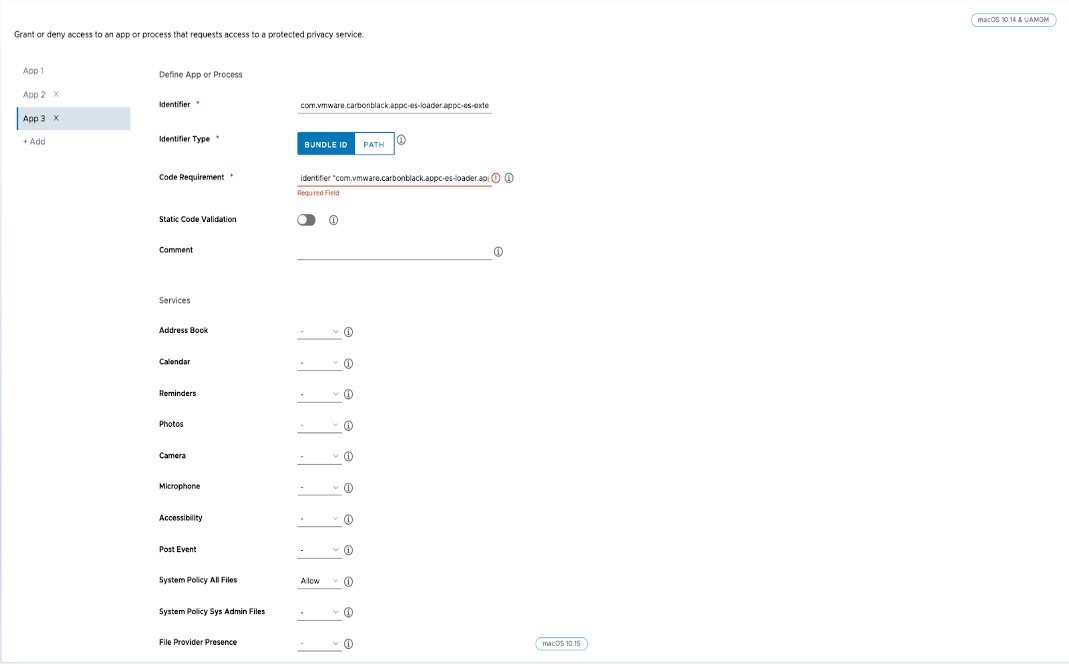

• The steps above, are an alternative way around applying the Policy Preferences payload, setting System Policy All Files to Allow, per the image below:
