Raise alerts with logmon if value in log exceeds a defined threshold
Article ID: 281538
Updated On:
Products
Issue/Introduction
How do I create an alert when a threshold is exceeded in a log monitored with logmon?
We have a log with a certain response time written in the last position in each line of the log. We would like to have an alarm when this value exceeds a certain threshold.
This article provides guidance and a real-life example of how to set up logmon to achieve this scope.
Environment
- DX UIM 20.4.x / 23.4
- logmon probe any version
Cause
- Guidance
Resolution
Requirement:
You have a log that looks like the one below where the last entry in each line is a "Response Time" in ms.
##.###.###.## - - [13/Feb/2024:13:54:45 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.034
##.###.###.## - - [13/Feb/2024:13:54:46 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.040
##.###.###.## - - [13/Feb/2024:13:53:40 +0100] "POST /<path>/<service> /HTTP/1.0" 200 183 3.061
##.###.###.## - - [13/Feb/2024:13:53:46 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.042
You want an alarm where the last value in each line exceeds the value of "3.000"
Steps to Follow:
1. In the scenario we have the following log which updates new lines at every log interval.
##.###.###.## - - [13/Feb/2024:13:54:45 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.034
##.###.###.## - - [13/Feb/2024:13:54:46 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.040
##.###.###.## - - [13/Feb/2024:13:53:40 +0100] "POST /<path>/<service> /HTTP/1.0" 200 183 3.061
##.###.###.## - - [13/Feb/2024:13:53:46 +0100] "POST /<path>/<service> HTTP/1.0" 200 45263 0.042
2. Create a profile for this log file with logmon, create an update type of profile and create 1 watcher.
This regex below will match/capture the entire number, including the integer part, and then verify if it's greater than 3.000.
Watcher should include the following REGEX inclosed into "/<regex>/"
.* ([3-9]\.\d{3}|[4-9]\d{2,}\.\d{3}|[1-9]\d{3,})$
Here you can verify the Regex: regex101: build, test, and debug regex
Create an "update" type of profile and set the file to monitor:
Create the watcher:
with the following Regex:
/.* ([3-9]\.\d{3}|[4-9]\d{2,}\.\d{3}|[1-9]\d{3,})$/
And Test if it matches your log:
3. if there is match in the log (exceeding last numeric number by 3000) an alarm is raised. Profiles can be tested:
4. If needed, you can create a variable so you can extract the ResponseTime value:

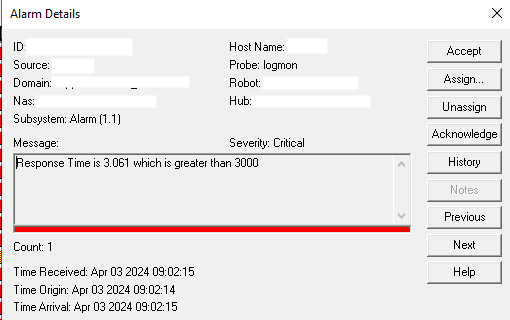

And use the value in an alarm.
For Reference this is logmon.cfg extract from this test:
<Response time>
active = yes
interval = 5 sec
scanfile = C:\<file_to_monitor>.txt
schedules =
fileencoding =
scanmode = updates
alarm = yes
qos = yes
message = no
subject =
user =
reccur_directory = no
reccur_directory_level = 10
resetFile = no
initialfileptr = 2
resumefileptr = 4
command_timeout_active = no
command_timeout =
command_severity = 2
command_timeout_alarm = 0
alarmFOpenFail = no
clearFOpenFailRestart = no
monitor_exit_code = No
max_alarm_sev = 5
max_alarms = 44
max_alarm_msg =
password =
<watchers>
<Response Time Watcher>
active = yes
match = /.* ([3-9]\.\d{3}|[4-9]\d{2,}\.\d{3}|[1-9]\d{3,})$/
level = critical
subsystemid =
message = Response Time is ${ResponseTime} which is greater than 3000
i18n_token =
restrict =
expect = no
abort = no
sendclear = no
count = no
separator =
suppid =
source = ${var}
target =
qos = AD_SERVER
runcommandonmatch = no
alarm_on_first_match = no
commandexecutable =
commandarguments =
pattern_threshold_severity = information
pattern_threshold_message =
timeout = 1
count_operator = eq
count_threshold =
pattern_threshold =
expect_message =
expect_level =
regexfromexternalfile = no
patternfilepath =
token =
variable_threshold =
variable_threshold_message = exceeeded
variable_threshold_severity = information
variable_threshold_supp = exceeeded
<variables>
<ResponseTime>
definition = $1
operator = re
threshold = /.* ([3-9]\.\d{3}|[4-9]\d{2,}\.\d{3}|[1-9]\d{3,})$/
</ResponseTime>
</variables>
</Response Time Watcher>
</watchers>
</Response time>
Additional Information
Please note that Broadcom Technical Support does not develop or maintain Regular Expressions or customizations so this is Example Material.
Official Documentation includes logmon Hints and Examples (broadcom.com)
