Creating a new account equivalent to Spectrum Install Owner account

Products

• Network Observability
• Spectrum

Issue/Introduction

This article provides a way of creating a new account equivalent to the Spectrum Install Owner account and some caveats.

Always use the Spectrum Install Owner account when managing the Spectrum application (whenever it is possible).

Environment

Spectrum:  Any version in Windows platform only

Resolution

Two accounts used in this scenario:

spectrum - Spectrum Install Owner account
specadmin - Equivalent account to spectrum

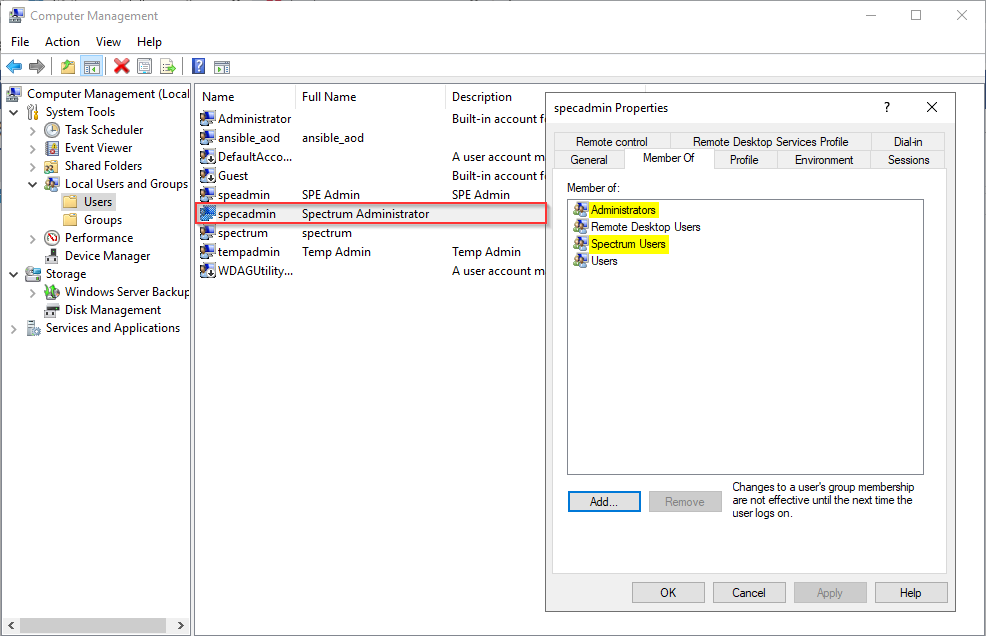

The "specadmin" account (the equivalent Windows account) must belong to the following Local Groups:

• Administrators
• Spectrum Users
• Remote Desktop Users (used for Remote Desktop)

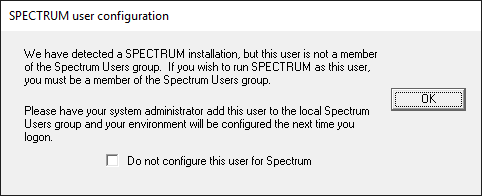

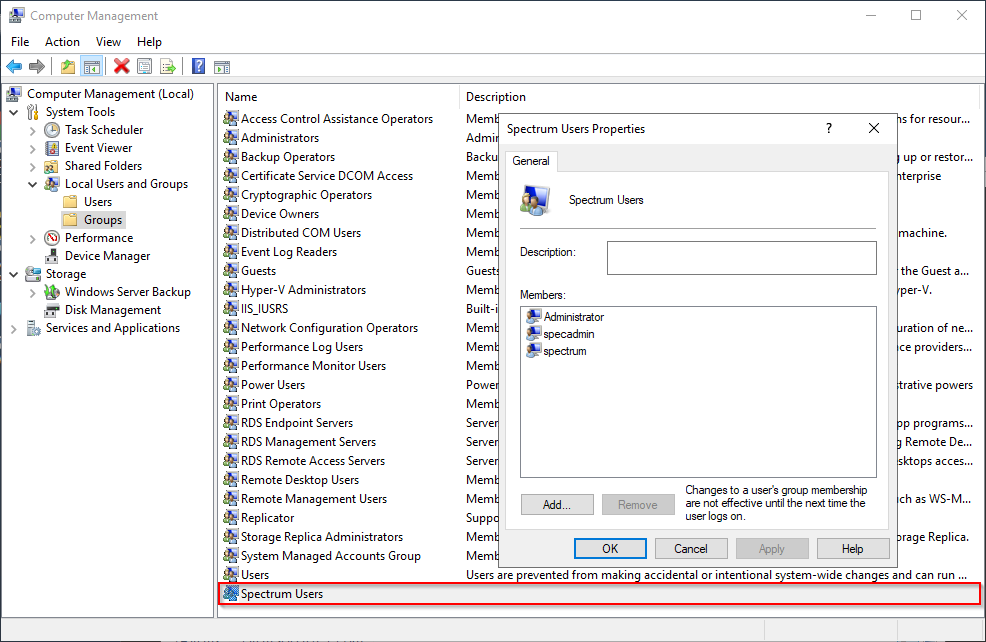

The specadmin account must belong to the local Spectrum Users and Administrators groups.

Note: The username in Windows is case-insensitive, but in Spectrum it is case-sensitive.

In Windows: spectrum / Spectrum / SPECTRUM is the same username

In Spectrum: spectrum / Spectrum / SPECTRUM are different usernames

• If the SpectroSERVER and Archive Manager processes are started by the spectrum account, only this account can stop those processes via SCP (Spectrum Control Panel), $SPECROOT/bin/stopSS.pl script, and Install Ticket ($SPECROOT/bin/cmdC.exe).

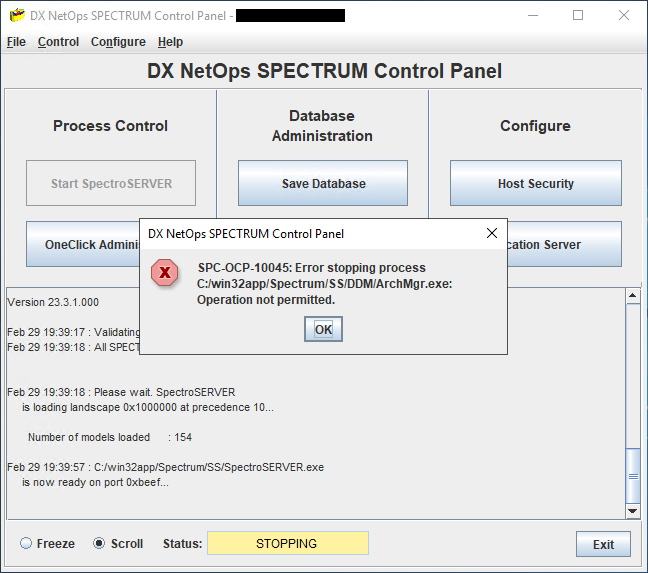

• SpectroSERVER and Archive Manager processes were started by the spectrum account. Logged in as specadmin (Windows).

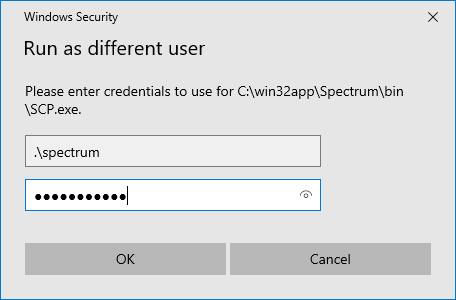

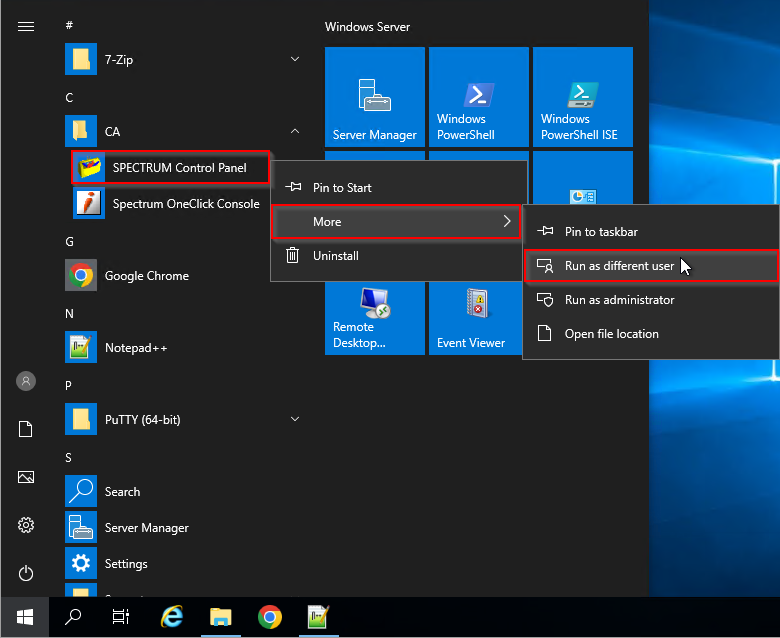

• Switch to the Spectrum Install Owner account (when possible), then the SpectroSERVER and Archive Manager processes can be stopped.




• Stopping the Spectrum Process Daemon will stop all processes managed by processd.
  Process stopping sequence by processd:



• If the SpectroSERVER and Archive Manager processes are started by the specadmin account, then both accounts (specadmin and spectrum) can stop those processes via SCP (Spectrum Control Panel), $SPECROOT/bin/stopSS.pl script, and Install Ticket ($SPECROOT/bin/cmdC.exe).

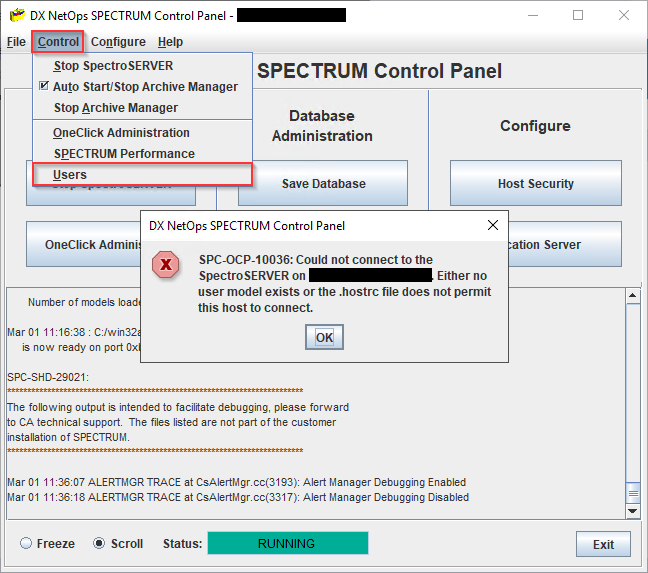

  The following error is displayed if the specadmin account is not created in Spectrum:

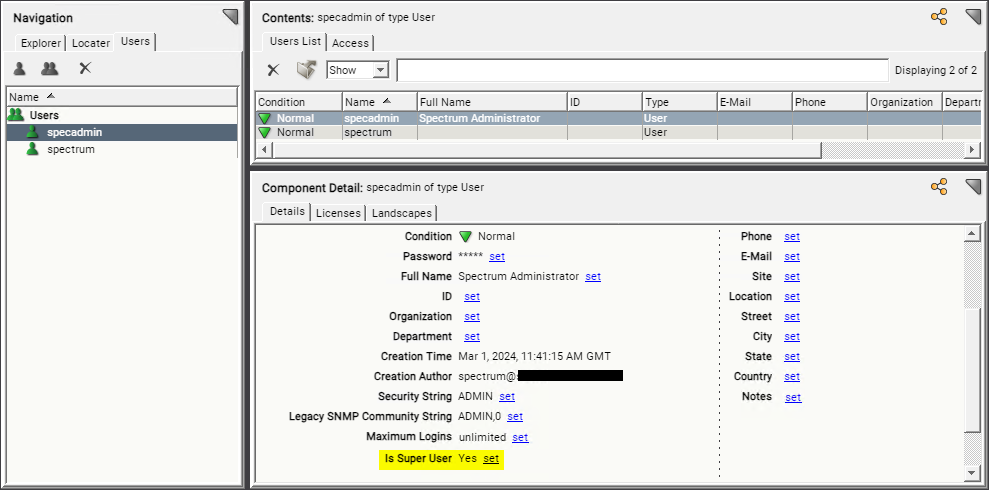

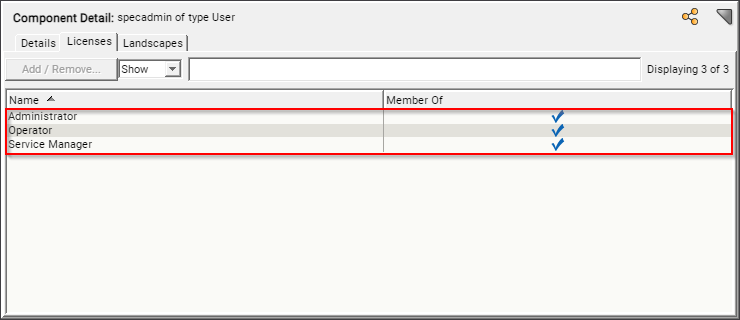

  The specadmin account must be created in Spectrum. Set it as Super User.




• specadmin account can start, stop, and restart the Spectrum Process Daemon (processd) service either via Windows services or $SPECROOT/lib/SDPM/processd.exe.
  specadmin account can run CLI ($SPECROOT/vnmsh)


• No issues running getSpectrumInfo.sh and perfCollector9 as specadmin



Additional Information

For your reference:

How can I start and stop processes that are running under processd in Spectrum?
https://knowledge.broadcom.com/external/article?articleId=41428
