Business rules on Project tiles are not honored for the 4 modules

Products

• Clarity PPM On Premise
• Clarity PPM SaaS

Issue/Introduction

The Projects tiles are always displaying the first four modules from blueprint without honoring the business rules.

Steps to Reproduce:

1. Login to Clarity New UI
2. Create a sub-object of project object
3. Create an access group and add few resources to the group.
4. Grant global Project Management - Tiles Navigate, Project Management - Navigate and view sub-object from step 2 access rights to the group
5. Make a copy of project blueprint
6. Configure the modules on blueprint to display the sub-object from step 2
7. Create and configure a channel (Link to any module in classic) on the same blueprint
8. Make sure that above two modules should be aligned as second and third module on blueprint

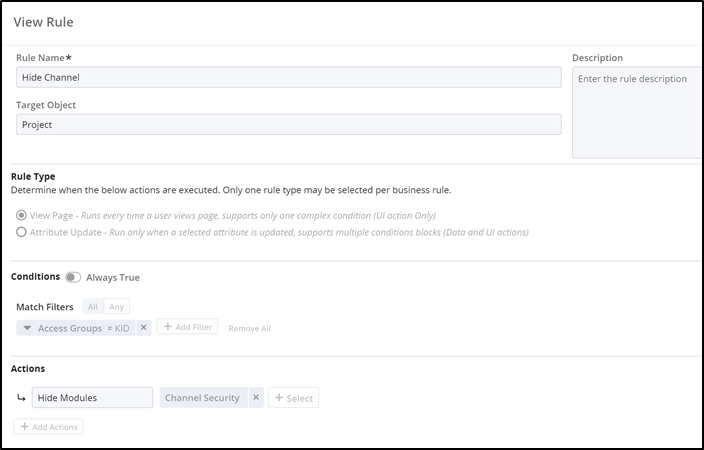

9. Create a business rule on blueprint to only display the modules from step 6 and step 7 when user is part of group created in step 3 (Refer screenshot below for example on business rule). The two modules should be hidden for everyone who are not part of the group.
10. Publish the blueprint
11. Map a project to the above blueprint from step 5
12. Login as any user who is not part of group from Step 3
13. Navigate to New UI project tiles and filter for project from step 11

Expected Results:
Sub-object and Channel modules ae not visible on tiles


Actual Results:
The first four modules from blueprint are displayed on project tile by default irrespective of the business rule. However clicking on the module takes to first tab on the project but the respective module is not visible inside project.

Environment

Version: 16.2.0

Cause

DE79632

Resolution

DE79632 is under review
